During the use of electric vehicles, the type of charging plug is a problem that can’t be ignored. There are obvious differences in charging plugs among EVs of different regions, brands, and models. This brings a lot of inconvenience to the charging of EVs. So, understanding the characteristics of various charging plugs and their compatibility is crucial to ensure the smooth charging of electric vehicles.

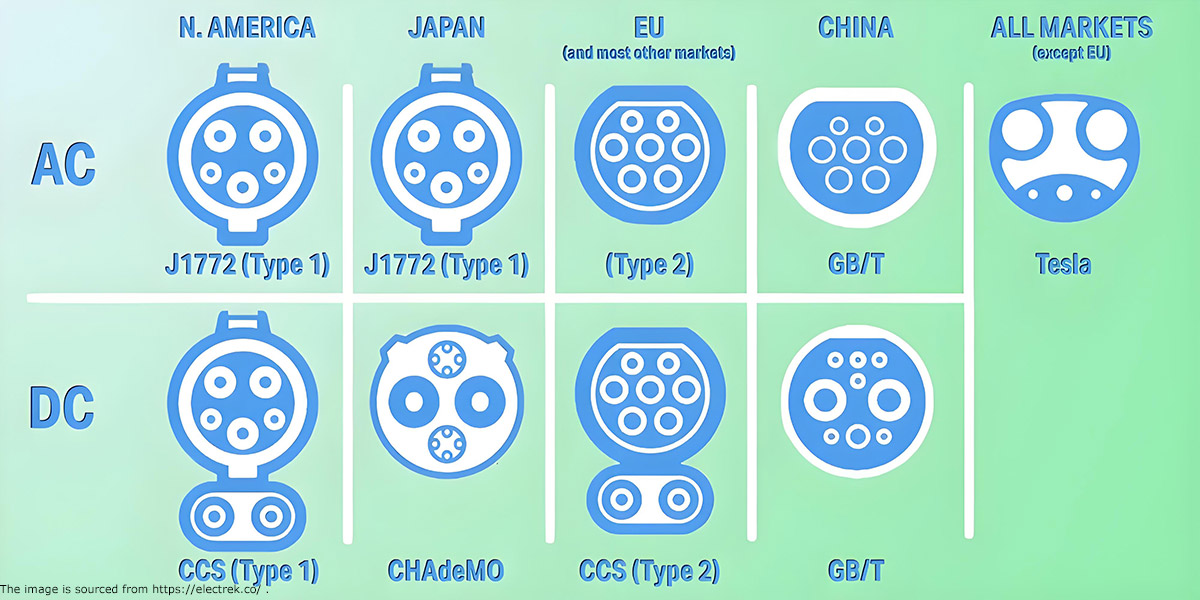

1. Types of Electric Vehicle Plugs
1.1 AC Charging Plugs
1.1.1 J1772
EV manufacturers mainly use J1772 in North America. Engineers design the plug to be round with 5 holes. It supports AC charging actively. The charging power usually ranges from 3.3kW to 7.2kW. The plug can be compatible with the power grid of the US and Canada. When designing the charging interface, designers focus on safety and universality actively. As a result, it is suitable for various EV brands and models.
1.1.2 Type 2
In Europe, people widely use Type 2. The plug is round. The AC charging power usually ranges from 3.7kW to 22kW. Its structure and design meet the electrical standards of Europe actively. It can adapt to the voltage and frequency requirements of the European power grid. In addition, it also supports DC charging. Through corresponding conversion devices, it can achieve fast charging functions actively. Many types of EV models can use it.
1.2 DC Fast Charging Plugs
1.2.1 CHAdeMO
For fast DC charging, people mainly use CHAdeMO. It originated in Japan and is widely used in some parts of Asia. The plug is large. The charging current and voltage are high. The charging power usually ranges from 50kW to 150kW. It can charge most of the electricity for EVs actively in a short time. It is suitable for fast charging scenarios such as highway service areas.
1.2.2 CCS (Combined Charging System)
CCS combines AC and DC charging functions actively. It is divided into CCS1 (North America) and CCS2 (Europe). It supports high-power DC fast charging. The maximum power can reach 350kW. It has strong compatibility. It is the mainstream direction for future fast charging development.
1.3 Special Dedicated Plugs
Tesla actively designed its dedicated plug. It is the exclusive charging interface for Tesla vehicles. It supports both AC and DC charging actively. The charging power is high. It usually ranges from 150kW to 250kW. Through adapters, it can be compatible with other standards actively. It is mainly used for Tesla’s Supercharging Network. It provides fast charging services for Tesla owners actively.
2. Compatibility
When it comes to the charging process, ensuring the compatibility of the EV’s socket with the charging station’s connector is the most important factor. Although adapters are available on the market, each EV has its maximum charging rate. So, when choosing a charging station, it is crucial to understand the vehicle’s charging rate and the compatibility of the charging station.
Most EV manufacturers will equip vehicles with suitable charging cables and plugs actively. However, before purchasing a charging station or using a public charging station, it is still necessary to confirm whether its plug type matches the vehicle.
Many public charging stations are equipped with a variety of plugs to accommodate different types of EVs. However, vehicle owners still need to research in advance and ensure that the charging station they use is compatible with their vehicle to achieve the best charging results.
3. Adapters and Converters
To solve the compatibility problems of charging interfaces, adapters, and converters for electric vehicles are important tools. Adapters can convert one type of charging plug into another type actively. This allows vehicles to charge at charging stations that would otherwise not match.
For example, with an adapter, vehicles equipped with the Tesla dedicated plug can charge at public CHAdeMO or CCS charging stations actively. Converters can change voltage or current parameters to enable vehicles to charge more efficiently on charging facilities of different specifications actively.
Although adapters and converters provide convenience for users, they may have some impact on charging speed and efficiency. Therefore, when using them, it is necessary to pay attention to choosing suitable products and ensuring that they meet safety standards actively.
4. Conclusion
The types of electric vehicle charging plugs are diverse. They are mainly divided into AC charging plugs and DC fast charging plugs. Different regions and brands have their mainstream standards. For example, J1772 is widely used in North America. Type 2 is the main standard in Europe. Tesla has its dedicated plug. Although adapters can solve compatibility problems to some extent, users still need to choose suitable charging facilities according to the specific requirements of the vehicle actively. Understanding these differences and confirming the compatibility of the charging station with the vehicle in advance is crucial to ensure charging efficiency and the health of the battery.
