As blades of wind turbines now exceed 100 meters in length, transportation logistics have become a critical bottleneck restricting the development of the wind power industry. The “last mile” from the factory to the wind farm is often the most complex and expensive part of the entire process.
1. Challenges in Blade Transportation
1.1 Size and Weight
Modern wind turbine blades are astonishing in size. Onshore wind turbine blades measure 60 to 90 meters long, while offshore wind turbine blades range from 80 to 120 meters long. A single blade weighs between 15 and 50 tons. Transporting blades longer than 80 meters presents severe challenges. These challenges include large turning radii, height restrictions under bridges and tunnels, and insufficient road width. In addition, blade structures are sensitive and require careful handling to avoid excessive bending.
1.2 Cost Implications
Increasing blade dimensions directly drive up logistics costs. Transportation costs for blades longer than 80 meters are 12% to 18% higher than those for standard blades. The use of composite materials such as carbon fiber further increases production costs by 20% to 25%. Offshore projects also require specialized installation vessels and heavy lifting cranes, which add further investment.
2. Transportation Modes
2.1 Road Transport

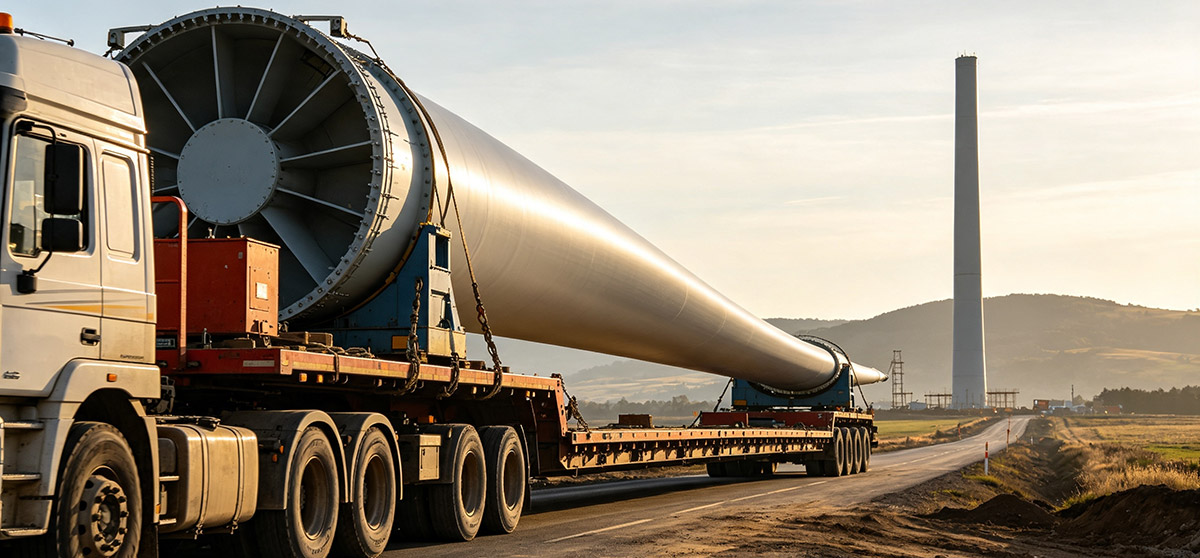

Road transport is the primary mode for onshore wind projects, but it faces many restrictions. This method requires multi‑axle special trailers and rotating mechanisms. It also requires advance route surveys, and occasionally needs tree trimming, guardrail removal, and oversize transport permits. In some cases, road closures and police escorts are necessary.
2.2 Rail Transport
Rail transport is suitable for long‑distance haulage. Its carbon emissions are lower than those of road transport, and it can carry multiple blades in a single trip. However, it needs specialized wagons and adjustable supports. Rail routes are fixed, so rail transport must be combined with road transport for the final delivery.
2.3 Sea Transport
Sea transport is essential for offshore wind projects and international shipments. This mode uses heavy‑lift vessels and roll‑on/roll‑off ships to handle oversized cargo. It requires deep‑water ports and heavy cranes, so port infrastructure investment is a key factor.
2.4 Intermodal Transport
Modern blade logistics increasingly adopt intermodal transport. The typical process runs from the factory by road to a railway, then to a port, then by sea to another port, then by road again, and finally to the wind farm. Digital route optimization and real‑time tracking have effectively improved transport efficiency.
3. Innovative Solutions
3.1 Modular Blade Design
Segmented blade design allows on‑site assembly after transport. Manufacturers divide the blade into two or more sections for shipping, and then connect these sections at the wind farm using bolts or adhesive bonding. This approach significantly reduces the difficulty of transporting ultra‑long blades. Several manufacturers have already launched modular designs with blade sections in the 45‑ to 60‑meter range.
3.2 On–Site Manufacturing
Manufacturing towers and blades near or directly at the wind farm can eliminate the need for long‑distance transport. For example, the U.S. Department of Energy has supported Keystone Power Systems’ spiral welding technology, while GE Renewable Energy has developed 3D‑printed tower foundations. Both are representative practices in this direction.
3.3 Wooden Towers
Engineered wooden towers, developed by companies such as Modvion, offer strength comparable to steel but with lighter weight. They also enable modular transport, thus providing a new material option for wind turbine tower logistics.
3.4 Digital Logistics
Digital tools are increasingly used in blade logistics. These tools include IoT sensors for real‑time monitoring of blade transport conditions, GPS tracking for route optimization, and digital twin technology to simulate the entire transport process and identify potential risks in advance.
4. Future Development Trends
The global logistics market for wind turbine blade transport is being strongly driven by the rapid growth of offshore wind power. At the same time, technological innovations such as IoT and automation continue to improve transport efficiency. Sustainable logistics practices, such as the promotion of low‑emission vehicles, are also gaining attention. Under the combined effect of these multiple factors, the market is expected to maintain sustained growth through 2034.
5. Conclusion
Wind turbine blade transportation is a critical link connecting manufacturing and installation. As blade dimensions continue to grow, traditional transport methods are approaching physical limits. Modular design, on-site manufacturing, and digital logistics represent the three major directions for breaking through these bottlenecks. For project developers, fully considering logistics feasibility at the project planning stage is an important safeguard against construction delays and cost overruns.
