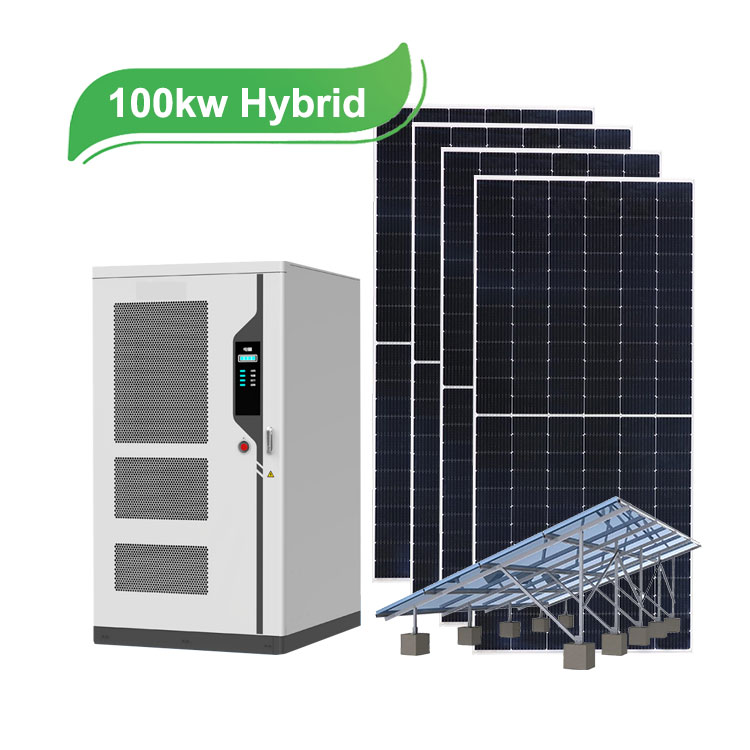

100kw Hybrid Solar Power System

Customized Design 100kw hybrid solar power plant system

Buy 100kw Intelligent Distributed Hybrid Energy Storage System Solar Panel and Battery Kit from Chinese Factory.

Brand Name: JMHPOWER
Type: Hybrid
Solar Panel: 550watt x 180units
Solar Inverter: 100kw hybrid solar inverter
Battery: 200kWh lithium-ion battery
Solar Mounts: Roof and Ground, customized design.
Certificate: TUV/CE/CEC/SC/UL/ISO/CEI 0-21/VDE/G98/NRS
Shipment: Home delivery Service
Payment: T/T, Credit Card, Apple Pay, Google Pay, PayPal, WU, etc.
Lifespan: Over 30 years

100KW 70KW 80KW 90KW Hybrid Solar Power System Introduction

100kw hybrid solar system uses solar panels to generate electricity, combined with grid, generator, storage lithium battery to rationalize the distribution, to provide electricity to medium and large commercial or industrial, the 100kw solar panels can generate 350kwh to 500kwh of electricity per day, for 40 to 70 families to use.

The system plays an important role in areas where power is unstable, regulating the grid and having a peak-shaving effect. When there is not enough sunlight, it switches to battery, utility or generator power. When there is plenty of solar panel, the excess power is stored in the battery and the rest is fed back to the grid company.

The system also integrates a battery management system (BMS), gas fire protection system, thermal management system, auxiliary monitoring system, AC power distribution system, and energy management system (EMS). It ensures the safe and stable operation of the system.

Advantages of 100kw Hybrid Solar Panel System with Battery Storage

1. 100kw hybrid solar kit design has been very mature and stable, in the Americas, Europe, the Middle East, Southeast Asia and other regions have been installed as well as in operation cases.

2. Self-developed BMS and EMS modules. It can protect the safety of the system and make accurate energy deployment.

3. The energy storage system can be connected in parallel and can form a maximum of 2MWh system.

4. Fire Fighting System. The battery system can be equipped with an optional automatic fire extinguishing system, which has built-in temperature sensors and smoke alarm devices, and can actively identify and block the fire before it occurs.

5. Remote monitoring system: You can download the monitoring platform on your computer to remotely monitor the working status of the system and power generation data.

Complete 100kw Hybrid Solar Panel System Kit Components

Item	Model	Description	Quantity
1	550Watt	Mono solar panel	180pcs
2	Hybrid Solar Inverter	Power: 50kw	2set
2	Hybrid Solar Inverter	3 phase:380V	2set
3	Lithium Battery	100kWh	1set or more
4	Mounting System	Whole set for roof and ground	1 set
5	PV Cables	6mm2 PV cables	300m
6	PV connector	Rated Voltage:1000V	20 pairs

100kw 70kw 80kw 90kw hybrid solar system Price

100kw 70kw 80kw 90kw hybrid solar system Price is from $30000~$50000. The main influence on the overall solar power generation cost is the total power of the solar panels and the total capacity of the battery. In addition, our price quotes usually do not include shipping, taxes and installation costs. If you have a requirement for us to install the panels we can provide a quote.
