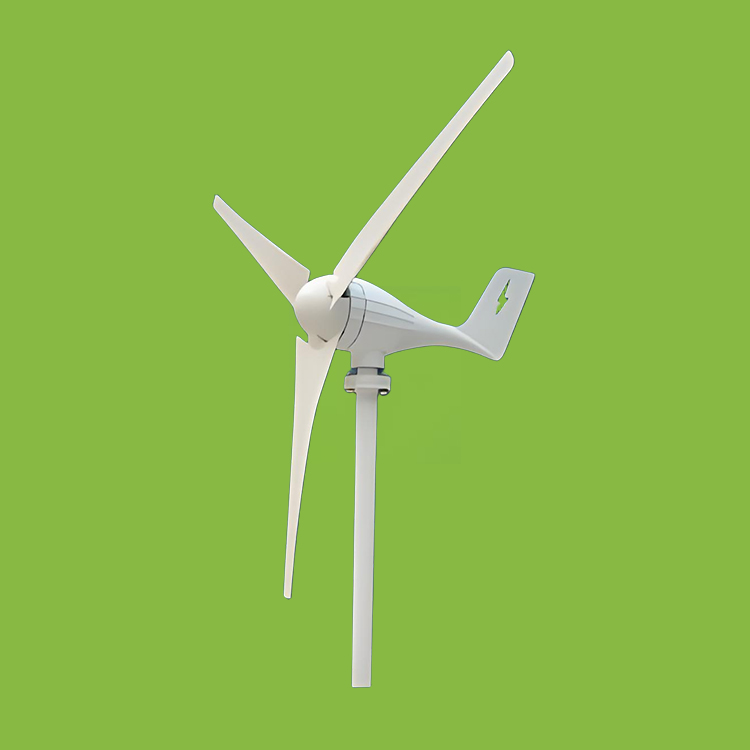

100W-400W Small Wind Turbine Introduction
The wind turbine is a highly efficient and versatile small-scale energy solution designed to meet the power needs of various applications. It boasts a low starting wind speed and a high wind energy utilization rate, making it ideal for locations with moderate wind conditions. With its compact size, lightweight design, and aesthetically pleasing appearance, this turbine is easy to install and operates with minimal vibration, ensuring smooth and reliable performance.
Technical Specifications
| Model | S/S4-100 | S/S4-200 | S/S4-300 | S/S4-400 |
| Rated power | 100W | 200W | 300W | 400W |
| Rated voltage | 12V/24V/48V | |||
| Start the wind speed | 2m/s | |||
| Rated wind speed | 11m/s | |||
| Safe wind speed | ≤45m/s | |||
| Fan blade diameter | 1.15m | 1.25m | 1.3m | 1.35m |
| Number of blades | 3/5/6/8/10 | |||
| Blade material | Reinforced nylon fiber | |||
| Fuselage material | Reinforced die-cast aluminum | |||
| Magnetic steel material | NdFeB | |||
| Generator type | Three-phase AC permanent magnet synchronous generator | |||
| Control mode | Electromagnetic brakes | |||
| Wind direction adjustment | Automatically adjusts the windward angle | |||
| Service life | ≥ 20 years | |||
| Degree of protection | IP54 | |||
| Net weight | 6kg | 6.5kg | 7kg | 7.5kg |
| Gross weight | 8kg | 8.5kg | 9kg | 9.5kg |
| Packing size | 670*280*210mm | |||
Horizontal Wind Turbines Features
Low Starting Wind Speed and High Efficiency: The turbine starts generating power at low wind speeds and efficiently converts wind energy into electricity.
Versatile Installation Options: The rotating body can connect using clamps or flanges to accommodate a variety of installation requirements.
Innovative Blade Design: The wind turbine blades feature proprietary designs, including classic, delta-wing, and flat styles. They are precision-molded using advanced processes and optimized aerodynamic and structural designs for high wind energy conversion.
Robust Blade Construction: The blades incorporate internal metal sleeves to prevent damage during assembly, reducing the risk of deformation or breakage. The hub tightly fits the blades using a precision concave-convex slot design for stable rotation.
Durable Housing: The turbine housing is made from die-cast aluminum, providing robust protection. Coupled with custom bearings, it offers enhanced resistance to typhoons and ensures safe operation.
Advanced Generator Technology: The permanent magnet rotor AC generator uses patented technology and a special stator design to reduce generator resistance, lowering the starting wind speed.
Smart Energy Tracking: The turbine equips itself with intelligent wind energy tracking technology to optimize electric current and voltage regulation, maximizing power generation efficiency.
Wide Range of Applications: Suitable for a variety of settings, including street lighting, surveillance, scenic islands, residential use, and microgrid systems.

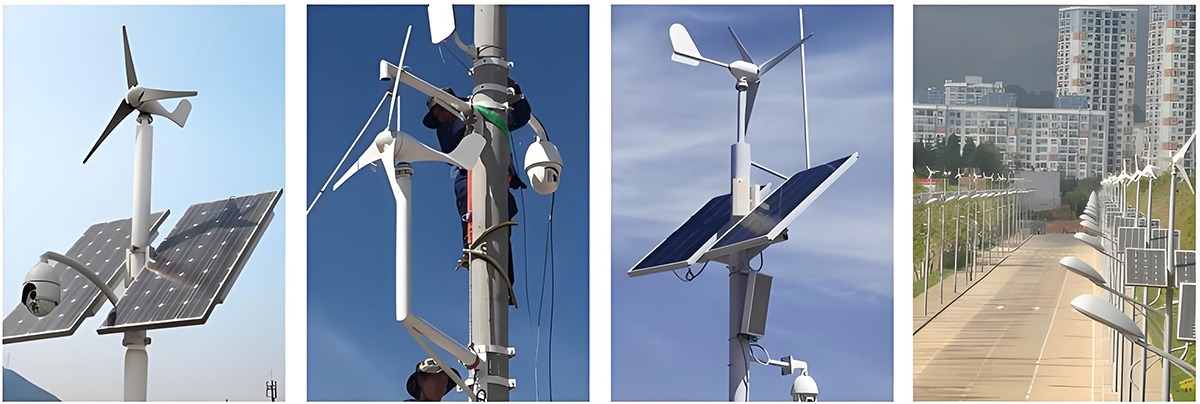

Relevant Cases
