Product Introduction

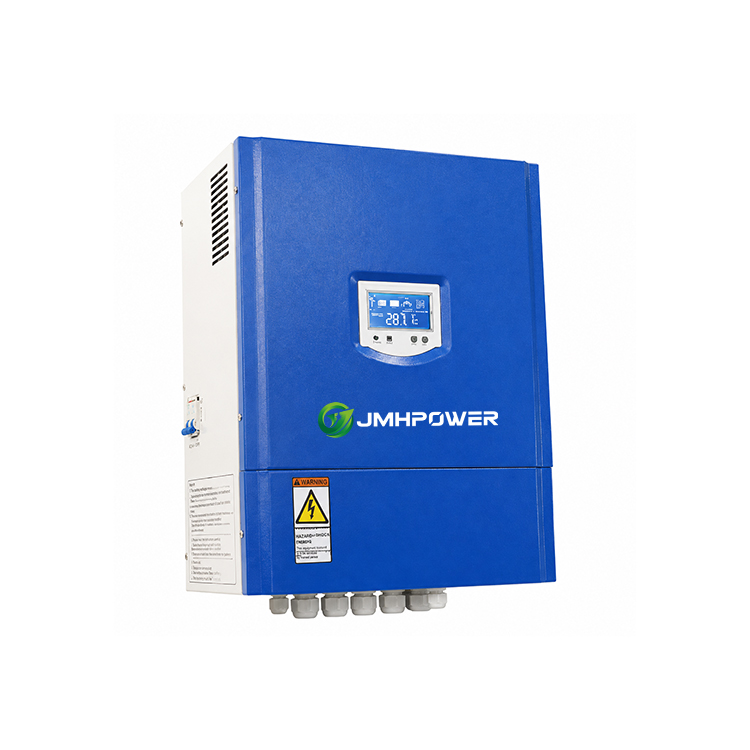

The 10KW Off Grid Wind Solar Hybrid Controller is designed for large off-grid wind, solar, and diesel hybrid power systems.
The controller supports a 10KW rated wind turbine power and a maximum wind turbine power of 20KW. Selected models support 120Vdc, 220Vdc, and 240Vdc battery systems.
It integrates rectification, charging, control, and DC output functions. The controller manages wind turbine charging and solar charging within the configured system voltage range.
The controller uses PWM constant voltage control and provides manual braking for wind turbine operation. The LCD and LED display show key operating parameters from the wind turbine, solar panels, and battery.
Optional functions include yawing, variable pitch, mechanical brake, hydraulic brake, and electromagnetic brake. Optional communication interfaces include RS485, USB, GPRS, WiFi, and Ethernet.
A 384Vdc version is also available for off-grid wind turbine applications. This configuration is listed separately in the catalog as a 10KW off-grid wind turbine controller.
Key Features
10KW Wind Turbine Capacity: The controller supports a 10KW rated wind turbine power and up to 20KW maximum wind turbine power.
Wind Solar Diesel Hybrid Control: The 120Vdc, 220Vdc, and 240Vdc versions support wind, solar, battery, and diesel generator system configurations.
PWM Constant Voltage Control: The controller provides PWM constant voltage control for the connected battery system.
Multiple Battery Voltage Options: The hybrid models support 120Vdc, 220Vdc, 240Vdc. A separate 384Vdc version is available for the off-grid wind turbine configuration.
Integrated Control Functions: The controller combines rectification, charging, control, DC output.
LCD + LED Display: The display provides operating information for the wind turbine, solar panels, and battery.
Displayed information includes wind turbine voltage, wind turbine current, wind turbine power, solar panel voltage, solar panel current, solar panel power, battery voltage, charging current.
Automatic Protection: The controller provides over-voltage protection, constant voltage charging, arrester protection.
Manual Braking: The controller provides a manual brake function for wind turbine operation.
Optional Wind Turbine Control: Optional control functions include yawing, variable pitch, mechanical brake, hydraulic brake, electromagnetic brake.
Optional Communication: The controller supports optional RS485 / USB / GPRS / WiFi / Ethernet.
Forced Air Cooling: The controller uses forced air cooling for heat dissipation.
Indoor and Outdoor Protection: The catalog specifies IP20 for indoor applications and IP65 for outdoor applications.
10KW Hybrid Controller Specifications
| Parameter | 10KW-120Vdc | 10KW-220Vdc | 10KW-240Vdc |
| Wind Turbine Rated Power | 10KW | 10KW | 10KW |
| Wind Turbine Max. Power | 20KW | 20KW | 20KW |
| Solar Panel Power | 3KWp | 3KWp | 3KWp |
| Battery | 120Vdc | 220Vdc | 240Vdc |
| PWM Constant Voltage | >145Vdc | >260Vdc | >290Vdc |
| Wind Turbine 3-Phase Dump Load Voltage | 150±2Vdc | 270±2Vdc | 300±5Vdc |
| Wind Turbine Recharge Voltage | 135±2Vdc | 245±2Vdc | 280±5Vdc |
| Solar Control Stop Charging Voltage | 150±2Vdc | 265±2Vdc | 300±5Vdc |
| Solar Control Recharge Voltage | <150Vdc | <250Vdc | <290Vdc |
| Diesel Generator Starting Voltage | 100±2Vdc | 180±2Vdc | 200±5Vdc |
| Diesel Generator Off Voltage | 135±2Vdc | 245±2Vdc | 270±5Vdc |
| Self-provided Battery Connecting Wire | >12mm² | >18mm² | >12mm² |
| PWM Fuse | 125A | 80A | 63A |
| Solar Fuse | 32A | 16A | 16A |
| Charging Fuse | 160A | 120A | 100A |
| Controller Size | 580×400×240mm | 580×400×240mm | 580×400×245mm |
| Controller Weight | 24kg | 24kg | 24kg |

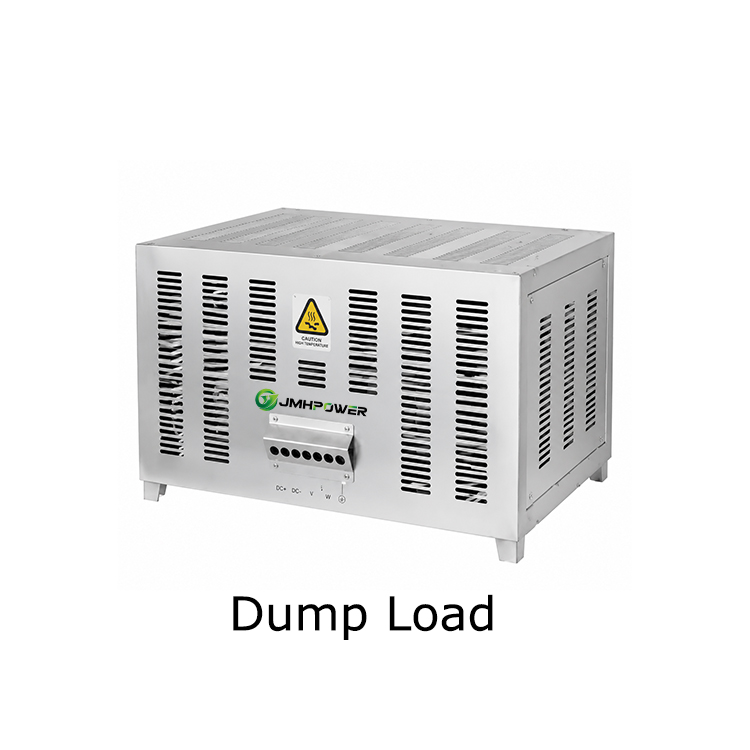

| Dump Load Size | 700×450×530mm | 700×450×530mm | 700×450×530mm |
| Dump Load Weight | 37kg | 37kg | 37kg |
10KW-384Vdc Wind Turbine Controller
| Parameter | 10KW-384Vdc |
| Wind Turbine Rated Power | 10KW |
| Wind Turbine Max. Power | 20KW |
| Battery | 384Vdc |
| Function | Rectifier, charge, control, DC output |
| PWM Constant Voltage | >400Vdc |
| Wind Turbine 3-Phase Dump Load Voltage | 410Vdc ±1% |
| Wind Turbine Recharge Voltage | 380Vdc ±1% |
| Self-provided Battery Connecting Wire | >12mm² |
| PWM Fuse | 40A |
| Charging Fuse | 63A |
| Work Environment Temperature | -30°C to 60°C |
| Relative Humidity | <90%, no condensation |
| Noise at 1m | <40dB |
| Protection Degree | IP20 Indoor / IP65 Outdoor |
| Cooling Method | Forced air cooling |
| Controller Size | 580×400×240mm |
| Controller Weight | 24kg |
| Dump Load Size | 700×450×530mm |
| Dump Load Weight | 37kg |
Common Specifications
| Item | Specification |
| Function | Rectifier, charge, control, DC output |
| Automatic Protection | Over-voltage protection, constant voltage charge, arrester |
| Manual Function | Manual brake |
| Display Mode | LCD + LED |
| Work Environment Temperature | -30°C to 60°C |
| Relative Humidity | <90%, no condensation |
| Noise at 1m | <40dB |
| Protection Degree | IP20 Indoor / IP65 Outdoor |
| Cooling Method | Forced air cooling |
| Optional Control Function | Yawing, variable pitch, mechanical brake, hydraulic brake, electromagnetic brake |
| Optional Communication | RS485 / USB / GPRS / WiFi / Ethernet |
| Optional Temperature Compensation | -4mV/°C/2V, -35°C to +80°C, accuracy ±1°C |
Applications
The 10KW Off Grid Wind Solar Hybrid Controller is designed for off-grid renewable energy systems requiring higher wind turbine capacity.
Typical applications include:
- Off-grid wind power systems
- Wind solar hybrid systems
- Wind solar diesel hybrid systems
- Large-scale battery-based DC systems
- Remote renewable energy systems
- Stand-alone wind power systems
- High-voltage off-grid wind turbine systems
The 10KW controller supports multiple battery voltage configurations to meet different system requirements.
FAQ
1. What is the rated wind turbine power?
The 10KW controller is designed for a 10KW rated wind turbine.
2. What is the maximum wind turbine power?
The specified maximum wind turbine power is 20KW.
3. What solar panel capacity does the hybrid controller support?
The 10KW hybrid models support up to 3KWp of solar panel power.
4. What battery voltages are available?
The hybrid models support 120Vdc, 220Vdc, and 240Vdc battery systems. A separate 384Vdc version is also available.
5. Does the controller support diesel generators?
The 120Vdc, 220Vdc, and 240Vdc hybrid configurations include diesel generator starting and off-voltage parameters.
6. What information does the display provide?
The LCD and LED display show wind turbine voltage, current, and power. It also shows solar panel and battery information on hybrid models.
7. Does the controller support manual braking?
Yes. The controller provides a manual brake function.
8. What optional control functions are available?
Optional functions include yawing, variable pitch, mechanical brake, hydraulic brake, and electromagnetic brake.
9. Does the controller support remote communication?
Optional interfaces include RS485, USB, GPRS, WiFi, and Ethernet.
10. Can the controller be installed outdoors?
The catalog specifies IP65 for outdoor applications and IP20 for indoor applications.
11. What cooling method does the controller use?
The controller uses forced air cooling.
