15kw hybrid solar system specification
The 15kw hybrid solar power system is made up of 27 pieces 550watt solar panels, a 16kw hybrid inverter, and one or more 15kWh lithium batteries. The batteries are essential if you often use electricity at night.
The main source of power for the system is the electricity generated by the solar panels during the day, and the excess power is stored in the solar batteries and used at night. And the excess power is fed back to the grid company. If the solar and battery power is not enough to supply the load, utility power is supplemented.
The output of the system is single-phase AC, if you need three-phase output we have other models of inverters that can meet your needs.
Complete 15kw hybrid Solar kit list
| Item | Model | Description | Quantity |
| 1 | 550Watt | Mono solar panel | 27pcs |
| 2 | Hybrid Solar Inverter | Power: 16KW | 1set |
| Single Phase: 230V | |||
| 3 | Lithium Battery | 48V 250Ah | 1pcs or more |
| 4 | Mounting System | Whole set for roof and ground | 1 set |
| 5 | PV Cables | 6mm2 PV cables | 300m |
| 6 | PV connector | Rated Voltage:1000V | 10 pairs |
15kw hybrid solar system price
The price of a 15kw hybrid solar system is about $7500. The price of a three phase and single-phase output is different, and another important factor that affects the price is the amount of battery storage you need. We can extrapolate your monthly electricity usage and time of day to determine the right capacity for you. Please contact us for a PV system design that suits your needs.
- Solar Panel Efficiency:21.28%
- Solar Panel Size: 2279*1134*35mm
- Cell size:182mmx182mm
- Voltage：41v
- Wind/Snow Load: 2400Pa/5400Pa
- Maximum system Voltage: 500VDC
- Warranty: 25 years
- Advanced MPPT with up to 97.6% efficiency
- 3 MPP trackers
- Max 16pcs parallel for on grid and off grid operation
- Max Charging/discharging current of 290A
- 6 time periods for battery charging/discharging
- Charging: Solar panel, Utility, diesel Generator
- IP65 Protection degree
- Warranty: 5 years
- Model: 51.2v 280Ah Lifepo4 Battery
- Storage Energy: 15kWh
- Maximum Discharge Current: 250A
- Max. Battery Quantity in Parallel: 64
- Cycle Life: ＞6000 Times
- Warranty: 8 years

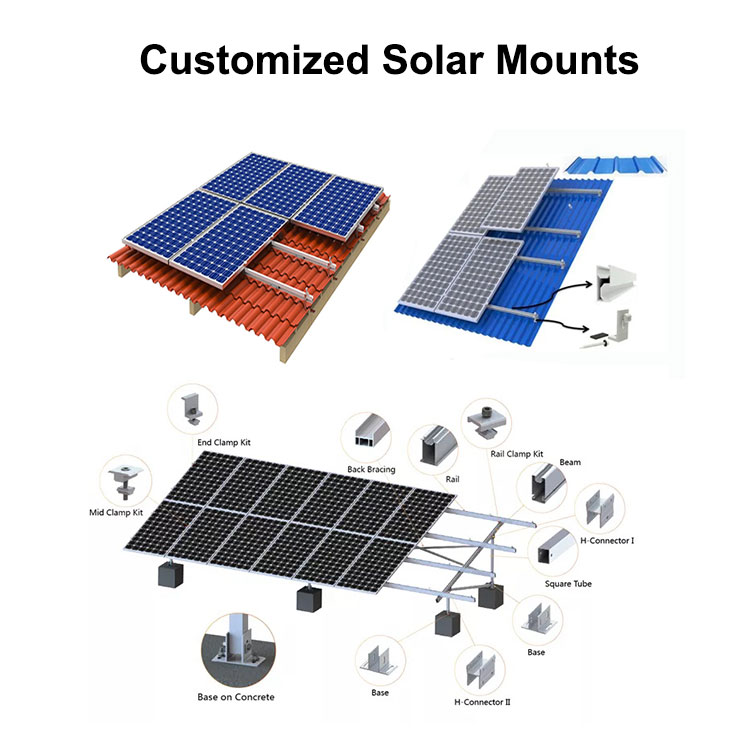

Customized Solar Mounts Design
- Home Tile Sloped Roof
- Home Metal Pitched Roof
- Horizontal floor or roof
- Parking Plant Roof

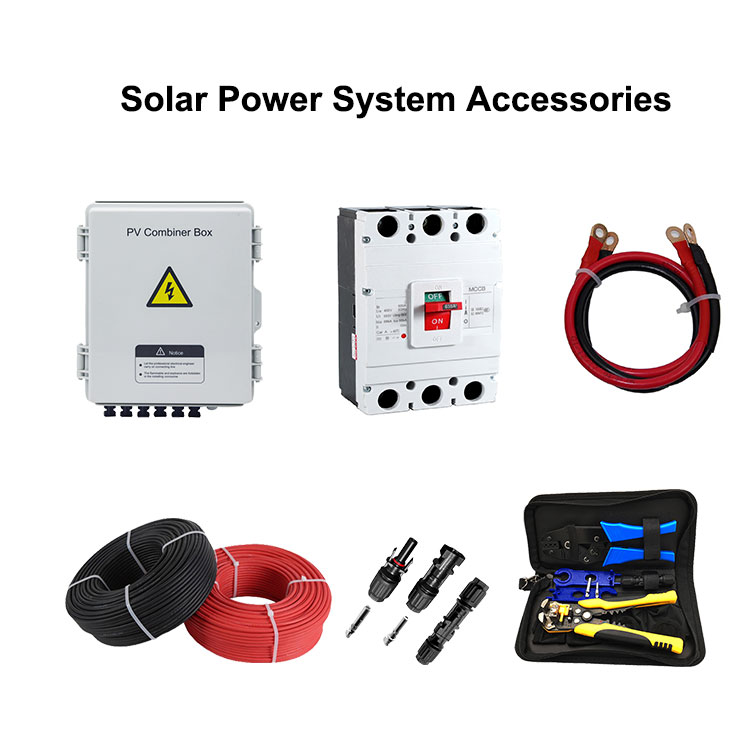

Solar Power System Accessories
- PV combiner box
- DC battery breaker
- DC battery cable
- DC solar cable
- MC4 tools
- Assembly tools
