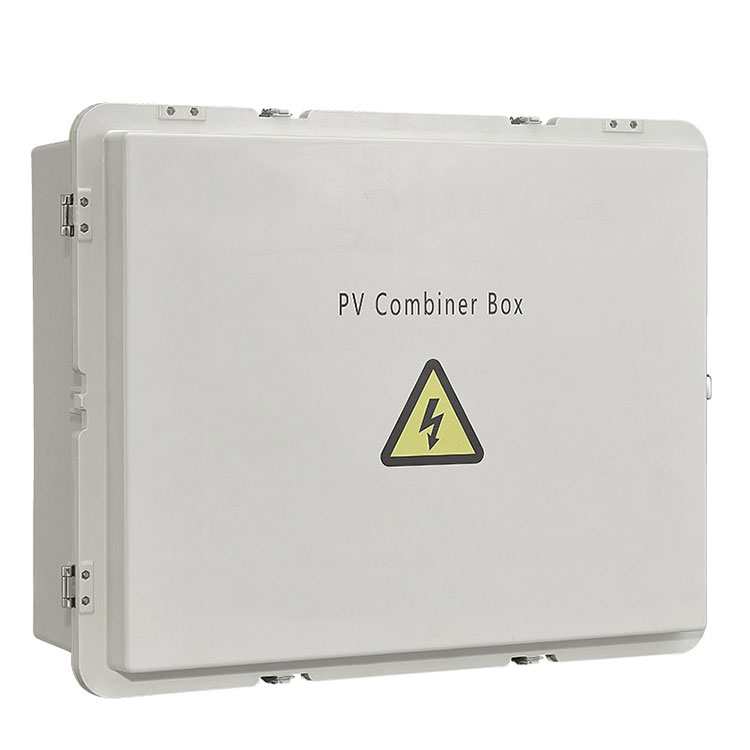

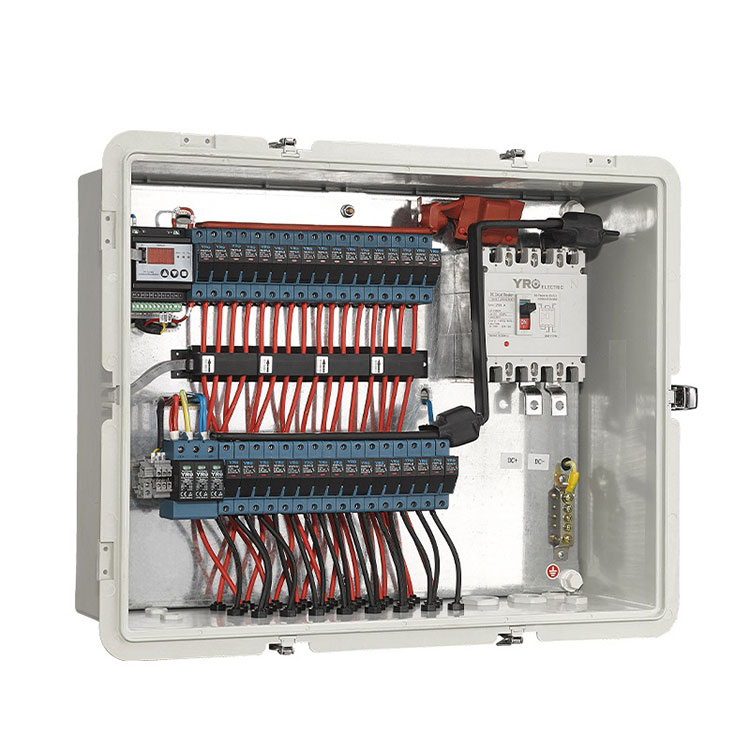

16 Strings Solar Combiner Box Details
The 16 strings solar combiner box can aggregate 16 strings solar panels into one output, which can reduce the voltage of the PV circuit. It plays a very important role in centralized PV power station. It has waterproof, lightning protection, overheating protection, etc., to ensure that the circuit can run stably.
16 Strings Solar Combiner Box Datasheets
| System maximum dc voltage | 1000V |
| Maximum input strings | 16 |
| Maximum input current for each string | 15A |
| Maximum output switch current | 63A |
| Number of inverter MPPT | 1 |
| Number of output strings | 1 |
| Nominal discharge current | 20KA |
| Maximum discharge current | 40KA |
| Voltage protection level | 2.8KV/3.8KV |
| Maximum continuous operating voltage Uc | 1000V |
| YMC4 Connectors/dc fuse/dc surge protector | Standard |
| Monitoring module/Preventing diode | Optional |
| Box material | PC/ABS |
| Installation method | Wall mounting type |
| Operating Temperature | -25℃–+55℃ |
| Permissible relative humidity | 0-95%, no condensation |
