17kw solar energy system specification
The 17kw solar power system can generate between 55kWh and 95kWh of electricity per day. For some small hospitals, clinics, offices, etc. this is enough. It can power loads with a total power of up to 20kw. During the day the solar panels are the main source of power, at night or on cloudy days the batteries and the utility or generator provide power to the load.

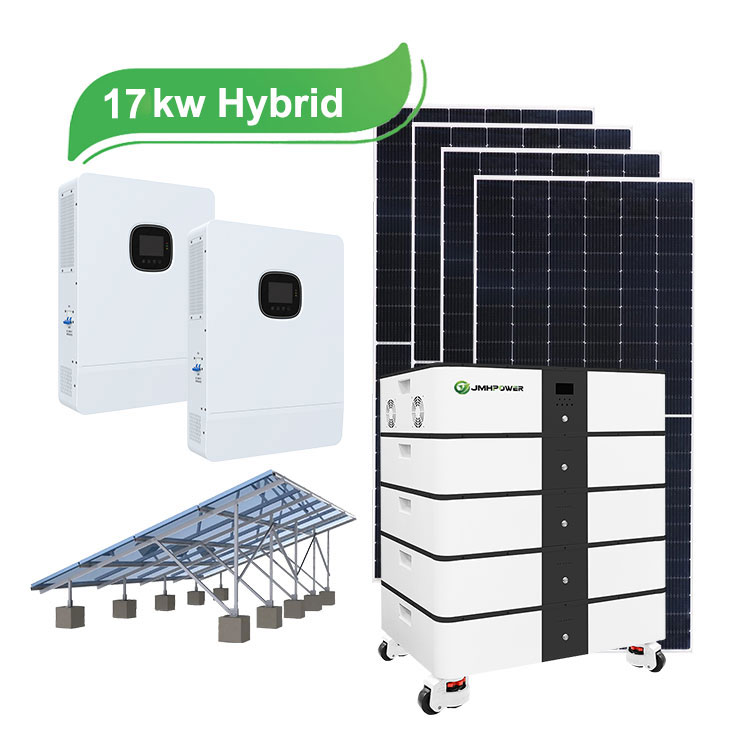

Complete 17kw hybrid Solar System Kit List
| Item | Model | Description | Quantity |
| 1 | 550Watt | Mono solar panel | 30pcs |
| 2 | Hybrid Solar Inverter | Power: 10KW | 2set |
| Single Phase/3 phase/Split Phase: 230V/240V/380V | |||
| 3 | Lithium Battery | 48V 280Ah | 1pcs or more |
| 4 | Mounting System | Whole set for roof and ground | 1 set |
| 5 | PV Cables | 6mm2 PV cables | 300m |
| 6 | PV connector | Rated Voltage:1000V | 20 pairs |
- Solar Panel Efficiency:21.28%
- Solar Panel Size: 2279*1134*35mm
- Cell size:182mmx182mm
- Voltage：41v
- Wind/Snow Load: 2400Pa/5400Pa
- Maximum system Voltage: 500VDC
- Warranty: 25 years
- Advanced MPPT with up to 99.9% efficiency
- EU and US market standard
- Max Hybrid Charging current:200A
- Exclusive Li-ion battery BMS dual activation
- Easy to install and simple to use
- Outputs high-quality pure sine wave AC power
- Charging: Solar panel, Utility, Generator
- Up to 22A+22A PV input current
- Warranty: 5 years
- Model: 51.2v 280Ah Lifepo4 Battery
- Storage Energy: 15kWh
- Maximum Discharge Current: 250A
- Max. Battery Quantity in Parallel: 64
- Cycle Life: ＞6000 Times
- Warranty: 8 years
Customized Solar Mounts Design
- Home Tile Sloped Roof
- Home Metal Pitched Roof
- Horizontal floor or roof
- Parking Plant Roof
Solar Power System Accessories
- PV combiner box
- DC battery breaker
- DC battery cable
- DC solar cable
- MC4 tools
- Assembly tools
How much electricity does a 17kw solar system generate per year?
17kw photovoltaic panels generate about 19800kWh~32000kWh of electricity per year. In high latitude regions, photovoltaic panels generate much more electricity in the summer than in the winter, such as the European region, North America and Canada. The amount of electricity generated in summer is twice as much as in winter. Latitude and altitude are the main factors affecting the amount of electricity generated by PV panels. In addition, the tilt angle of the PV installation, the cleanliness of the PV panels, and the temperature of the area where the PV is located are all factors that affect the amount of electricity generated.
17kw solar system size
Estimated size based on 32 units 550watt solar panels. If you need to install the panels on a horizontal roof, you will need approximately 120m² of installation area. If you have a pitched roof, you will need an installation area of approximately 85m².
Selection of battery capacity for 17kw solar system
We recommend a battery capacity of between 20kWh and 60kWh, depending on the average night time consumption of your load. It is best to choose lithium batteries as a backup power source, which have a good lifetime and number of cycles, as well as a good maximum depth of discharge.
How much money can I save with a 17kw solar system?
A 17kw solar system can save you at least $320 per month on your electricity bill. It will pay for itself in about 3-5 years. If the local government has incentives for new energy, you can apply for additional subsidies. You need to check with the local grid company for the exact amount.
