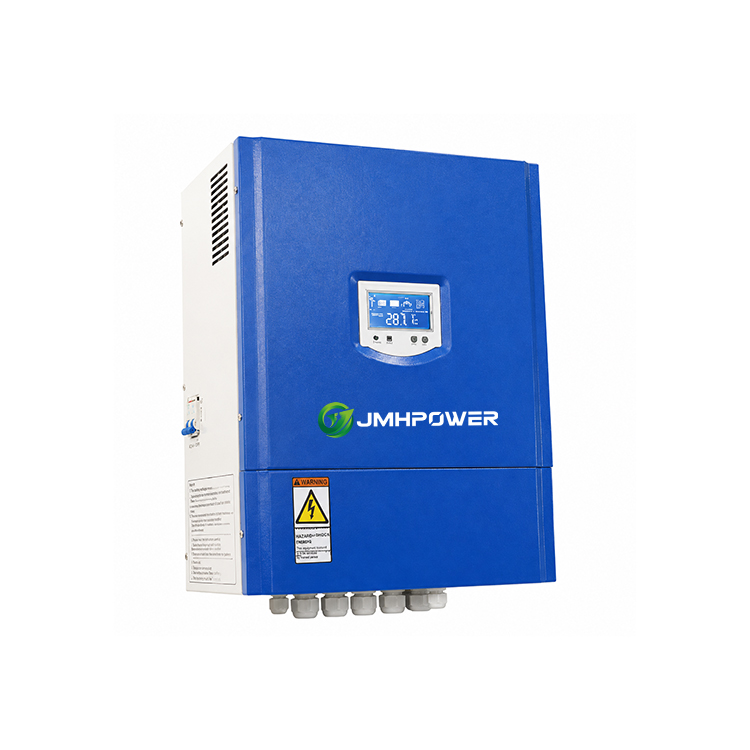

Product Introduction
The 1KW 2KW 3KW 5KW Wind Solar Hybrid Controller is designed for off-grid wind, solar, and diesel hybrid power systems. It integrates rectification, charging, control, and DC output functions in one controller.
The controller supports different battery voltage configurations from 12Vdc to 240Vdc, depending on the rated power and model. It manages wind turbine charging and solar charging while providing automatic protection functions.
The controller uses PWM constant voltage control and supports manual braking for wind turbines. An LCD and LED display show wind turbine voltage, current, and power, as well as solar panel and battery information.
Optional control functions include yawing, variable pitch, mechanical brake, hydraulic brake, and electromagnetic brake. Optional communication interfaces include RS485, USB, GPRS, WiFi, and Ethernet.
The series covers 1KW, 2KW, 3KW, and 5KW wind turbine rated power, making it suitable for different off-grid renewable energy applications.
Key Features
Wind, Solar and Diesel Hybrid Control: The controller integrates wind turbine, solar panel, battery, and diesel generator control functions for off-grid hybrid systems.
PWM Constant Voltage Control: PWM control maintains the configured charging voltage according to the selected battery voltage.
Multiple Power Options: The series provides 1KW, 2KW, 3KW, and 5KW wind turbine rated power options.
Multiple Battery Voltage Options: Different models support battery systems from 12Vdc to 240Vdc.
1KW: 12V / 24V / 48V
2KW: 24V / 48V / 96V / 120V / 220V
3KW: 24V / 48V / 96V / 120V / 220V
5KW: 48V / 120V / 240V
LCD + LED Display: The display provides operating information for the wind turbine, solar panel, and battery. It can display wind turbine voltage, wind turbine current, wind turbine power, solar panel voltage, solar panel current, solar panel power, battery voltage, charging current.
Aautomatic Protection: The controller provides over-voltage protection, constant voltage charging, arrester protection.
Manual Brake Function: The controller supports a manual brake function for wind turbine operation.
Optional Control Functions: The controller can support optional: yawing, variable pitch, mechanical brake, hydraulic brake, electromagnetic brake.
Optional Communication: available communication interfaces include: RS485 / USB / GPRS / WiFi / Ethernet.
Forced Air Cooling: The controller uses forced air cooling for heat dissipation during operation.
Indoor and Outdoor Protection: The available protection degree is IP20 for indoor applications and IP65 for outdoor applications.
1KW Wind Solar Hybrid Controller
| Parameter | 1KW-12Vdc | 1KW-24Vdc | 1KW-48Vdc |
| Wind Turbine Rated Power | 1KW | 1KW | 1KW |
| Wind Turbine Max. Power | 2KW | 2KW | 2KW |
| Solar Panel Power | 300Wp | 300Wp | 300Wp |
| Battery | 12Vdc | 24Vdc | 48Vdc |
| PWM Constant Voltage | >14Vdc | >29Vdc | >58Vdc |
| Wind Turbine 3-Phase Dump Load Voltage | 15±1Vdc | 30±1Vdc | 60±1Vdc |
| Wind Turbine Recharge Voltage | 13.5±1Vdc | 27±1Vdc | 54±1Vdc |
| Solar Control Stop Charging Voltage | 15±1Vdc | 29±1Vdc | 58±1Vdc |
| Solar Control Recharge Voltage | <14Vdc | <29Vdc | <58Vdc |
| Diesel Generator Starting Voltage | 10±1Vdc | 20±1Vdc | 40±1Vdc |
| Diesel Generator Off Voltage | 13.5±1Vdc | 27±1Vdc | 54±1Vdc |
| PWM Fuse | 100A | 50A | 25A |
| Solar Fuse | 32A | 16A | 10A |
| Charging Fuse | 125A | 63A | 40A |
| Controller Size | 510×360×240mm | 510×360×240mm | 510×360×240mm |
| Controller Weight | 17kg | 17kg | 17kg |

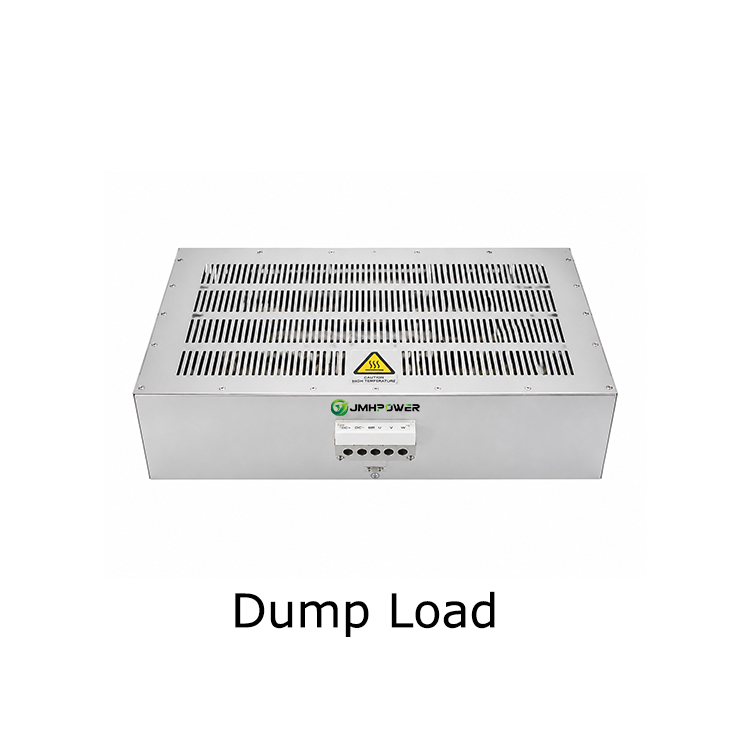

| Dump Load Size | 290×250×120mm | 290×250×120mm | 290×250×120mm |
| Dump Load Weight | 5kg | 5kg | 5kg |
2KW Wind Solar Hybrid Controller
| Parameter | 2KW-24Vdc | 2KW-48Vdc | 2KW-96Vdc | 2KW-120Vdc | 2KW-220Vdc |
| Wind Turbine Rated Power | 2KW | 2KW | 2KW | 2KW | 2KW |
| Wind Turbine Max. Power | 4KW | 4KW | 4KW | 4KW | 4KW |
| Solar Panel Power | 600Wp | 600Wp | 600Wp | 600Wp | 600Wp |
| Battery | 24Vdc | 48Vdc | 96Vdc | 120Vdc | 220Vdc |
| PWM Constant Voltage | >29Vdc | >58Vdc | >116Vdc | >145Vdc | >260Vdc |
| Wind Turbine 3-Phase Dump Load Voltage | 30±1Vdc | 60±1Vdc | 120±2Vdc | 150±2Vdc | 270±2Vdc |
| Wind Turbine Recharge Voltage | 27±1Vdc | 54±1Vdc | 108±2Vdc | 138±2Vdc | 245±2Vdc |
| Solar Control Stop Charging Voltage | 29±1Vdc | 58±1Vdc | 116±2Vdc | 150±2Vdc | 265±2Vdc |
| Solar Control Recharge Voltage | <29Vdc | <58Vdc | <116Vdc | <140Vdc | <250Vdc |
| Diesel Generator Starting Voltage | 20±1Vdc | 40±1Vdc | 80±2Vdc | 100±2Vdc | 180±2Vdc |
| Diesel Generator Off Voltage | 27±1Vdc | 54±1Vdc | 108±2Vdc | 135±2Vdc | 245±2Vdc |
| PWM Fuse | 100A | 50A | 32A | 20A | 10A |
| Solar Fuse | 32A | 16A | 10A | 7A | 4A |
| Charging Fuse | 125A | 63A | 40A | 32A | 20A |
| Controller Weight | 22kg | 17kg | 17kg | 16kg | 16kg |
| Dump Load Size | 410×290×120mm | 410×290×120mm | 410×290×120mm | 410×290×120mm | 410×290×120mm |
| Dump Load Weight | 8kg | 8kg | 8kg | 8kg | 8kg |
3KW Wind Solar Hybrid Controller
| Parameter | 3KW-24Vdc | 3KW-48Vdc | 3KW-96Vdc | 3KW-120Vdc | 3KW-220Vdc |
| Wind Turbine Rated Power | 3KW | 3KW | 3KW | 3KW | 3KW |
| Wind Turbine Max. Power | 6KW | 6KW | 6KW | 6KW | 6KW |
| Solar Panel Power | 900Wp | 900Wp | 900Wp | 900Wp | 900Wp |
| Battery | 24Vdc | 48Vdc | 96Vdc | 120Vdc | 220Vdc |
| PWM Constant Voltage | >29Vdc | >58Vdc | >116Vdc | >145Vdc | >260Vdc |
| Wind Turbine 3-Phase Dump Load Voltage | 30±1Vdc | 60±1Vdc | 120±2Vdc | 150±2Vdc | 270±2Vdc |
| Wind Turbine Recharge Voltage | 27±1Vdc | 54±1Vdc | 108±2Vdc | 138±2Vdc | 245±2Vdc |
| Solar Control Stop Charging Voltage | 30±1Vdc | 60±1Vdc | 120±2Vdc | 150±2Vdc | 265±2Vdc |
| Solar Control Recharge Voltage | <29Vdc | <58Vdc | <116Vdc | <140Vdc | <250Vdc |
| Diesel Generator Starting Voltage | 20±1Vdc | 40±1Vdc | 80±2Vdc | 100±2Vdc | 180±2Vdc |
| Diesel Generator Off Voltage | 27±1Vdc | 54±1Vdc | 108±2Vdc | 135±2Vdc | 245±2Vdc |
| PWM Fuse | 160A | 80A | 40A | 32A | 16A |
| Solar Fuse | 50A | 25A | 12A | 10A | 6A |
| Charging Fuse | 190A | 125A | 63A | 50A | 25A |
| Controller Size | 580×400×240mm | 510×360×240mm | 510×360×240mm | 510×360×240mm | 510×360×240mm |
| Controller Weight | 23kg | 18kg | 17kg | 17kg | 17kg |
| Dump Load Size | 400×410×250mm | 400×410×250mm | 400×410×250mm | 400×410×250mm | 400×410×250mm |
| Dump Load Weight | 13kg | 13kg | 13kg | 13kg | 13kg |
5KW Wind Solar Hybrid Controller
| Parameter | 5KW-48Vdc | 5KW-120Vdc | 5KW-240Vdc |
| Wind Turbine Rated Power | 5KW | 5KW | 5KW |
| Wind Turbine Max. Power | 10KW | 10KW | 10KW |
| Solar Panel Power | 1.5KWp | 1.5KWp | 1.5KWp |
| Battery | 48Vdc | 120Vdc | 240Vdc |
| PWM Constant Voltage | >58Vdc | >145Vdc | >290Vdc |
| Wind Turbine 3-Phase Dump Load Voltage | 60±1Vdc | 150±2Vdc | 300±5Vdc |
| Wind Turbine Recharge Voltage | 54±1Vdc | 135±2Vdc | 280±5Vdc |
| Solar Control Stop Charging Voltage | 60±1Vdc | 150±2Vdc | 300±5Vdc |
| Solar Control Recharge Voltage | 54±1Vdc | 135±2Vdc | 280±5Vdc |
| Diesel Generator Starting Voltage | 40±1Vdc | 100±2Vdc | 200±5Vdc |
| Diesel Generator Off Voltage | 54±1Vdc | 135±2Vdc | 270±5Vdc |
| PWM Fuse | 125A | 50A | 32A |
| Solar Fuse | 40A | 16A | 10A |
| Charging Fuse | 160A | 63A | 40A |
| Controller Size | 580×400×240mm | 510×360×240mm | 510×360×240mm |
| Controller Weight | 23kg | 17kg | 17kg |
| Dump Load Size | 600×450×380mm | 600×450×380mm | 600×450×380mm |
| Dump Load Weight | 28kg | 28kg | 28kg |
Common Specifications
| Item | Specification |
| Function | Rectifier, charge, control, DC output |
| Automatic Protection | Over-voltage protection, constant voltage charge, arrester |
| Manual Function | Manual brake |
| Display Mode | LCD + LED |
| Cooling Method | Forced air cooling |
| Work Environment Temperature | -30°C to 60°C |
| Relative Humidity | <90%, no condensation |
| Noise at 1m | <40dB |
| Protection Degree | IP20 Indoor / IP65 Outdoor |
| Optional Control Function | Yawing, variable pitch, mechanical brake, hydraulic brake, electromagnetic brake |
| Optional Communication | RS485 / USB / GPRS / WiFi / Ethernet |
| Optional Temperature Compensation | -4mV/°C/2V, -35°C to +80°C, accuracy ±1°C |
Applications
The 1KW 2KW 3KW 5KW Wind Solar Hybrid Controller can be used in off-grid renewable energy systems that combine wind and solar power.
Typical applications include:
- Off-grid wind power systems
- Wind solar hybrid power systems
- Wind solar diesel hybrid systems
- Remote renewable energy systems
- Small-scale wind turbine systems
- Stand-alone wind and solar power systems
- Battery-based DC power systems
The multiple battery voltage options allow the series to cover different system configurations from low-voltage to higher-voltage DC systems.
FAQ
1. What power options does the wind solar hybrid controller provide?
The series includes 1KW, 2KW, 3KW, and 5KW wind turbine rated power models.
2. What is the maximum wind turbine power?
The maximum wind turbine power is 2KW for the 1KW model, 4KW for the 2KW model, 6KW for the 3KW model, and 10KW for the 5KW model.
3. How much solar panel power can the controller support?
The 1KW model supports 300Wp, the 2KW model supports 600Wp, the 3KW model supports 900Wp, and the 5KW model supports 1.5KWp solar panels.
4. What battery voltages are available?
The available battery voltage configurations range from 12Vdc to 240Vdc, depending on the model.
5. What information does the display show?
The LCD and LED display can show wind turbine voltage, current, and power. It also shows solar panel voltage, current, power, battery voltage, and charging current.
6. Does the controller provide wind turbine braking?
Yes. The controller provides a manual brake function. Optional control functions also include several mechanical and electrical braking options.
7. Does it support diesel generators?
Yes. The controller specifications include diesel generator starting and off-voltage settings, supporting wind, solar, and diesel hybrid system configurations.
8. What communication interfaces are available?
Optional communication interfaces include RS485, USB, GPRS, WiFi, and Ethernet.
9. Can the controller work outdoors?
The specifications list IP20 for indoor use and IP65 for outdoor use.
10. What cooling method does the controller use?
The controller uses forced air cooling.
