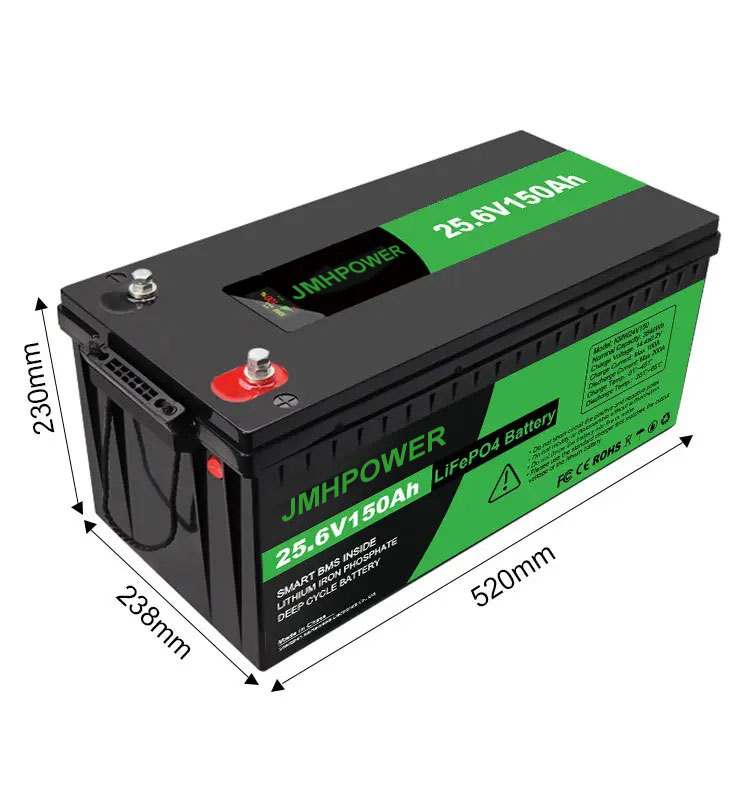

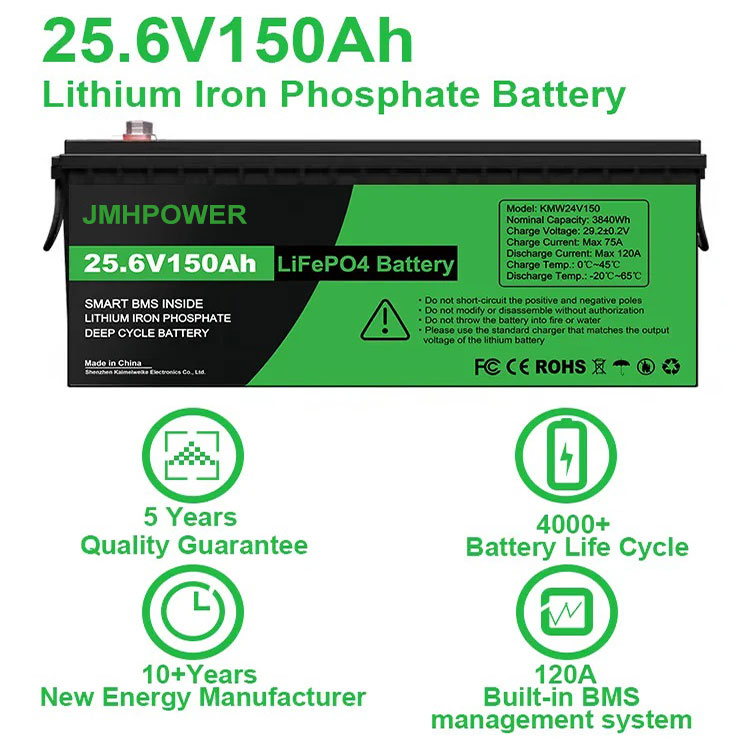

Lithium Ion Battery 24v 150ah Description
24V 150Ah lithium battery is a high-energy-density lithium iron phosphate battery pack that excels in many aspects and is gradually replacing lead-acid batteries in the market.
Safety: It features a built-in battery management system that continuously monitors the battery’s operation status, ensuring safety while also balancing the battery’s charge and maximizing its utilization. This results in a longer battery lifespan.
Optimal Lead-Acid Replacement Battery: Lithium batteries have higher energy density, smaller size, and weigh only one-third of lead-acid batteries.
Easy Installation: They can be connected in parallel or series to form 48V, 96V, etc., configurations, allowing for the expansion of battery capacity to suit various power needs.
Wide Application Range: Lithium batteries can be widely used in solar energy storage systems, boats, electric vehicles, forklifts, medical equipment, outdoor power sources, golf carts, and more.
Environmentally Friendly: They do not contain heavy metal elements and do not pollute the environment.
Safety settings of 24V 150Ah
ABS shell: The battery uses a reinforced ABS shell, which is not only light but also hard. It is impact-resistant and has strong collision resistance. Protect your battery from damage and fire during transportation.
Built-in BMS: The built-in protection system of the battery prevents the occurrence of excessive voltage, excessive current, excessive charge and discharge, and excessive temperature. It will also balance the capacity of each cell in the battery pack to make the cells more consistent.
Fuse: There is a fuse inside the battery, which automatically blows and cuts off the circuit when the current in the internal circuit of the battery is too large. It becomes a very important role in protecting the battery.
Safety valve: There is a safety valve design on the top of the battery shell. When an unexpected situation occurs that there is too much gas inside the battery, the safety valve will be opened to release the gas. This completely avoids the occurrence of fire or explosion.
Flame-retardant electrolyte: The flame-retardant co-solvent of organic phosphide is added to the electrolyte of the 24V 150Ah lithium battery, which reduces the flammability of the electrolyte. Minimize the possibility of battery spontaneous combustion.
How to Recharge Lithium Ion Battery?
24v 150ah Battery Specification
| Nominal voltage | 25.6V | 25.6V | 25.6V | 25.6V |
| Nominal capacity | 50ah | 100ah | 150ah | 200ah |
| energy storage | 1280wh | 2560wh | 3840wh | 5120wh |
| Battery type | grade A 3.2VLifePO4 Prismatic Lithium iron phosphate battery cell 8S2P | grade A 3.2VLifePO4 Prismatic Lithium iron phosphate battery cell 8S1P | grade A 3.2VLifePO4 Prismatic Lithium iron phosphate battery cell 8S2P | grade A 3.2VLifePO4 Prismatic Lithium iron phosphate battery cell 8S3P |
| Charge Voltage | 29.4V±0.2V | |||
| Discharge Cut-off Voltage | 20V | |||
| Max charging current | 25A | 50A | 75A | 100A |
| BMS function | Overcharge, overdischarge, overcurrent, short circuit, etc. | |||
| Continuous discharge current | 120A | 120A | 120A | 250A |
| Peak current | 240A (<3s) | 240A (<3s) | 240A (<3s) | 500A (<3s) |
| charging temperature | 0℃ to 55℃ (32F to 131F) @60±25% Relative Humidity | |||
| discharge temperature | (-)20℃ to 60℃ (-4F to 140F) @60±25% Relative Humidity | |||
| Storage Temperature | (-)20℃ to 45℃ (-4F to 113F) @60±25% Relative Humidity | |||
| Life cycle | It is 2000 times at 90% dose, 5000 times at 65% dose, and 8000 times at 40% dose. | |||
| Net weight | 13kg | 33kg | 33kg | 44kg |
| Battery display | Display voltage/remaining battery | |||
| Battery size | 331*172*216 | 530*237*200mm | 530*237*200mm | 500*380*200mm |
| Case material | Ip65 ABS case(customizable)/metal case (customizable) | |||
24V 50Ah Battery Appliances
Lithium Battery Parallel and Series Connection
More Options for You:
24V 150Ah Lithium Ion Battery Production Process
