LifePO4 Battery 36V 200ah Specification
JMH 36V 200Ah lithium ion battery is designed to be rugged, durable, and highly waterproof, making it widely used on ships. If you frequently need to go fishing in remote areas, this battery can provide uninterrupted power for you.
The battery also features an LCD display screen, allowing real-time monitoring and viewing of battery voltage and capacity. This helps customers understand the battery’s status.
Equipped with four sturdy handles, the battery can be easily moved and transported.
The built-in Battery Management System can also effectively monitor the battery’s operational status in real-time, ensuring its safe operation.
36V 200Ah lithium ion battery Features
High-performance LFP Battery: 36V 200Ah The battery is made of LFP’s high-performance cells, with a service life of more than 10 years. It is the top battery technology and material that can be mass-produced at present.
100% DOD & SOC: The maximum depth of discharge of this battery can reach 100%, which greatly improves the battery power utilization. However, in order to maximize the life of the battery, it is not recommended to discharge the battery at 100% frequently.
Flexible Combination: Up to 16 batteries can be connected in parallel or series to form a larger battery pack to meet actual needs.
IP65 waterproof rating: This ensures that the batteries can easily cope even at sea, on ships or in places where they are often exposed to water and sand.
Vibration-proof design: The battery’s external hard shell and internal cushioning design can keep the battery from being damaged even when it is installed in an electric vehicle or in places where vibrations occur frequently.
Customizable service: the size, weight, discharge current, discharge power and connector size of the battery can be customized according to your requirements.
Laser welding process: it ensures that the connection between the battery cells will not appear false welding, and there are also screws to fix the connection points between the cells. This makes the internal structure of the battery more solid.
36v 200ah Lithium Battery Specification
| Model Number | JMH 38.4V 200Ah |
| Product name | Lithium Iron Phosphate Lifepo4 Battery |
| Battery Type | LiFePO4 |
| Capacity | 200Ah |
| Voltage | 38.4V |
| Cycle life | 6000 Times |
| Warranty | 8 years |
| OEM/ODM | Accepatable |
| BMS | 500A |
| Battery cell | 3.2V Prismatic LifePO4 Cell |
| Output Power Range | 0-10 kWh |
| System Type | Rack-mounted |
| Dimension (L*W*H) | 560*400*400mm(customizable) |
| Weight | 70KG |
| Communication Port | CAN, RS232, RS485 |
| Protection Class | IP20 |
| Grid connection | Off grid, Hybrid grid |
BMS of 36V 200Ah LifePO4 Battery
Overcurrent protection: Prevent excessive current during charging and discharging.
Short circuit protection : Closed when the output port of the circuit is short-circuited.
Smart sleep function: When the battery is under voltage, the circuit is in a sleep state.
Overcharge protection: Prevent battery from overcharging.
Over discharge protection: Prevent battery from over-discharge.
Overvoltage protection: Prevent battery from charging and discharging too high.
Temperature protection: The battery is automatically protected at high and low temperatures.

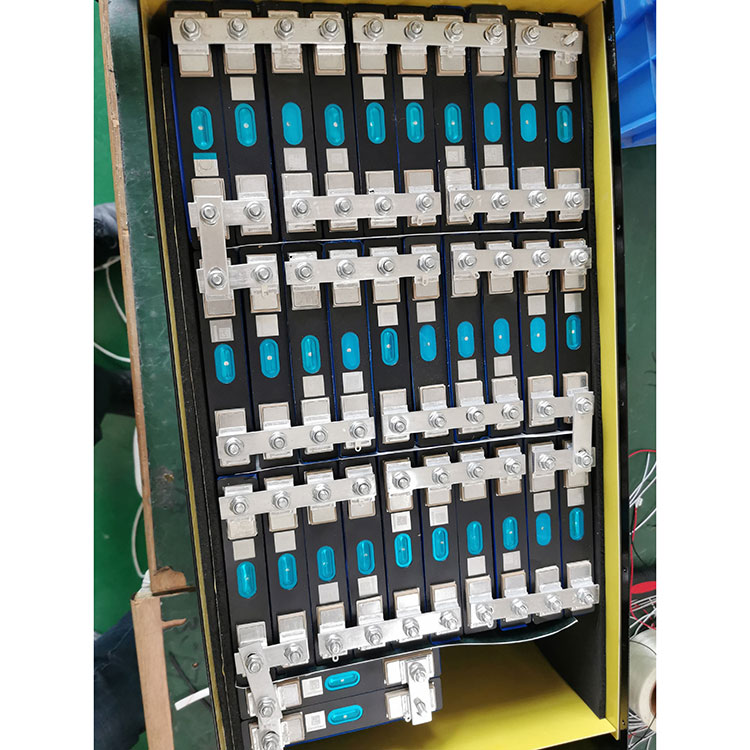

36V 200Ah Lithium Ion Battery Production Process
36V 200Ah lithium ion battery Price
The price of 36V 200Ah lithium ion battery is around $900. If you are a distributor, wholesaler, or channel business need to purchase, we also have more favorable discount price. Welcome to contact us or get the latest battery quote.
