500KVA 600KVA Three Phase Pure Sine Wave Inverter Product Overview
The 500KVA and 600KVA Three Phase Pure Sine Wave Inverters provide high-capacity AC power for large electrical systems. They convert DC power from battery banks into three-phase AC power for demanding loads. The series supports large-scale energy storage, backup power, and industrial power applications.

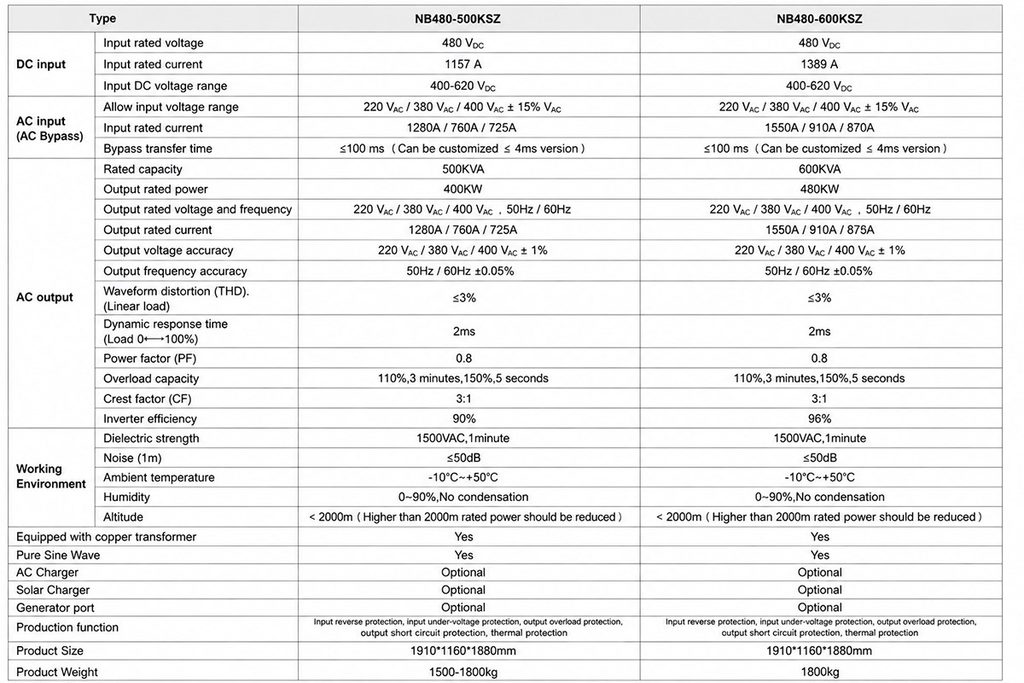

500KVA 600KVA Off Grid Three Phase Inverter Technical Parameters
Main Features
The 500KVA and 600KVA models provide flexible options for high-power applications. They deliver three-phase pure sine wave output and support different system configurations. The inverter integrates protection functions and optional charging and bypass functions for different project requirements.
- 500KVA and 600KVA capacity options
- Three-phase AC output
- Pure sine wave output
- High-capacity battery system compatibility
- Copper transformer configuration
- AC bypass function
- Optional AC charger
- Optional solar charger
- Optional generator input
- Multiple protection functions
System Configuration
The inverter connects with battery storage systems and supplies AC power to connected loads. Users can add charging and backup functions according to the system design.
Optional Functions
The system supports different configurations for large-scale power applications. Users can select AC chargers, solar chargers, generator input, and AC bypass functions. The system can also integrate communication and monitoring functions according to project requirements.
Applications
The 500KVA and 600KVA Three Phase Pure Sine Wave Inverters support large commercial and industrial power systems. They serve energy storage projects, backup power systems, factories, commercial facilities, data-related infrastructure, and other high-power applications.
