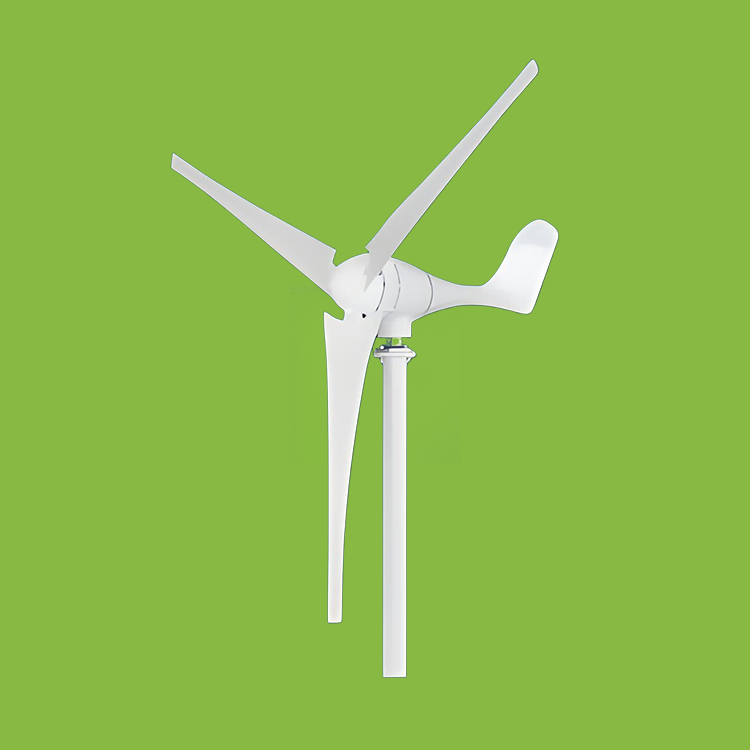

500W 600W 800W Wind Turbine Definition
500W 600W 800W wind turbines are compact and efficient renewable energy devices. It utilizes a direct-drive permanent magnet generator to convert wind energy into electricity with low starting wind speeds. These turbines are designed for easy integration into various applications, including small wind farms and microgrid systems.
Technical Specifications
| Model | M2-500 | M2-600 | M2-2-600 | M2-2-800 |
| Rated power | 500W | 600W | 600W | 800W |
| Rated voltage | 12V/24V/48V | 12V/24V/48V/96V | ||
| Start the wind speed | 2m/s | |||
| Rated wind speed | 12m/s | |||
| Safe wind speed | ≤50m/s | |||
| Fan blade diameter | 1.6m | 1.65m | 1.65m | 2m |
| Number of blades | 3/5 | |||
| Blade material | Reinforced nylon fiber | |||
| Fuselage material | Reinforced die-cast aluminum | |||
| Magnetic steel material | NdFeB | |||
| Generator type | Three-phase AC permanent magnet synchronous generator | |||
| Control mode | Electromagnetic brakes | |||
| Wind direction adjustment | Automatically adjusts the windward angle | |||
| Net weight | 15kg | 16kg | 16kg | 20kg |
| Gross weight | 17kg | 18kg | 18kg | 22kg |
| Packing size | 930*360*270mm | 1070*360*265mm | ||
500W 600W 800W Wind Energy Turbine Features
1. These wind turbines feature an automatic wind direction adjustment system that ensures optimal energy capture at all times.
2. They incorporate advanced safety measures such as electromagnetic brakes and automatic regulation of the angle of attack, which protect the turbine in extreme weather conditions based on real-time data monitoring.
3. The turbines have a lightweight and durable design, with an aluminum alloy housing that provides excellent heat dissipation and resistance to corrosion.
4. The blades are manufactured using new processes. They feature optimized aerodynamic designs. These designs make installation easier and significantly increase the wind energy utilization coefficient, thereby boosting annual electricity generation.
5. The turbine’s construction is user-friendly, with lightweight components that are easy to install, maintain, and disassemble, making it suitable for a wide range of applications.

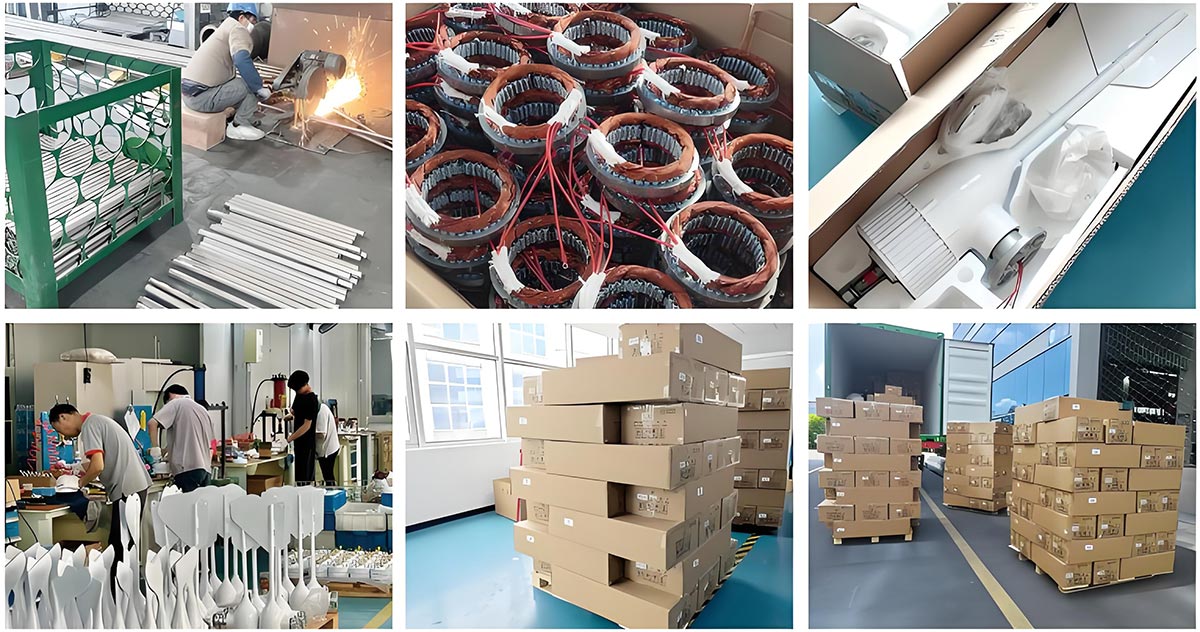

Production Real-shot
