5kw off grid solar system specification
The 5kw off grid solar system consists of 5kw solar panels, 5kw off grid solar inverter, 10kWh lithium batteries, and a solar bracket mounted on the roof. The system can generate between 600kwh and 800kwh of electricity per month, which is enough for a family of 4 to 6 people.
The system can be powered by solar panels, main grid power, and generator, and can be set to prioritize charging and discharging and battery charging and discharging times. It can help you save money on your electricity bill.
In addition, the 5000 watt off grid solar system has Wifi or GPRS remote monitoring function, you can download the software on your cell phone and computer to view the system’s working condition in real time. The system will also receive alerts on your cell phone when there is a fault alarm.

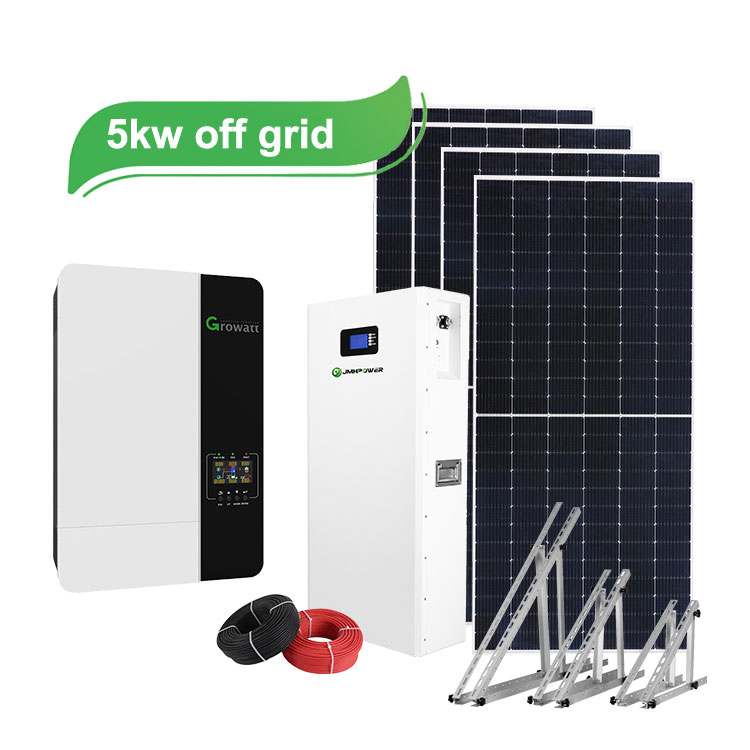

Complete 5kw Off Grid Solar Power System kit
| Item | Model | Description | Quantity |
| 1 | 550Watt | Mono solar panel | 9pcs |
| 2 | Growatt Off Grid Solar Inverter | Power: 5KW | 1set |
| Single Phase: 230V | |||
| 3 | Lithium Battery | 48V 184Ah/200Ah | 1pcs or more |
| 4 | Mounting System | Whole set for roof and ground | 1 set |
| 5 | PV Cables | 4mm2 PV cables | 200m |
| 6 | PV connector | Rated Voltage:1000V | 10 pairs |
5kw off grid solar system price
The 5kw off grid solar system price is around $2500. This includes the 10kWh battery. The battery capacity can be adjusted to 5kWh, 15kWh, or 20kWh, and the price will vary considerably. In addition, we provide free PV racking design and system design. You can find a professional PV installation company in your local area to do the installation or install it yourself.
5kw off grid solar system Battery type
Our 5kw off gird solar kit comes with a 10kWh Li-ion battery, and as well as being able to adjust the total capacity of the battery to suit your needs, you can also choose a cheaper gel battery. This way your initial investment will be less, but you will need to replace the batteries after 3 years.
If you don’t have a need for batteries, our systems can also work without batteries.
- Solar Panel Efficiency:21.28%
- Solar Panel Size: 2279*1134*35mm
- Cell size:182mmx182mm
- Voltage：41v
- Wind/Snow Load: 2400Pa/5400Pa
- Maximum system Voltage: 500VDC
- Warranty: 25 years
- Advanced MPPT with up to 99.9% efficiency
- Max Hybrid Charging current: 120A
- Exclusive Li-ion battery BMS dual activation
- Easy to install and simple to use
- Outputs high-quality pure sine wave AC power
- Charging: Solar panel, Utility, Generator
- Warranty: 5 years
- Model: 51.2v 200Ah Lifepo4 Battery
- Storage Energy: 10kWh
- Maximum Discharge Current: 200A
- Max. Battery Quantity in Parallel: 64
- Cycle Life: ＞6000 Times
- Warranty: 8 years
Customized Solar Mounts Design
- Home Tile Sloped Roof
- Home Metal Pitched Roof
- Horizontal floor or roof
- Parking Plant Roof
Solar Power System Accessories
- PV combiner box
- DC battery breaker
- DC battery cable
- DC solar cable
- MC4 tools
- Assembly tools
