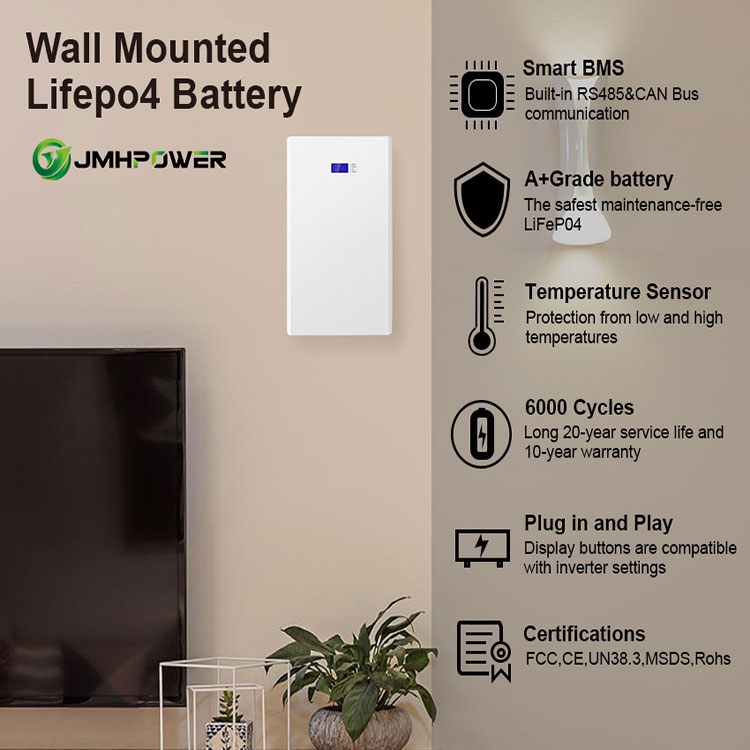

Wall Mount Small 5kWh Battery Backup Bank for Home
The JMHPOWER 5kWh wall-mounted battery is designed to be used as a domestic energy storage battery in combination with a photovoltaic system or for charging electric vehicles. It can be connected to an inverter without complicated commissioning. The wall-mounted design saves floor space in the house. It is farther away from small animals on the ground and prevents small children from accidentally touching the battery.
Advantages and features of the 5kWh battery
5kWh lithium battery converts wind, solar, and other renewable energy sources into stored electricity for use during the night or in case of power shortages.
Fast charge and discharge: The regular model has a charge and discharge rate of 0.5C, which means that the battery can be fully charged or discharged in 2 hours. If you need a battery with a faster charge/discharge rate, we can also customize it to meet your needs.
Battery Lifespan and cycle times: The battery is made of high-cycle lithium iron phosphate cells, which can be cycled 6,000 times at 80% discharge. The design service life is 15 years and the warranty time is 8 years.
BMS: The battery comes with a battery management system module, which can monitor the operating status of the battery in real time to ensure the safe working of the battery.
Wide temperature range: Generally speaking, the 5kWh battery can work in the temperature range of -20℃~75℃, but considering that the performance of the battery will be much worse when the temperature is extremely low and the battery will generate a little heat itself when working. So the recommended operating temperature range is -10℃~55℃.
Flexibility: A 5kWh battery module can be paralleled to form 10kWh, 15kWh, 20kWh, 30kWh, 50kWh and so on, and up to 64 of them can be used in parallel. This design is more flexible, you can choose the number of battery modules according to the actual power demand. It is also possible to increase the number of batteries if you want to do so after a period of use.
Small loss: the battery in normal room temperature placed in three months self-discharge rate of 3%, placed in half a year self-discharge rate of 6%, placed in 1 year, self-discharge rate of 12% or less. So even if the battery is not used for a long time, it will not lose a lot of energy.
Safe and Reliable: The battery has passed the heavy load test, puncture test, drop test, aging test, short-circuit test, high and low temperature test, and forced discharge test conducted by well-known professional testing organizations. The corresponding test reports and certificates have been issued.
Solar Battery Storage Price List
| Battery Capacity | Price |
|---|---|
| 5kWh(48v 100ah) | around $700 |
| 10kWh(48V 200ah) | around $1200 |
| 15kWh(48v 280ah) | around $1700 |
| 20kWh(48v 400ah) | around $2400 |
| 50kWh(48v 1000ah) | around $6000 |
We also offer batteries such as 100kWh, 150kWh, 200kWh, 500kWh, 1MWh, allowing customization to meet different needs. Additionally, the cost of lithium battery cells fluctuates, resulting in variable prices for our lithium batteries. If you would like to inquire about specific product prices, please feel free to contact us.
Specifications of 5kWh 48V 100h Lithium Ion Solar Power Battery
| Nominal Voltage: | 48V （16S 51.2V ) |
| Nominal capacity: | 100Ah |
| battery type: | 16S1P Lifepo4 3.2v 100AH |
| weight: | ≤50Kg |
| Dimensions: (LxWxH) | Dimensions of the battery case：620*460*195mm |
| Charging end voltage: | 58.4V16S |
| Connector | M8 bolt screw |
| LED display | LCD display (voltage, capacity, watts, etc.) |
| Low Voltage Protection: | 40V(pack)/2.5V(cell) |
| charging mode: | 0.2C(0.5A) Constant current/constant voltage |
| Communication protocol: | RS485/RS232/CAN |
| Maximum Continuous Discharge Current: | 100A |
| Discharge Over Current Protection: | 100A |
| Over Voltage Protection: | ＞57.6V |
| Operating temperature: | Charge：0~45℃ |
| discharge：-10~55℃ | |
| Storage temperature (60-80% SOC storage): | -10~45℃ |
| Cycle life: | More than 6000 times – 8000 times |
| BMS Protection: | Overcharge, overdischarge, overcurrent, short circuit |
5kWh battery applications:
Due to its high energy density and robust design, it is widely used in home energy storage, factory energy storage, small commercial organizations, hospitals, ships, sailboats, subways, unmanned telecommunication base stations, transmission equipment, radios, antennas, and network communication equipment, satellite ground stations, microwave communication equipment, mining power supply, camping batteries and so on.
