60kw 70kw 80kw 90kw solar energy system specification
The 60kw 70kw 80kw 90kw solar power system is mainly composed of solar panels, solar inverter, lithium battery system, solar mounting bracket and so on, which is suitable for medium-sized industrial and commercial power consumption places, such as communities, hotels, factories, office buildings, hospitals, schools and so on.
The system has grid-connected, off-grid and hybrid three programs, we can help you design a suitable program for you according to your budget, the power of the power equipment, the monthly electricity consumption, the amount of solar radiation in your city.

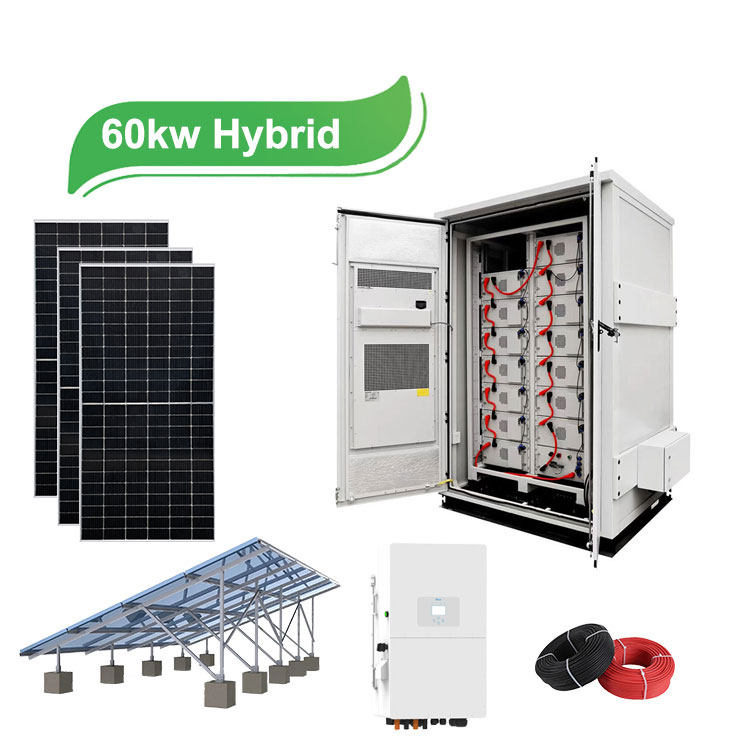

Complete 60kw 70kw 80kw 90kw hybrid Solar Power System
| Item | Model | Description | Quantity |
| 1 | 550Watt | Mono solar panel | 110pcs or more |
| 2 | Hybrid Solar Inverter | Power: 30kw/40kw/50kw | 2set |
| 3 phase:380V | |||
| 3 | Lithium Battery | 100kWh | 1set or more |
| 4 | Mounting System | Whole set for roof and ground | 1 set |
| 5 | PV Cables | 6mm2 PV cables | 300m |
| 6 | PV connector | Rated Voltage:1000V | 20 pairs |
- Solar Panel Efficiency:21.28%
- Solar Panel Size: 2279*1134*35mm
- Cell size:182mmx182mm
- Voltage：41v
- Wind/Snow Load: 2400Pa/5400Pa
- Maximum system Voltage: 500VDC
- Warranty: 25 years
- Advanced MPPT with up to 99.9% efficiency
- EU and US market standard
- Exclusive Li-ion battery BMS dual activation
- Easy to install and simple to use
- IP20 protection
- Charging: Solar panel, Utility, Generator
- 100% unbalanced output, each phase
- Warranty: 5 years
- Model: 100kWh Lifepo4 Battery
- Max. Battery Quantity in Parallel: 64pcs
- Nominal Voltage: 512V
- Cycle Life: ＞6000 Times
- Warranty: 8 years
Customized Solar Mounts Design
- Home Tile Sloped Roof
- Home Metal Pitched Roof
- Horizontal floor or roof
- Parking Plant Roof
Solar Power System Accessories
- PV combiner box
- DC battery breaker
- DC battery cable
- DC solar cable
- MC4 tools
- Assembly tools
How much power does a 60kw solar system generate per day?
A 60kw PV panel can generate about 190kWh~330kWh of electricity per day. The amount of electricity generated depends on the latitude of the geographic location where the PV panel is installed, the lower the latitude the higher the light intensity and the higher the amount of electricity generated. Designing the optimum tilt angle of the PV panels according to the latitude and keeping the panels clean will maximize the efficiency of the PV panels.
60kw solar system battery selection
For a 60kw solar system, we usually recommend a battery size of 50kWh to 200kWh. The amount of battery capacity depends on the power consumption of the main load after 17:00. If the load is mainly used during the daytime, it is possible to consider not having batteries.
How much money can I save with a 60kw solar system?
On average, a 60kw solar kit will save you about $13,000 per year. If you choose a grid-connected system, it will pay for itself in about 2 years. For off-grid and hybrid systems, it will pay for itself in 3-5 years. You can continue to earn income from your PV system for at least 30 years.
How long does a 60 kw solar system last?
A 60kw solar system can last for more than 30 years, during which time the inverter and batteries may need to be replaced, as well as the PV mounts, cables, circuit breakers, etc. over time.
What can a 60kw solar system run?
It can work for loads up to 60kw total power. If the load is inductive then no more than 30kw can be started at the same time.
60kw 70kw 80kw 90kw Solar Energy Projects
