6kw off grid solar energy system specification
The 6kw off grid solar system consists of 12 pieces 550watt solar panels, a 6kw off-grid inverter, storage batteries, solar mounts racking, and other accessories. This is sufficient for an average home.
The system is equipped with a 10kWh battery that can power a 6kw load for 1.5 hours. If the power consumption is high at night, it is necessary to increase the capacity of the battery.
It has a wifi or GPRS option, which allows remote monitoring of the PV system’s power generation from a cell phone or computer, as well as daily and monthly power generation statistics, fault alarms, and more.

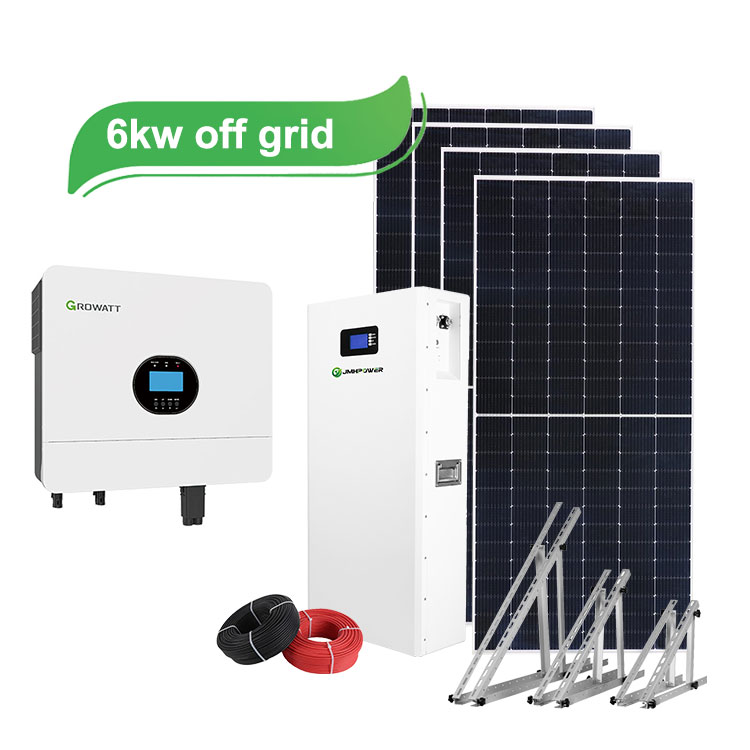

Complete 6kw Off Grid Solar System kit
Item | Model | Description | Quantity |
1 | 550Watt | Mono solar panel | 12pcs |
2 | Growatt Off Grid Solar Inverter | Power: 6KW | 1set |
Single Phase: 230V | |||
3 | Lithium Battery | 48V 184Ah/200Ah | 1pcs or more |
4 | Mounting System | Whole set for roof and ground | 1 set |
5 | PV Cables | 4mm2 PV cables | 200m |
6 | PV connector | Rated Voltage:1000V | 10 pairs |
6kw off grid solar system price
The 6kw off grid solar system price is around $2800. The Final price of the system depends on how much battery capacity you need. If you use a lot of electricity at night you will need a 15kWh or 20kWh battery. If less then a 5kWh battery will be sufficient. Feel free to contact us for a quote.

- Solar Panel Efficiency:21.28%
- Solar Panel Size: 2279*1134*35mm
- Cell size:182mmx182mm
- Voltage:41v
- Wind/Snow Load: 2400Pa/5400Pa
- Maximum system Voltage: 500VDC
- Warranty: 25 years
- Advanced MPPT with up to 93% efficiency
- Dual MPP trackers
- Exclusive Li-ion battery BMS dual activation
- Easy to install and simple to use
- Outputs high-quality pure sine wave AC power
- Charging: Solar panel, Utility, Generator
- IP20 Protection degree
- Warranty: 5 years


- Model: 51.2v 200Ah Lifepo4 Battery
- Storage Energy: 10kWh
- Maximum Discharge Current: 200A
- Max. Battery Quantity in Parallel: 64
- Cycle Life: >6000 Times
- Warranty: 8 years
Customized Solar Mounts Design
- Home Tile Sloped Roof
- Home Metal Pitched Roof
- Horizontal floor or roof
- Parking Plant Roof


Solar Power System Accessories
- PV combiner box
- DC battery breaker
- DC battery cable
- DC solar cable
- MC4 tools
- Assembly tools
