6kw on grid solar energy system specification
The 6kw on grid solar power system is made up of 12 units 550watt solar panels, a 6kw Growatt grid-tie inverter, PV mounts, and cabling, plus a smart two-way meter which counts the amount of electricity input and output from the grid each month, reducing the usefulness of the electricity bill.
The system relies mainly on powering domestic loads during the day, with excess power fed back into the mains. There is also a wifi option which can be interconnected with a mobile app to monitor the system’s power generation in real time.

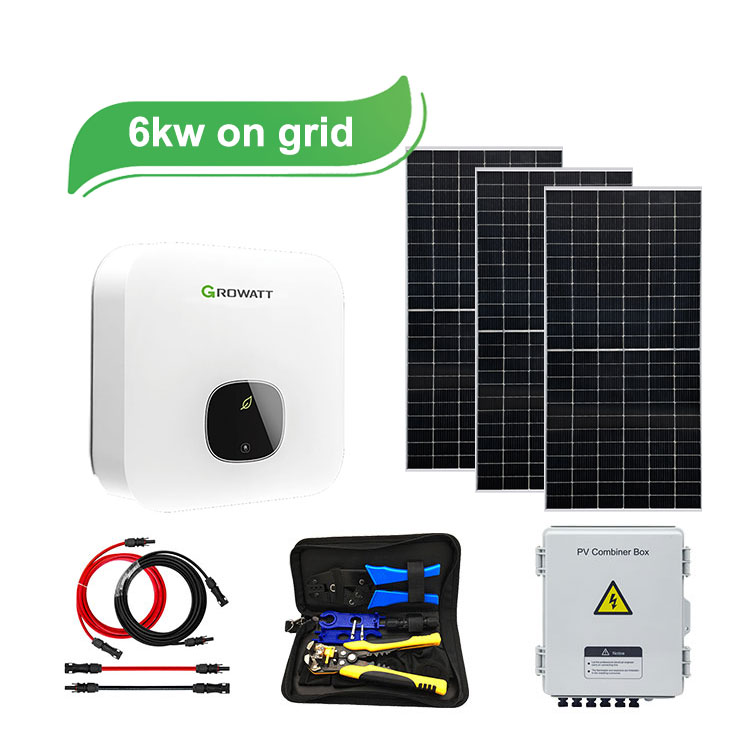

Complete 6kw On Grid Solar Power System Kit List
Item | Model | Description | Quantity |
1 | 550Watt | Mono solar panel | 12pcs |
2 | On Grid Solar Inverter | Power: 6KW | 1set |
single phase:230V 50Hz/60Hz | |||
3 | PV Combiner Box | DC circuit breaker | 1 set |
4 | Mounting System | Whole set for roof and ground | 1 set |
5 | PV Cables | 4mm2 PV cables | 200m |
6 | PV connector | Rated Voltage:1000V | 10 pairs |
6kw on grid solar system price
6kw on grid solar system price is around $1700. We offer free customisation and design of solar system solutions. Feel free to contact us for the latest discounted price.

- Solar Panel Efficiency:21.28%
- Solar Panel Size: 2279*1134*35mm
- Cell size:182mmx182mm
- Voltage:41v
- Wind/Snow Load: 2400Pa/5400Pa
- Maximum system Voltage: 500VDC
- Warranty: 25 years
Growatt 6kw Grid Tie Solar Inverter
- Maximum efficiency of 98.4%
- IP66 waterproof
- Built-in dual MPPT Solar charger controller
- Max PV input 8100watt


Accessories And Tools
- PV combiner box
- DC 4mm² Cable
- MC4 Connectors
- Assembly tools
Customized Solar Mounts Design
- Home Tile Sloped Roof
- Home Metal Pitched Roof
- Horizontal floor or roof
- Parking Plant Roof
