7.5KVA 10KVA 15KVA 20KVA Pure Sine Wave Inverter Product Overview
The 7.5KVA–20KVA Pure Sine Wave Inverter series provides reliable power conversion for medium- to high-capacity backup power and energy storage systems. The series includes 7.5KVA, 10KVA, 15KVA, and 20KVA models to meet different battery configurations and system requirements. It delivers pure sine wave AC output and supports flexible voltage options for residential, commercial, and industrial applications.

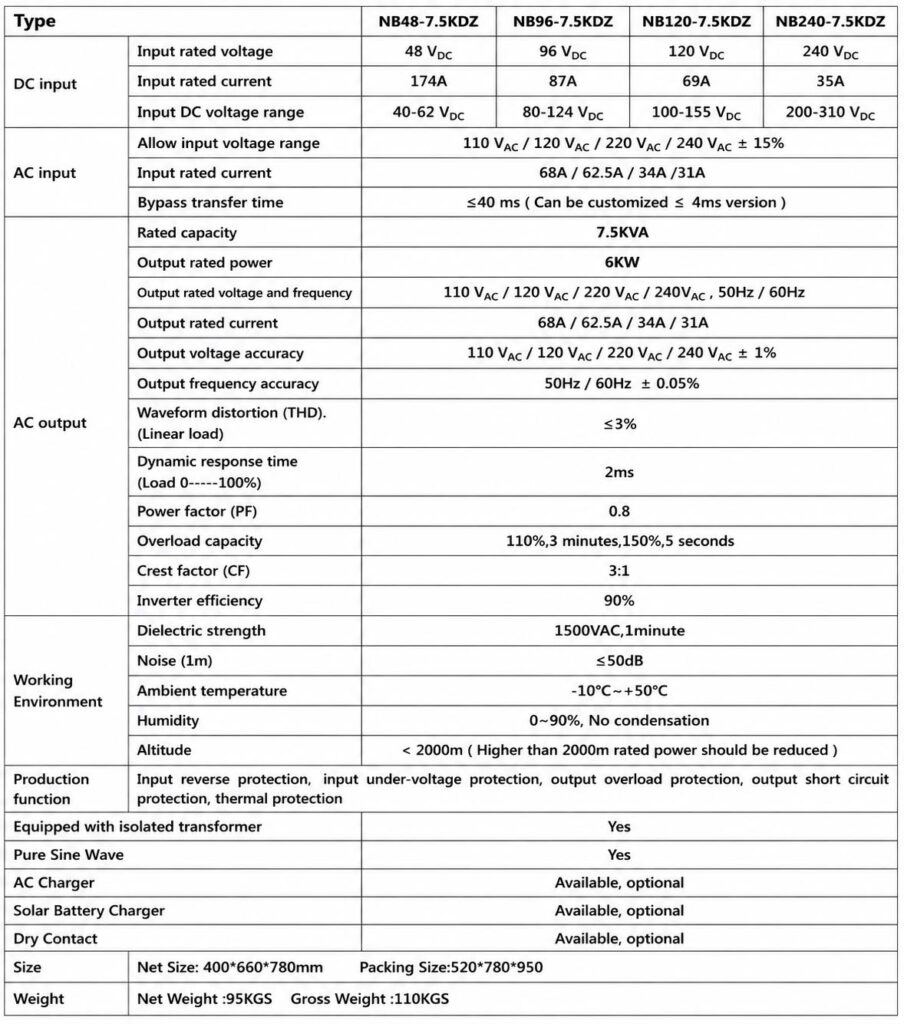

7.5KVA Off Grid Single Phase Inverter Technical Parameters
7.5KVA 10KVA 15KVA 20KVA Wind Generator Inverters Features
Power Ratings: 7.5KVA, 10KVA, 15KVA, and 20KVA
Pure Sine Wave Output: Provides clean and stable AC power for sensitive and inductive loads.
High-Capacity Design: Suitable for large residential systems, offices, commercial facilities, workshops, telecom equipment, and industrial applications.
Stable Voltage and Frequency: Designed to maintain reliable output power under changing load conditions.
Advanced Protection: Protection can include overload, short circuit, over-temperature, low/high battery voltage, and input/output abnormality protection, depending on configuration.
Input & Output
The inverter supports different DC battery voltage configurations depending on the model. AC input can be configured for 110VAC, 120VAC, 220VAC or 240VAC systems, with 50Hz or 60Hz output frequency options. Bypass transfer time and other AC input parameters can be selected according to the system configuration.
Protection Functions
The inverter includes input reverse protection, input under-voltage protection, output overload protection, output short-circuit protection and thermal protection for different operating conditions.
Optional Functions
AC Charger, Solar Battery Charger, Dry Contact, AC Bypass, Communication functions
Applications
Residential backup power, off-grid solar systems, energy storage systems, small commercial facilities, communication equipment, industrial and workshop applications, backup systems for electrical loads and so on.
