7kw on grid solar system specification
The 7kw on grid solar system is made up of 14 x 550watt PV panels, a Growatt 7kw on grid solar inverter, PV mounts and accessories. It is simple to design and can be installed at home by yourself if you have basic electrical knowledge, we will provide installation drawings, or you can get a local professional PV installation team to install it for you.
The solar panels for this 7kw grid tied system are 550watt with a 25-year warranty and the PV inverter is the Growatt brand, which is certified for grid connection in most countries around the world.

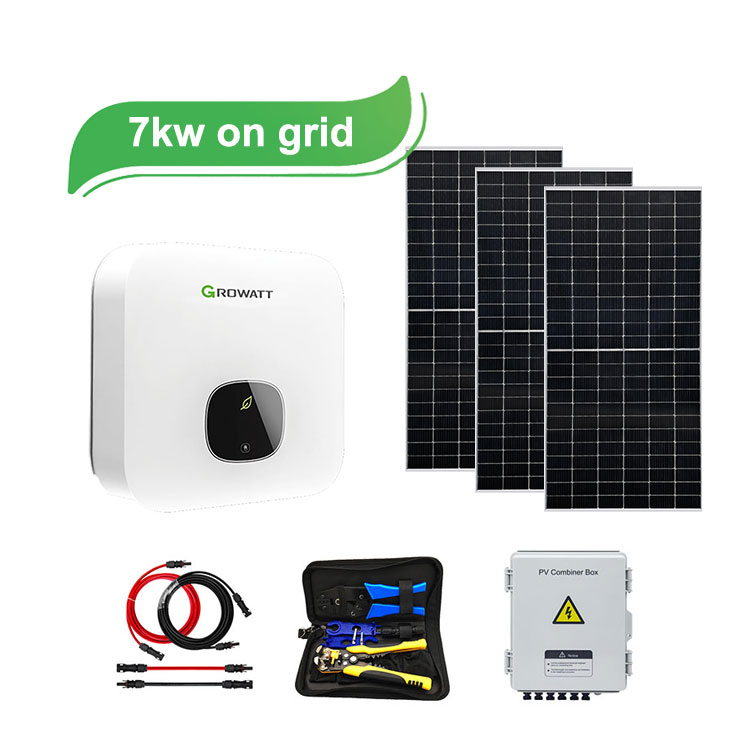

Complete 7kw On Grid Solar Power System Kit List
Item | Model | Description | Quantity |
1 | 550Watt | Mono solar panel | 14pcs |
2 | On Grid Solar Inverter | Power: 7KW | 1set |
single phase:230V 50Hz/60Hz | |||
3 | PV Combiner Box | DC circuit breaker | 1 set |
4 | Mounting System | Whole set for roof and ground | 1 set |
5 | PV Cables | 4mm2 PV cables | 200m |
6 | PV connector | Rated Voltage:1000V | 10 pairs |
7kw on grid solar system price
7kw on grid solar system price is around $1900. This price does not include ocean freight and taxes. Please contact us for a quote or to inquire about ocean freight to your country.

- Solar Panel Efficiency:21.28%
- Solar Panel Size: 2279*1134*35mm
- Cell size:182mmx182mm
- Voltage:41v
- Wind/Snow Load: 2400Pa/5400Pa
- Maximum system Voltage: 500VDC
- Warranty: 25 years
Growatt 7kw Grid Tie Solar Inverter
- Maximum efficiency of 99.5%
- IP66 waterproof
- Built-in 3 MPPT Solar charger controller
- Max PV input 12000watt


Accessories And Tools
- PV combiner box
- DC 4mm² Cable
- MC4 Connectors
- Assembly tools
Customized Solar Mounts Design
- Home Tile Sloped Roof
- Home Metal Pitched Roof
- Horizontal floor or roof
- Parking Plant Roof
