8kW 10kW 120V 240V US Split Phase Solar Inverter specification
The 8kW 10kW Split Phase Solar Inverter is an inverter specifically designed for American voltages. It can output single phase 120V and split phase 240V at 60Hz. It can also be connected in parallel with 3 inverters to produce a low voltage 3-phase output of 208V. It combines photovoltaic energy storage, utility charging and AC/DC conversion into one photovoltaic inverter.
It uses advanced algorithms to maximize the energy efficiency of the solar power system. The PV system can be completely off-grid if the design is reasonable. All the electricity consumed can be generated by the PV panels. The utility power can be used as a supplemental power source in areas with continuous rainy days or when the battery capacity is not very high.
8kW 10kW Split Phase Solar Inverter features
1. All-in-one design: This inverter combines a solar charge controller and an inverter. It makes your installation easier.
2. Each phase voltage can be automatically adjusted within the range of 100V, 105V, 110V, 120V.
3. Dual MPPT input: the inverter has two MPPT PV charger interfaces, each of which can connect to 5500watt PV panels.
4. Large LCD display: you can set the inverter parameters more clearly.
5.100% safety protection: 8kW 10kW Split Phase Solar Inverter has internal over-current protection, overload protection, over-voltage protection, etc., so that your PV system is always in a safe state.
6. Support CAB, USB, RS485 Communication: It can be connected with battery, computer and other devices for communication, recording and controlling the data of the system.
7. Wifi function: the inverter has wifi plug, you can download APP through your cell phone, connect to the inverter, real-time detection of the power generation of the PV system.
8. Parallel connection of 1~6 inverters: it can be parallel connected to 20kw, 30kw, 40kw, 50kw, 60kw power output.
8kW 10kW Split Phase US Version Solar Inverter Datasheet
| MODEL | SPI-8K-U | SPI-10K-U |
| INVERTER OUTPUT | ||
| Rated Output Power | 8,000W | 10,000W |
| Peak Power | 16,000W | 20,000W |
| Rated Output Voltage | 120Vac,single-phase /240Vac,split-phase | |
| Load Capacity of Motors | 5HP | 6HP |
| Rated AC Frequency | 50/60Hz | |
| Waveform | pure sine wave | |
| Switch Time | 10ms(typical) | |
| BATTERY | ||
| Battery Type | Li-ion /Lead-acid /User-defined | |
| Rated Battery Voltage | 48Vdc | |
| Battery Voltage Range | 40～60Vdc | |
| Max.PV Charging Current | 180A | 200A |
| Max.Utility/Generator Charging Current | 100A | 120A |
| Max.Hybrid Charging Current | 180A | 200A |
| PV INPUT | ||
| Num.of MPPT | 2 | |
| Max.PV Array Power | 5,500W+5.500W | |
| Max.Input Current | 22A+22A | |
| Max.Open-circuit Voltage | 500Vdc+500Vdc | |
| MPPT Voltage Range | 125～425Vdc | |
| UTILITY /GENERATOR INPUT | ||
| Input Voltage Range | 90～140Vac | |
| Frequency Range | 50/60Hz | |
| Bypass Overload Current | 63A | |
| GENERAL | ||
| Dimensions | 620*445*130mm | |
| Weight | 27kg | |
| Protection Degree | IP20,indoor only | |
| Operating Temp.Range | -10~55℃,>45℃ derated | |

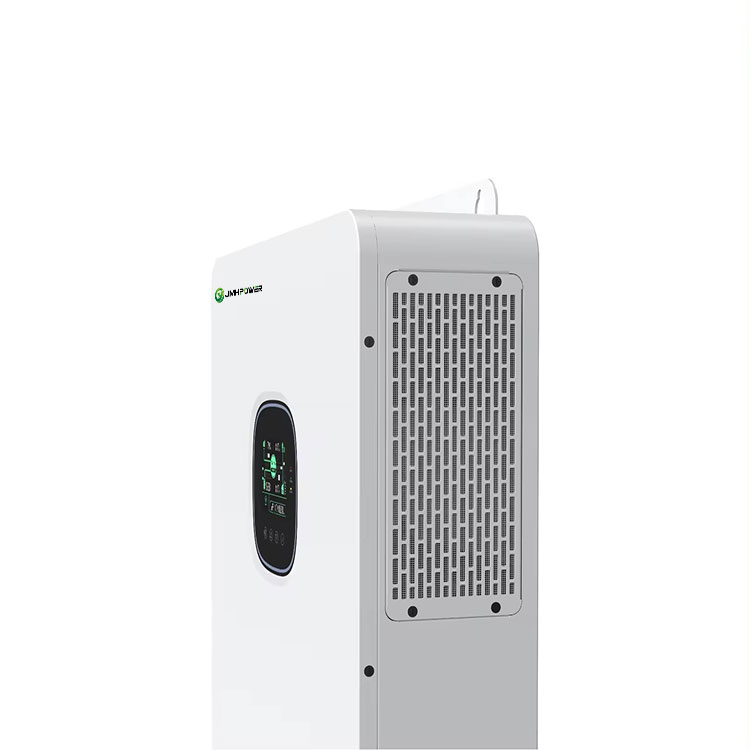

| Cooling Method | intelligent air cooling | |
| Warranty | 18 months | |
| COMMUNICATION | ||
| Embedded Interfaces | RS485 /CAN /USB /Dry contact | |
| External Module(optional) | Wi-Fi/GPRS | |
