8KVA 10KVA Hybrid Solar Inverter Product Details
The 8kw 10kw hybrid solar inverter can meet the needs of most homes and small businesses with PV systems. It can power loads through PV panels, mains power, and generators. It can also be used with batteries to make the output of the system more stable.
The maximum output power of this inverter is 10kw, and it can load a 6HP motor, which can load most household appliances.
8KW 10KW Hybrid Solar Inverter Overview
At midday when there is more sunlight it is solar panels provide the power and excess power is stored in the solar battery, at night and in the morning when there is not so much sunlight, the battery provides power to the loads first, and if the loads are larger, the utility power will also supplement the power supply.

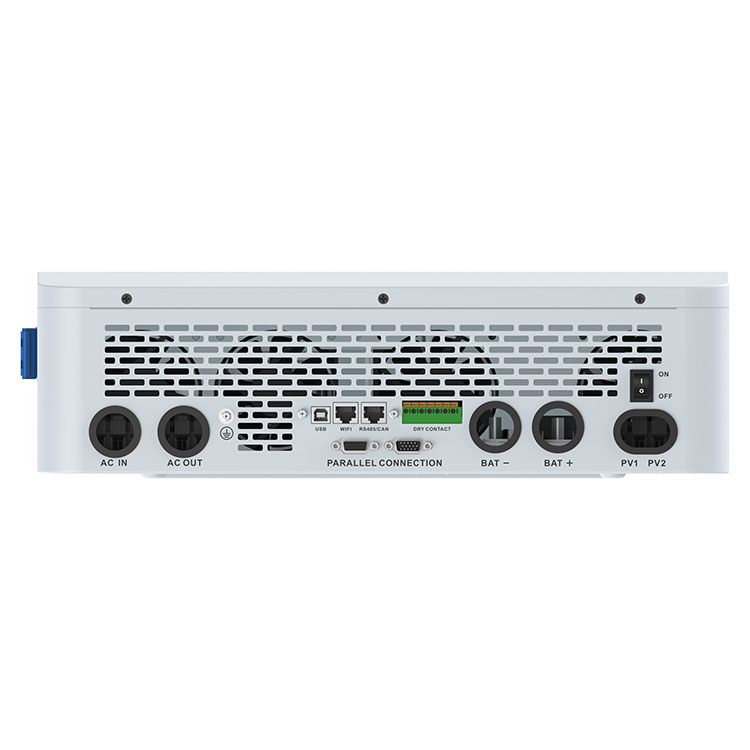

The integrated design makes the connection of the PV system easier. The PV array can be directly connected to the inverter through the MC4 terminals. As the control center of the whole PV system, the inverter not only converts AC and DC currents and regulates voltage, but also distributes and schedules energy by controlling various components (utility, PV panels, batteries, loads). It ensures the normal, stable and efficient operation of the system.
8KW 10KW Hybrid Solar Power Inverter Datesheet
| MODELS | SPI-8K-SP | SPI-10K-SP |
| INVERTER OUTPUT | 8,000W | 10,000W |
| Rated Output Power | 16,000W | 20,000W |
| Max. Peak Power | 230Vac, single-phase / three-phase, be paralleled | |
| Load Capacity of Motors | 5HP | 6HP |
| Rated AC Frequency | 50/60Hz | |
| Waveform | Pure sine wave | |
| Switch Time | 10ms (typical) | |
| Output Mode | Off-grid (default) / Hybrid | |
| BATTERY | ||
| Battery Type | Li-ion / Lead-acid / User-defined | |
| Rated Battery Voltage | 48Vdc | |
| Battery Voltage Range | 40～60Vdc | |
| Max. MPPT Charging Current | 180A | 200A |
| Max. Mains / Generator Charging Current | 100A | 120A |
| Max. Hybrid Charging Current | 180A | 200A |
| PV INPUT | ||
| Num. of MPPT Trackers | 2 | |
| Max. PV Array Power | 5,500W+5,500W | |
| Max. Input Current | 22A+22A | |
| Max. Open Circuit Voltage | 500Vdc+500Vdc | |
| MPPT Voltage Range | 125～425Vdc | |
| MAINS / GENERATOR INPUT | ||
| Input Voltage Range | 90～275Vac | |
| Frequency Range | 50/60Hz | |
| Bypass Overload Current | 63A | |
| EFFICIENCY | ||
| MPPT Tracking Efficiency | 99.9% | |
| Max. Battery Inverter Efficiency | 92% | |
8KW 10kw Hybrid Solar Inverter Features
Single-phase and three-phase parallel output: the inverter can be connected in parallel to produce 10kw~60kw of power. Can meet most of the household and small commercial and industrial power needs.
99.9% MPPT Conversion Efficiency: The conversion efficiency of the built-in MPPT PV charge controller of the 8KW 10KW inverter is 99.9%, which is high and allows the PV panels to generate power with less loss.
Multiple Mode Selection: You can choose 4 ways to charge the battery, which are PV only, utility priority, PV priority, utility photovoltaic hybrid charging mode.
Charge and Discharge Time Setting: You can set the time period for charging and discharging the battery on the inverter according to the local electricity price at different times. This can reduce the electricity bill.
Communication interface: the inverter supports Wifi, CAN, USB, RS485 communication. The inverter can communicate with various batteries, cell phones, computers and other devices to monitor the power generation and load consumption data of the PV system in real time.
LCD Display: The standard LCD display of the inverter can help you set the parameters of the inverter more intuitively.

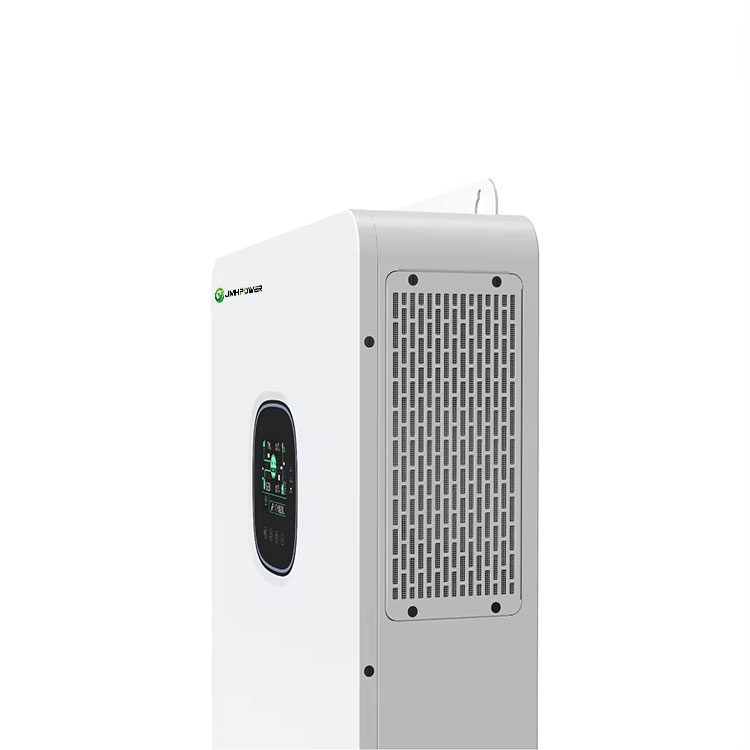

Dust cover: the dustproof design keeps the inside of the inverter away from dust and reduces the failure rate of the inverter.
8KW 10KW Hybrid Solar Power Inverter Diagram
8KW 10KW Off Grid Solar Power Inverter Paralleling Connection
8KW 10KW solar inverters can be up to 6 in parallel, both single phase and three phase outputs are available, and up to 60kw power output can meet your needs for higher power.
