9kw Solar Power System

9kw solar energy system specification

The 9kw solar power system is available in hybrid, off-grid and on grid systems. It can power a large home, or a villa, hotel, supermarket, company, small factory lights where electricity is used.

It can generate between 30kWh and 50kWh per day, depending on the latitude and altitude of your area. This depends on the latitude and altitude of your area, as they affect the amount of solar radiation.

9kw on grid system: without batteries, the electricity generated by the solar panel is used for the load and the excess electricity is fed back into the grid company.
9kw off grid system: with battery, both solar panel and utility can be used for loads, the battery is used as a back-up power source to provide electricity to the loads at night and on cloudy and rainy days.
9kw hybrid system: it combines the functions and advantages of both on grid and off grid, maximizing the use of the electricity generated by the solar panel, but at a slightly higher price.

9kw Solar System Cost

The price of a 9kw solar system is from $1,980 to $4,600 depending on how much capacity you need the batteries to have. Contact us to help you design a solar program that works for you and to provide an up-to-date solar quotation.

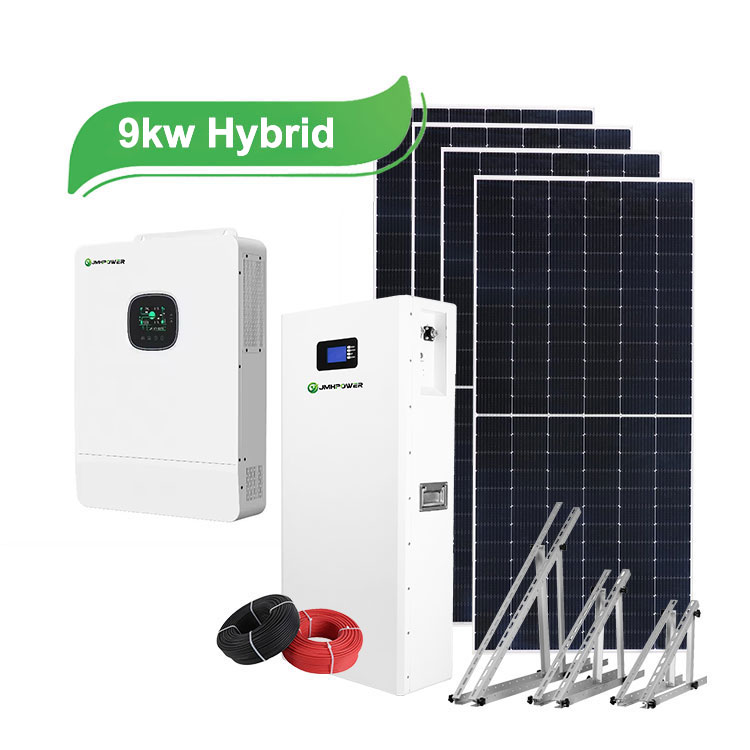

Complete 9kw hybrid Solar energy System kit

550Watt Mono Solar Panel

1. Solar Panel Efficiency:21.28%
2. Solar Panel Size: 2279*1134*35mm
3. Cell size:182mmx182mm
4. Voltage：41v
5. Wind/Snow Load: 2400Pa/5400Pa
6. Maximum system Voltage: 500VDC
7. Warranty: 25 years

10kw Hybrid Solar Inverter

1. Advanced MPPT with up to 99.9% efficiency
2. Dual MPP trackers
3. Exclusive Li-ion battery BMS dual activation
4. Easy to install and simple to use
5. Outputs high-quality pure sine wave AC power
6. Charging: Solar panel, Utility, Generator
7. IP20 Protection degree
8. Warranty: 5 years

15kWh Lithium Ion Battery

1. Model: 51.2v 280Ah Lifepo4 Battery
2. Storage Energy: 15kWh
3. Maximum Discharge Current: 250A
4. Max. Battery Quantity in Parallel: 64
5. Cycle Life: ＞6000 Times
6. Warranty: 8 years

Customized Solar Mounts Design

1. Home Tile Sloped Roof
2. Home Metal Pitched Roof
3. Horizontal floor or roof
4. Parking Plant Roof

Solar Power System Accessories

1. PV combiner box
2. DC battery breaker
3. DC battery cable
4. DC solar cable
5. MC4 tools
6. Assembly tools
