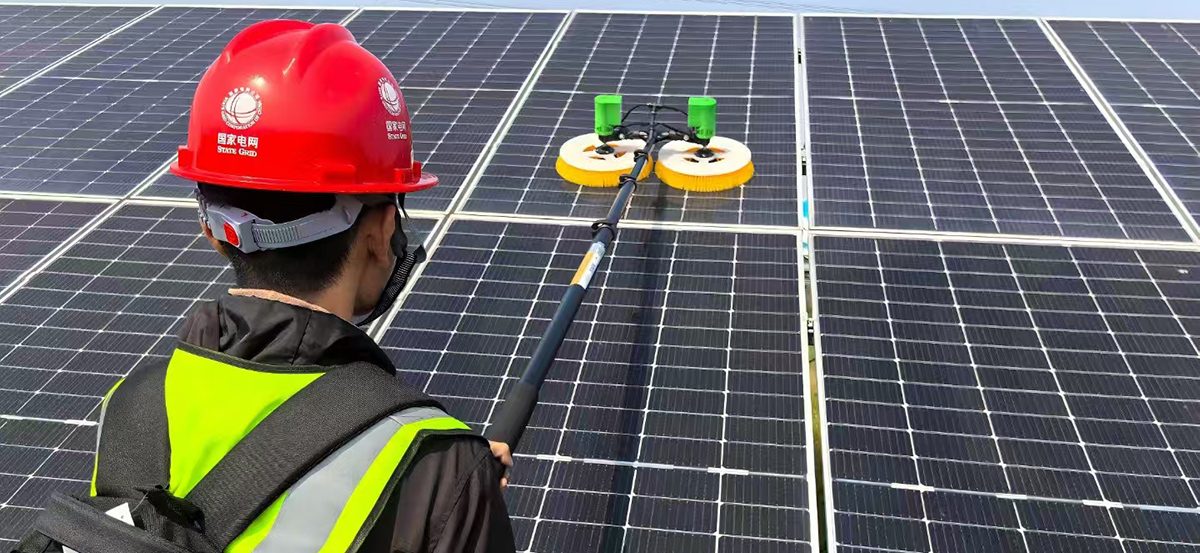

Double-headed Solar Panel Washing Brush Description
The double-headed solar panel washing brush is a highly efficient cleaning tool designed specifically for solar panels. It features dual rotating brushes with water outlets that activate when in motion, ensuring thorough cleaning. The brush offers three extendable handle options (3.5m, 5.5m, and 7.5m) for easy reach. It is particularly effective for commercial distributed solar power stations, offering higher efficiency than single-head cleaners and providing multiple power supply and water source options for flexibility.
Double-headed Solar Brush Cleaner Specifications
| Model | GP53-35 | GP53-55 | GP53-75 |
| Telescopic pole length number of sections | 1.5m-3.5m(3) | 1.8m-5.5m(4) | 2.1m-7.5m(4) |
| Wire length | 17m | ||
| Maximum diameter of telescopic rod | 35mm | 40mm | 40mm |
| Length of weater pipe | 9m | ||
| Brush head diameter cleaning width | 32cm / 65cm | ||
| Telescopic rod wall thickness | 1mm | ||
| Motor | Voltage: DC 24V / Total power:240W / Rotating speed: 300/min | ||
| Lithium battery | 24V / 26Ah | ||
| Lithium battery charger | 25.2V / 3Ah | ||
| Lithium battery charger | 4h-5h(10h-12h) | ||
| Power converter | AC 100V-240V, DC 24V | ||

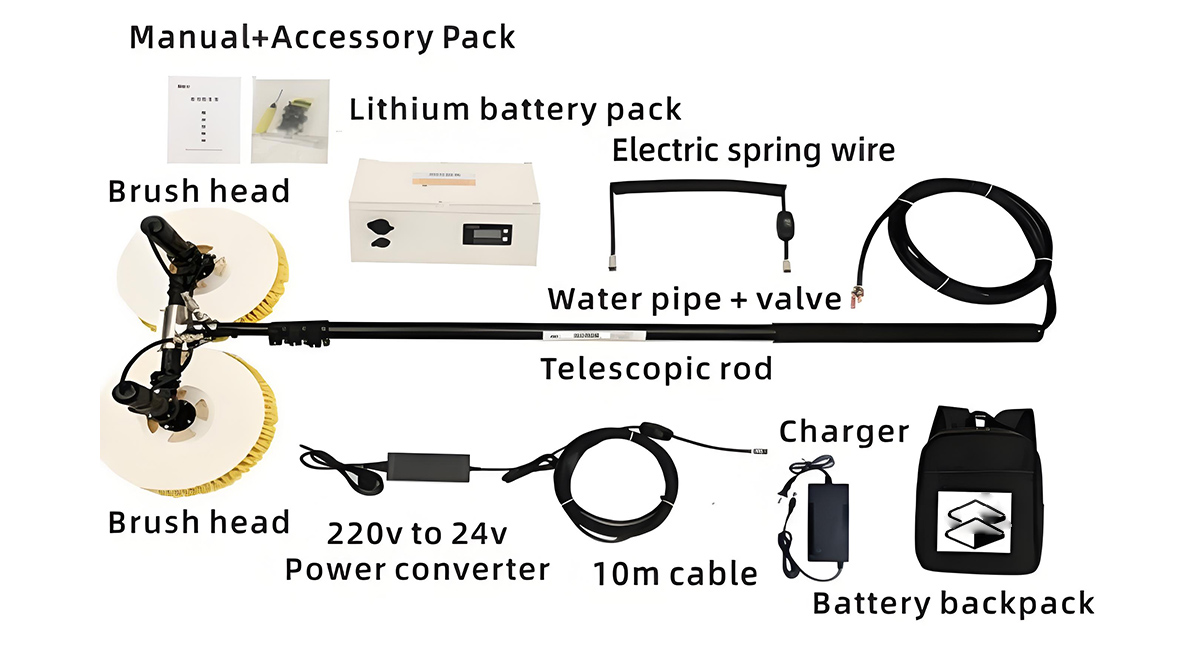

Double-headed Solar Cleaning Equipment Accessories
Manual + Accessory Pack: Contains documents like the equipment operation instructions to help users understand operation and maintenance.
Brush head: Used to contact and clean the surface of solar panels, removing stains through rotation and other movements.
Lithium battery pack: Supplies power for the equipment, ensuring power output during cleaning operations.
Electric spring wire: You may use it for equipment connection, power supply, or signal transmission. It has a certain elasticity for easy operation.
Water pipe + valve: The water pipe transports cleaning water, and the valve controls the on-off and flow of water to assist in cleaning.

Telescopic rod: Its length can be adjusted to facilitate cleaning solar panels at different positions and heights.
Charger: Charges the lithium battery pack to maintain the equipment’s battery lifespan.
220V to 24V Power converter: Converts voltage to meet the equipment’s power requirements.
10m cable: Used for power transmission, etc., providing the cable length for connecting the equipment to the power source.
Battery backpack: Can carry the lithium battery pack, making it easy to carry the power source, which is beneficial for operations in outdoor and other scenarios.
Double-headed Solar Cleaning Brush Features
Easy to operate: It is simple to use and can clean within a 7-meter range without complicated operations, making it efficient for cleaning solar panels.
Rotary design: The brush head features a louvered structure that rotates effectively to remove dust and dirt, providing good cleaning results and a wide coverage area.
Single inlet hole: The unique single inlet design concentrates water flow, achieving water-saving effects. It is also sturdy and durable with a long service life.
Integrated cavity connection: The overall structure is integrated without an installation plate, ensuring high stability and a solid connection that is not prone to loosening during use.
40mm diameter: The brush handle has a diameter of 40mm, which remains unbent even when extended to its full length, ensuring stable and reliable cleaning.
Waterproof connector: The connector has good waterproof performance, effectively preventing contact failure caused by moisture, ensuring the safe and stable operation of the equipment.
