200 watt Mono solar panel Specifications
The 200 watt Mono solar panel consists of 39 monocrystalline silicon wafers and has an output power of 200 watt. The output voltage is 24 V. It can be used to supply 24 V DC power directly, or to charge 24V, 36V, 48V batteries via a PV charge controller. It can also be connected to a PV inverter to output AC power for household loads.
A 200W PV panel can generate about 900Wh of electricity per day. It can be used to power small appliances such as stereos, computers, lights, small televisions, small fans, and so on.
200 watt Mono solar panel features

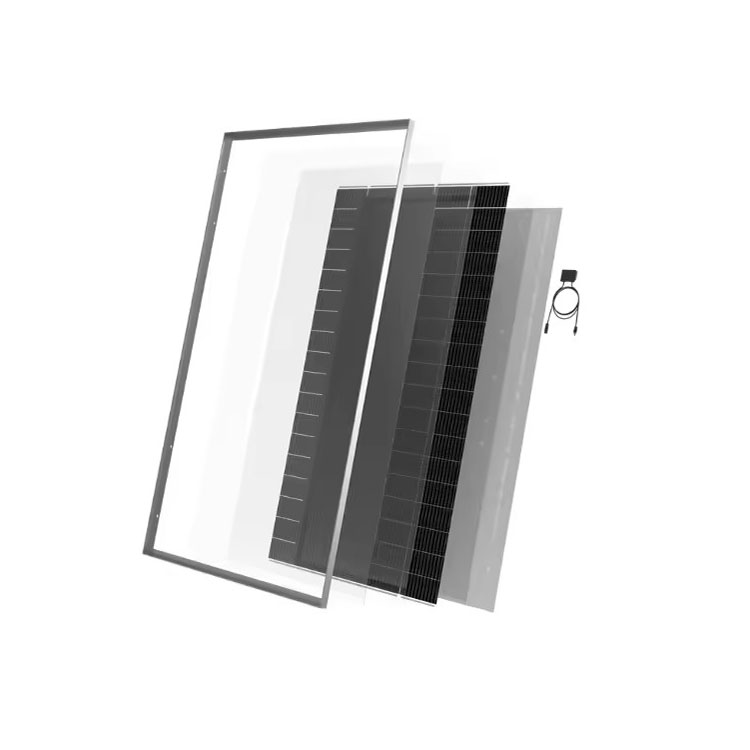

Monocrystalline Silicon Cells: The solar panel uses P-type monocrystalline silicon cells, which are more efficient and have a decay rate of less than 1% per year.
Tough Tempered Glass: Increases light transmission while protecting the cells inside the panel from external damage.
Wide range of applications: 200 watt PV panels are widely used in campers, RVs, golf carts, outdoor surveillance systems, small pumps and other small off-grid PV systems due to their lightweight design.
20.20% Conversion Efficiency: Unlike polycrystalline silicon PV modules, which only have a conversion efficiency of about 13%, monocrystalline silicon PV panels have a higher conversion efficiency. For the same area of PV panels, monocrystalline silicon improves power generation.
Aluminum alloy frame: stronger corrosion resistance, will not rust, lighter quality, higher hardness. Protects the PV panels from damage during transportation and installation as well as use.
COMBINABLE: Multiple 200watt PV panels can be connected in parallel or in series to form larger PV arrays such as 400watt, 600watt, 2kw, and more.
200 watt Mono solar panel size
200 watt Mono solar panel size is 1480*680*35mm. And we also provide customized service. We can customize the size of PV panel according to your requirements.
200 watt mono solar panel price
200 watt mono solar panel price is around $20. If the purchasing quantity is larger, we will offer discount wholesale price.
200 watt solar panel datasheet
| Lectical Parameters at （STC） | Mechanical Parameters | ||
| Power | 200W | Solar Cell(Type/Size） | Mono(210mm) |
| Module Efficiency（%） | 20.20% | Solar Cells Number | 39pcs(3*13) |
| Voltage at Pmax | 21.84V | Dimension | 1480*680*35mm |
| Current at Pmax | 9.15A | Weight | 10.6KG |

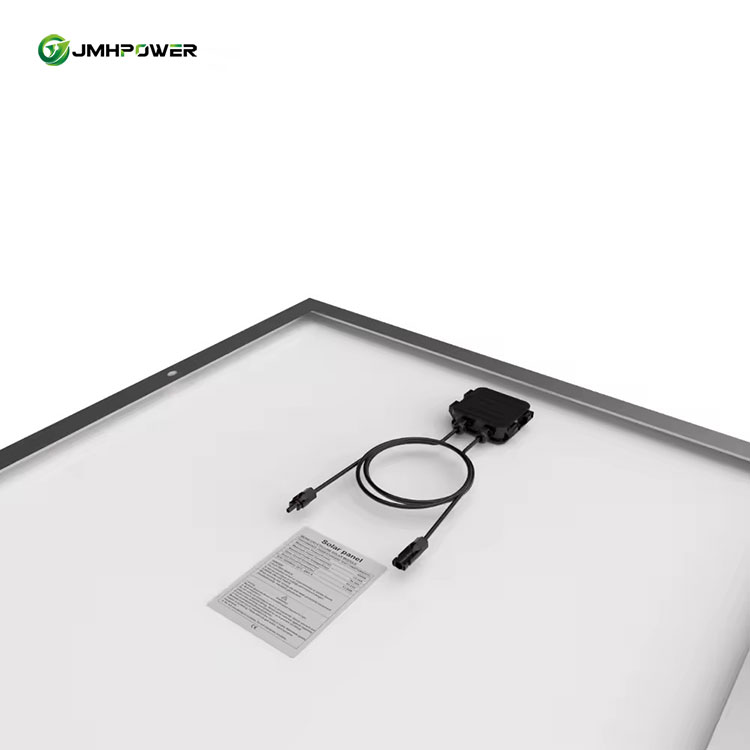

| Open Circuit Voltage | 26.67V | Junction Box | IP67/2*bypass diode |
| Open Circuit Voltage | 9.7A | Cable | 2.5mm²/700mm |
| Power Tolerance | ±3% | Connector | Original MC4/Compatible MC4 |
200watt solar panel packaging Information
| Carton Size | 1490*690*85mm | Number | 2Pcs/Ctn |
| Weight | 23KG | 20GP Container | 647 Pcs |
| Volume | 0.089Cbm/Ctn | 40HQ Container | 1619 Pcs |
