600 Watt Solar Optimizer Details

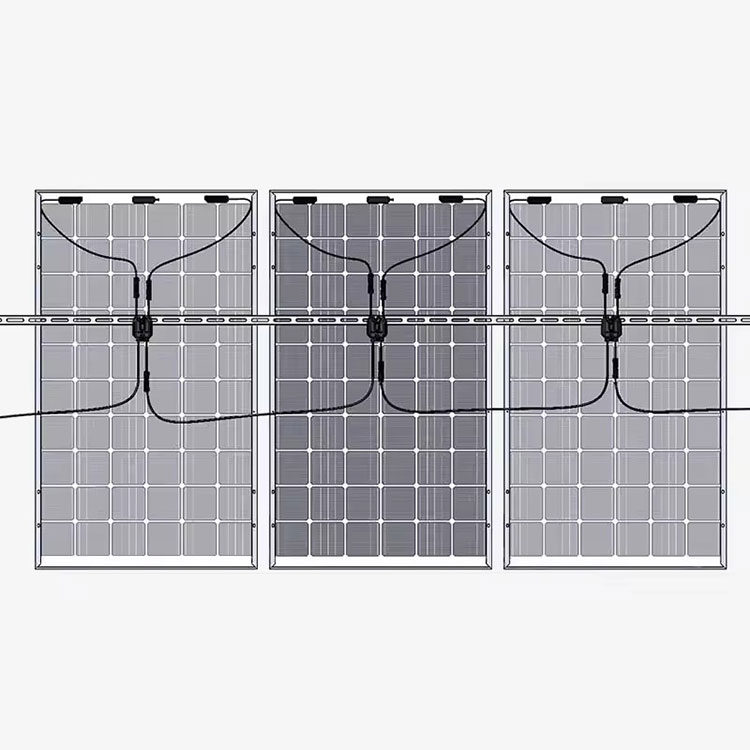

The 600watt solar optimizer can be used for solar panels with a power of up to 600watt and can be used by simply connecting it in series with the solar panels, the plug-and-play design is very easy to install. It can improve the efficiency of PV power generation and can be a good solution to the problem that the overall power generation efficiency of a string of solar panels in a system decreases due to a piece of solar panel being blocked or facing inconsistently.
In addition, it can also provide the install ability of the PV system. In case of emergency, the solar Optimizer can automatically disconnect the PV panels from each other to ensure the safety of the overall system.
Finally, the PV Optimizer can be connected to the monitoring system via RS485, making it easier to monitor, manage and operate the PV system through intelligent relationships.
Problems shall be settled down by Solar Optimizer
Hot Spot Problem
- Big Cell: 182mm size, 180℃
- Bypass diode, high current bottleneck
Current Mismatch
- Big Cell: current density decreased
- Attenuation: current difference due to module using long time
String Design
- More string module, decreasing the primary investment
- More optimized series voltage, improve the system efficiency
Solar Optimizer Datasheets
| Rated Input DC Power | 600w |
| Max Input Voltage | 55v |
| MPPT Operating Range | 7-60v |
| Max Input Current | 16A |
| Max Output Current | 14A |
| Max Output Voltage | 50V |
| Rated Voltage | 1500V DC |
| Input Connector | QC4.10/EVO2 |
| Size of Cables | 5.7/6.1/6.4mm |
| MTTP operating | 7~60V |
| Rated voltage | 1500V DC |
| Protection grade | IP68 |
