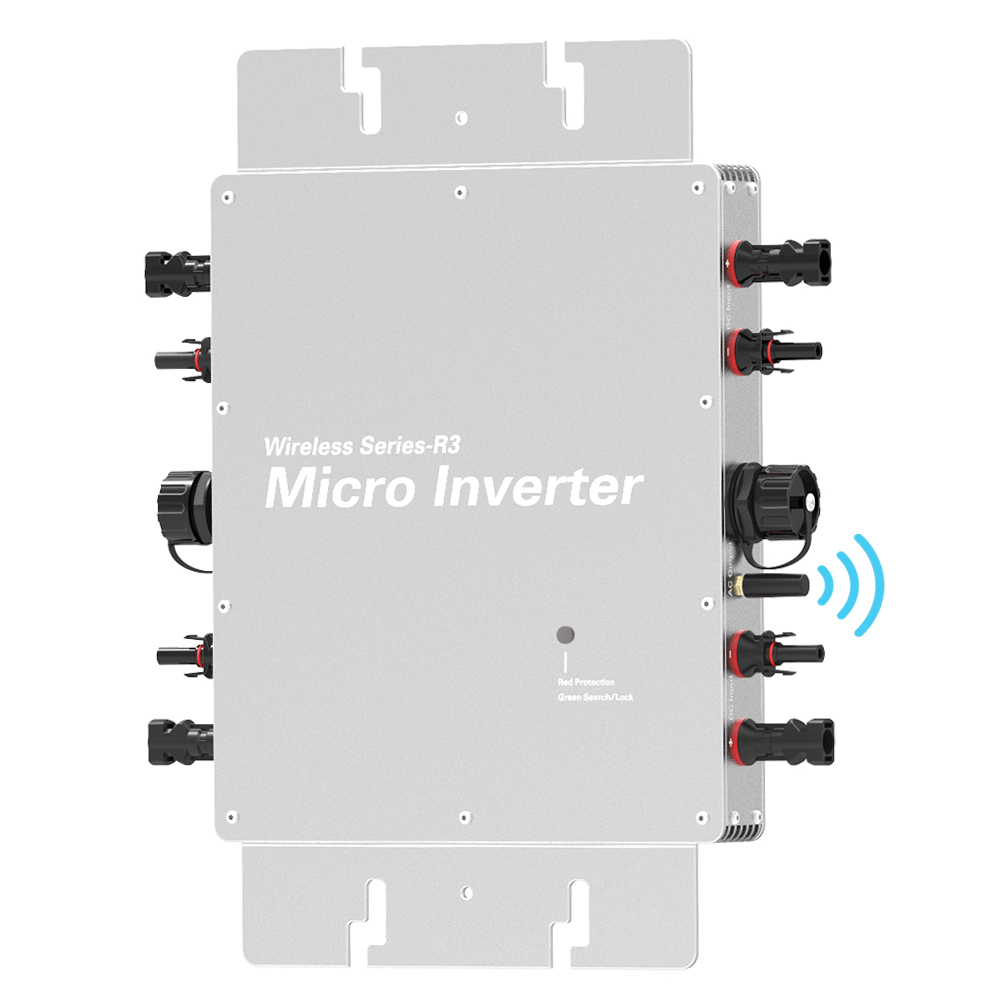

2000 watt micro solar inverter specifications
The 2000 watt micro solar inverter can be connected to 4 x 625watt PV panels, generating roughly 11kWh of electricity per day. This can meet the daytime electricity needs of an average household. The excess power can also be fed back to the grid company to reduce the electricity bill.
The 2000w micro solar inverter is IP65 rated for water and dust resistance. It can be installed outdoors, e.g. on a balcony, or fixed to the back of a PV panel. It can also be used in parallel with up to 6 other micro solar inverters so you can get up to 12kW of power output.
It is also Bluetooth enabled, so you can download the APP on your cell phone and connect the inverter to observe and monitor the operation of the PV system in real time.
The plug and play design does not require a professional electrician to install. You can also easily install it according to the manual.
2000 watt micro solar inverter datasheet
| Model | WVC-2000W | |
| Maximum input power | 2200Watt | |
| Output voltage mode | 120/230V Auto Switch | |
| PV Open circuit voltage | 30-60Voc | |
| Operating voltage range | 22-60V | |
| Starting voltage range | 22-60V | |
| short-circuit current | 90A | |
| Maximum working current | 77A | |
| Output parameters | @120V | @230V |
| Maximum Output Power | 2200watt | 2200watt |
| Rated Output Power | 2000watt | 2000watt |
| Output current | 16.6A | 8.7A |
| AC voltage range | 80-160VAC | 180-280VAC |
| Number of branch connections. | 3 units | 6units |
| AC frequency range | 48-51Hz/58-61Hz | |
| Power factor | >95% | |
| Output efficiency | ||
| Static MPPT efficiency | 99.5% | |
| Max output efficiency | 95% | |
| Loss of power at night | <0.5w | |
| Total current harmonics | <5% | |
| Appearance and technical features | ||
| Size（L×W×H）mm | 370×300×41.6 | |
| Net amount | 3.18kg | |
| Waterproof grade | IP65 | |
| Temperature range | -40°C to +65°C | |
| Heat dissipation mode | Self-cooling | |
| Communication mode | 433MHz | |
| Power transmission mode | Reverse transmission,Load priority | |
| Monitoring system | Mobile phone APP | |
| Electromagnetic compatibility | EN50081.part1 EN50082.Part1.CSA STD.C22.2 No.107.1 | |
| Power grid | EN61000-3-2 EN62109.UL STD.1741 | |
| Power grid detection | DIN VDE 0126 IEEE STD.1547.1547.1 and 1547.A | |
| certificate | Industrial Design、Patent For Invention、CE、Inmetro | |
