200kw solar power system belongs to the medium and large-scale solar power generation system, it can help enterprises to save energy and reduce emissions, using solar energy to provide electricity to enterprises. A single investment can be a very cost-effective one as you can use the solar system for decades.
We will customize a solar solution that suits your business based on the size of the total power consumption of the equipment, the area of the solar installation, the amount of electricity used each month, the main time periods of the day when electricity is used, the budget and other information.
Products Categories
Inquiry Now
Buy wholesale 150kw 200kw 250kw 300kw complete solar energy system kit with battery online. Free Customized Design according to your request.

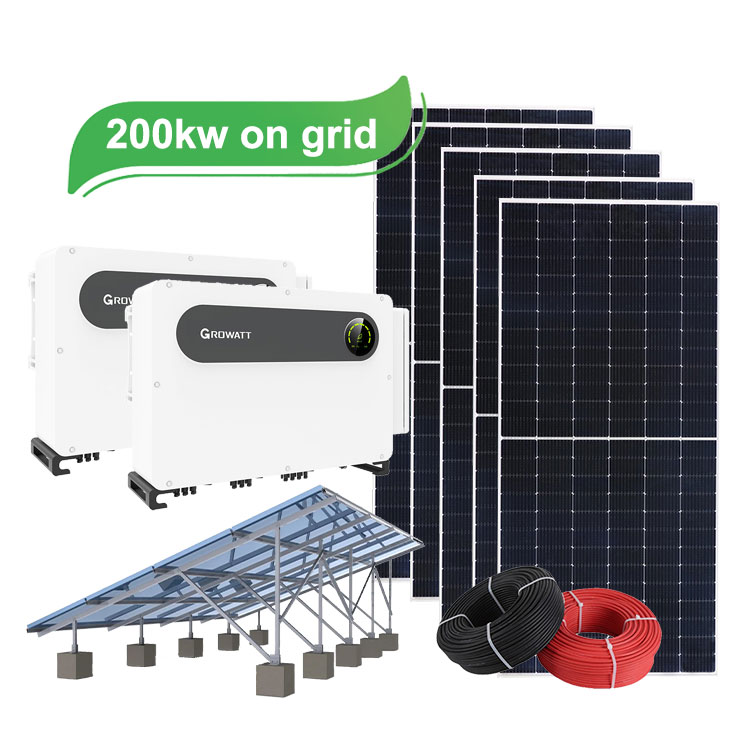

200kw on grid connected solar rooftop system, it includes solar panels, three phase 200 kw on grid solar inverter and customized solar mounting
How much electricity does a 200kw solar system produce?
A 200kW solar system can generate between 600kWh and 1000kWh of electricity per day. This depends on the different amount of solar radiation in different region. You can refer to the image below to know the peak sunshine hours per day in your area to calculate the amount of power a 200kw system can generate in your area.
For example, if the area is 5kwh per day, then the 200kw can generate 200×5=1000kWh per day.
You can also contact us and we will help you calculate the PV power generation according to your city.
200kw Solar System Size
The size of a 200kw solar system is around 900m² (9600ft²), based on 360 units of 550watt solar panels. Each 550W solar panel has dimensions of 2279 x 1134 mm.
Given the large size of each panel, careful planning and layout are crucial to maximize energy capture and performance. The total footprint must also consider spacing for maintenance and potential shading, highlighting the importance of a well-designed installation plan.
200kw Solar System Price
Prices for 200kw systems range from $26000 to $70,000, largely based on the availability of batteries and the size of the battery capacity. The prices of PV mounts, PV panels, and cables vary very little. Feel free to contact me to verify recent discounted prices.
| Model | Price |
|---|---|
| 200kw on grid solar system | Around 26000USD |
| 200kw off grid solar system | Around 65000USD |
| 200kw hybrid solar system | Around 70000USD |

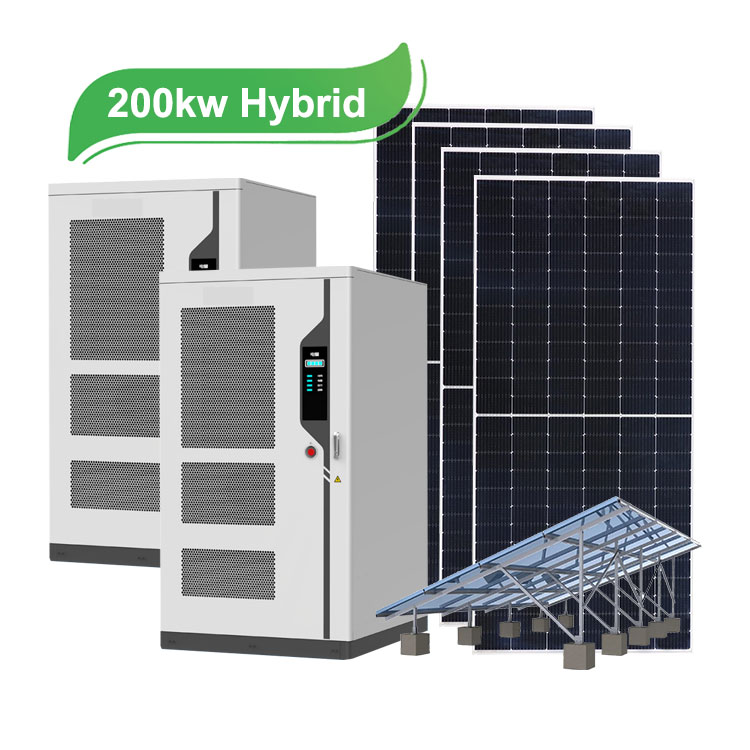

How does a 200kw hybrid solar system work?
By integrating solar panels, solar inverters, batteries, and grid interaction, the 200kw solar system efficiently generates, converts, and stores energy while ensuring a reliable power supply. This holistic approach maximizes the use of renewable energy, reduces reliance on the grid, and enhances overall energy management.
1. Solar Panel Generation: Solar panels capture sunlight and convert it into DC electricity.
2. Solar Inverter Conversion: The DC electricity from the solar panels is sent directly to the solar inverter, which converts it into AC electricity.
3. Power Aggregation: The converted AC power is then sent to the combiner box for aggregation and distribution.
4. Battery Storage: Excess AC power from the solar inverter is used to charge the solar battery for later use.
5. Load Supply: The combiner box supplies AC power to connected loads, prioritizing solar-generated electricity, with battery backup as needed.
6. Grid Interaction: The electricity meter monitors the power flow between the solar system and the grid, allowing excess power to be fed back into the grid and drawing power from the grid when necessary.
How to achieve intelligent management of 200kw solar system?
- Remote Monitoring and Control: Implement remote monitoring to track real-time performance data and enable remote adjustments for optimal operation.
- Smart Energy Management System (EMS): Use an EMS to optimize energy distribution, prioritizing the use of surplus solar power for charging or operating high-demand appliances.
- Battery Management System (BMS): Integrate a BMS to monitor and manage battery health, ensuring optimal charging and discharging cycles to extend battery life.
- Load Management: Automatically adjust power supply to connected loads based on real-time energy availability to reduce peak demand charges and optimize usage.
- Predictive Maintenance: Utilize data analytics for predictive maintenance to identify potential issues early, reducing downtime and maintenance costs.
200kw Solar Power System FAQ
Yes, a 200kw solar system can operate off-grid. It typically includes solar panels, a charge controller, batteries, and an solar inverter to store and convert energy for use when sunlight is unavailable. This setup is suitable for locations without reliable grid access and can provide a continuous power supply.
A 200kw solar system is well-suited for commercial and industrial applications. It can power large facilities such as factories, warehouses, and office buildings, reducing electricity costs and carbon footprints. Additionally, it is ideal for schools, hospitals, and agricultural operations that require a significant energy supply.
Yes, there is a difference in the power generation efficiency of a 200kw solar system across different seasons. In summer, longer daylight hours and more direct sunlight typically lead to higher energy production, but higher temperatures can slightly reduce panel efficiency. In winter, shorter days and lower sun angles decrease sunlight exposure, but cooler temperatures can improve panel efficiency. Additionally, weather conditions such as cloud cover and snow can further impact the system’s performance.
A 200kw solar system can be designed to minimize its impact on the appearance of buildings. Modern solar panels are sleek and can be integrated into the building’s design, such as being flush-mounted on rooftops or incorporated into building facades. Additionally, careful planning and installation can ensure that the solar panels blend seamlessly with the existing architecture, maintaining an aesthetically pleasing look.
A 200kw solar system may be eligible for various government subsidies and tax incentives that can significantly reduce the initial investment cost. These incentives vary by region and are designed to encourage the adoption of renewable energy. Additionally, some governments offer rebates or grants to further support the installation of solar systems.
