A 7kw solar power system can basically satisfy the daily electricity needs of a family of less than 8 people, and is also often used in hotels, apartments, and other small-scale places where electricity is used. The photovoltaic panels will provide the main electrical support, with utility power as a supplement, and the hybrid system ensures that there will be no power outages and an inexhaustible supply of electricity.
We also provide customized service, we need to make a customized solar solution and quotation according to your monthly electricity bill and your city, welcome to contact us.
Products Categories
Inquiry Now
Buy 7kw hybrid solar power system for home use, high efficiency, best price from Chinese supplier, over 30 years lifespan.
7kw on grid solar power system for sale, 99.5% efficiency, Easy to install on home roof, cheap solar power kit.
How Much does a 7kw solar system produce?
A 7kw solar panel system generates between 21kWh and 38kWh of electricity per day. Higher altitude and lower latitude areas have more solar radiation, so the amount of electricity generated will be higher. For example, in the Middle East, Africa, Australia, North America and Mexico, etc., there is a lot of power generation.
You can refer to the image below to know the peak sunshine hours per day in your area to calculate the amount of power a 7kw system can generate in your area.
For example, if the area is 5.5kwh per day, then the 7kw can generate 5.5×7=38.5kWh per day.
You can also contact us to calculate the solar power generation according to your city.
7kw Solar System Size
The size of a 7kw solar system is approximately 35m² (376ft²), based on 14 pieces of 550watt solar panels. If the solar system needs to be mounted on a horizontal floor or roof and more than one row is required, the area needed will be slightly larger to accommodate the additional rows and ensure proper spacing for optimal performance.
7kw Solar System Price
The price of a 7kw solar power system is from 1500USD to 3800USD, which is an approximate price, the exact price will need to be customized according to your needs and then the price will be calculated. The price range depends on how much battery capacity you need. If you need to use a lot of power at night, you need at least 15kWh or 20kWh lithium batteries.

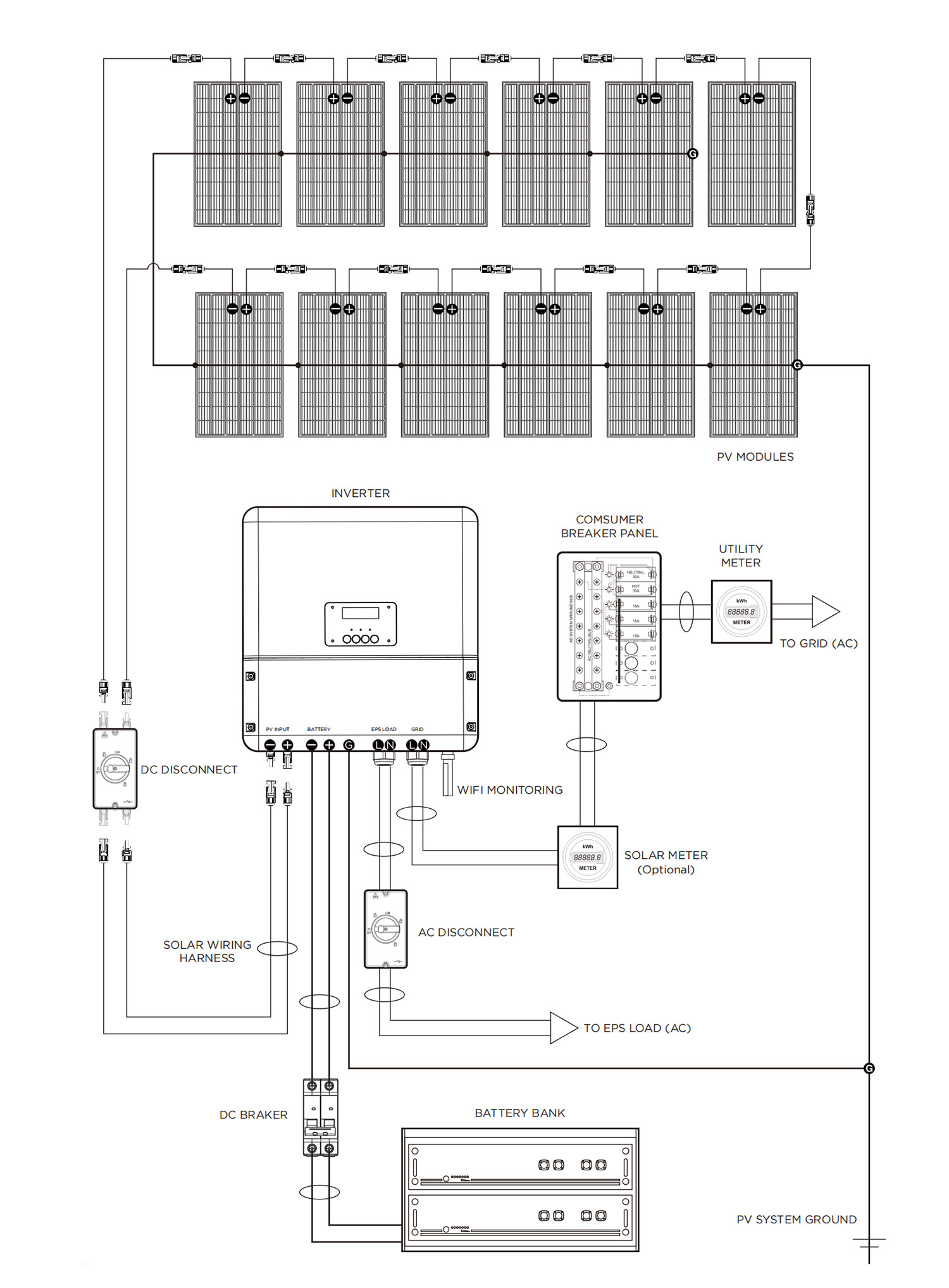

7kw Solar System Installation
7kw Solar System Load Capacity
A 7kw solar system can supply power to a load with a total power of 7kw. However, if the load includes a motor, such as those in air conditioners or washing machines, the maximum motor size that can be supported is typically 5HP.
This is due to the starting surge current that motors require, which can exceed the continuous output capacity of the solar system. When selecting a solar system to support motor loads, it’s important to consider the motor’s starting current and the inverter’s capacity to handle these surges without overloading.

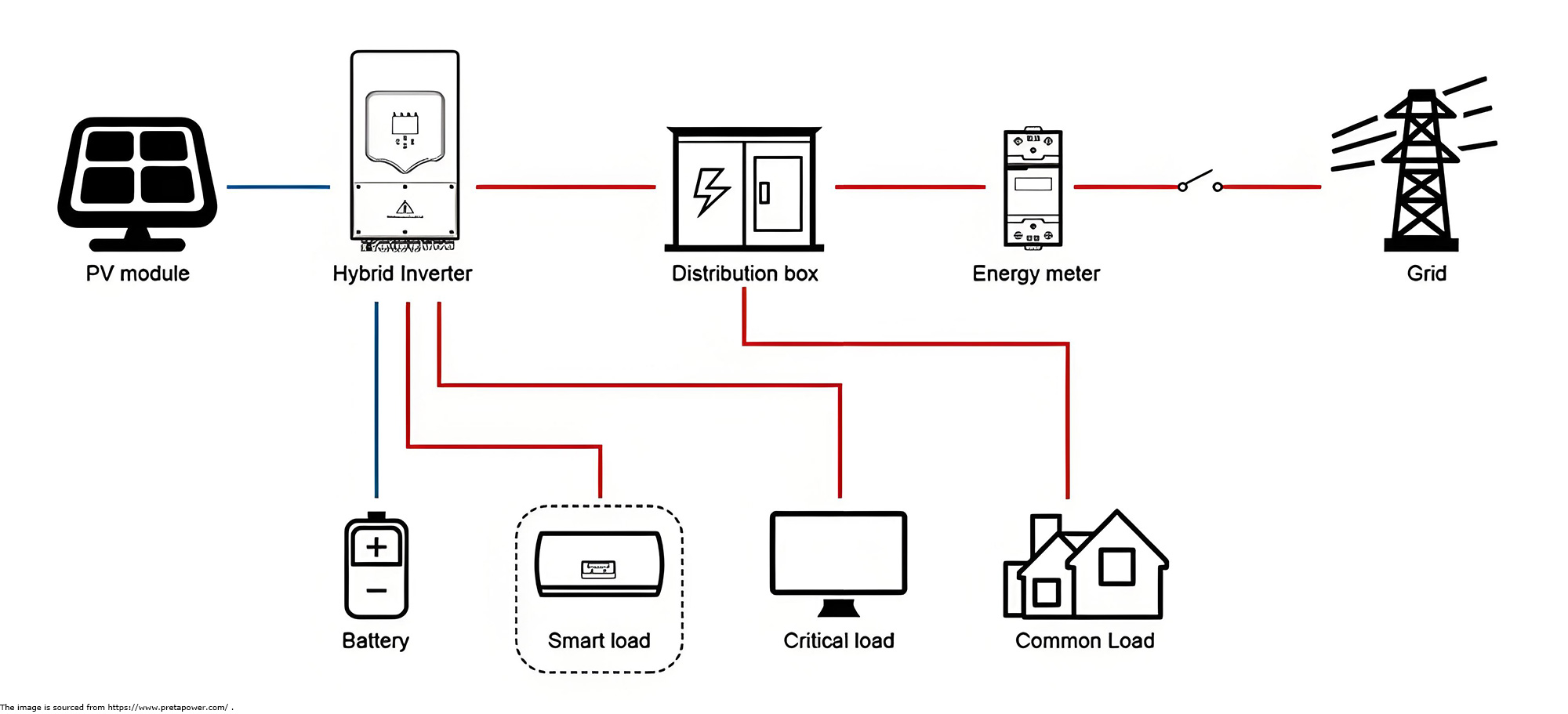

How does a 7kw hybrid solar system work?
The 7kw solar system integrates solar power generation, intelligent load management, and grid interaction to provide a reliable and efficient energy solution. By prioritizing critical loads, storing excess energy in the battery, and dynamically allocating power through smart controls, the system ensures optimal energy use and minimizes grid reliance. The energy meter further enhances efficiency by monitoring power flows, enabling cost savings and maximizing the utilization of renewable energy for essential and common household needs.
1. Solar Energy Generation: The PV module converts sunlight into DC (direct current) electricity, which is the initial source of power for the entire solar system.
2. Power Conversion and Management: The hybrid solar inverter receives the DC power from the PV module and converts it into AC (alternating current) power, which is suitable for household appliances and the electrical grid.
3. Critical Load Priority: The hybrid solar inverter prioritizes supplying power to critical loads, ensuring essential appliances (e.g., refrigerators, medical devices) have a continuous and reliable power supply.
4. Battery Storage: Any excess power generated by the PV module that is not immediately needed by the loads is stored in the battery, providing a backup power source for use during periods of low sunlight or high demand.
5. Smart Load Management: The smart load system dynamically allocates power to different loads based on their priority and energy consumption patterns, optimizing overall energy usage and ensuring efficient operation.
6. Power Distribution: The distribution box routes the power from the hybrid solar inverter to different circuits in the home, ensuring that both critical and common loads receive the necessary power.
7. Grid Interaction: The hybrid solar inverter monitors the power balance. If the solar system generates more power than needed, the excess is fed back into the grid. Conversely, if the solar power and battery storage are insufficient, the system draws power from the grid to meet demand.
8. Energy Meter Monitoring: The energy meter tracks the power flowing in and out of the solar system, including power generated by the PV module, power consumed by the loads, and power exchanged with the grid. This data helps in managing energy costs and optimizing system performance.

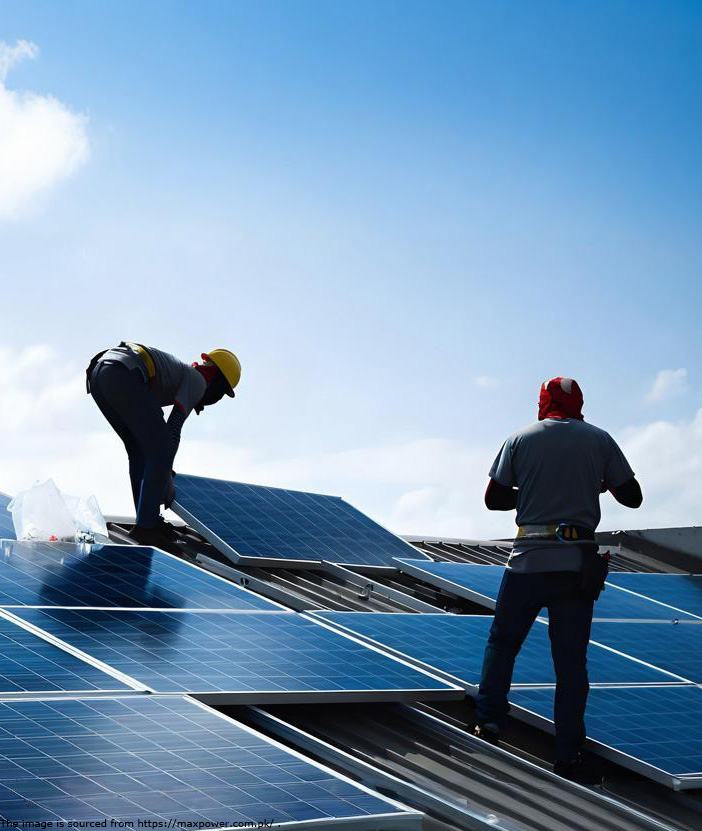

Precautions for Installing a 7kw Solar System
1. Ensure Proper Site Assessment: Conduct a thorough assessment of the installation site to determine the optimal location for maximum sunlight exposure and minimal shading.
2. Check Structural Integrity: Verify that the roof or mounting structure can support the weight of the solar panels and associated equipment.
3. Follow Electrical Codes: Adhere strictly to local electrical codes and safety standards to ensure a safe and compliant installation.
4. Plan Cable Routing: Plan the routing of electrical cables to minimize energy loss and avoid potential hazards, ensuring neat and secure connections.
5. Install Grounding and Lightning Protection: Implement proper grounding and lightning protection measures to safeguard the solar system and building from electrical surges.
6. Test System Components: Thoroughly test all components, including solar panels, solar inverters, and batteries, to ensure they are functioning correctly before finalizing the installation.
7. Monitor and Maintain: Set up a monitoring system to track performance and schedule regular maintenance to keep the solar system running efficiently over its lifespan.
7kw Solar Power System FAQ
A 7kw solar system typically consists of 14 units of 550watt solar panels, or 18 units of 400watt solar panels. This configuration allows for efficient power generation, with the choice of panel wattage often influenced by available installation space and budget considerations. Higher wattage panels, like the 550watt option, can maximize energy output in a smaller footprint, making them ideal for installations with limited roof area.
The 7kw solar system typically comes standard with a 15kWh battery, which can power a 7kw load for approximately 2 hours. This battery capacity ensures that you have a reliable backup power source for your home or business during periods of low solar generation or grid outages.
A 7kw solar system can still be effective in areas with frequent cloudy weather, although its performance will be somewhat reduced compared to locations with abundant sunshine. Solar panels can generate electricity even on cloudy days, though the output will be lower. Additionally, integrating energy storage solutions, such as batteries, can help store excess energy produced during sunnier times for use during cloudy periods.
Yes, a 7kw solar system supports remote monitoring and management. Modern systems include features like real-time data tracking and performance analysis, allowing users to manage their solar setup efficiently from anywhere.
Yes, a 7kw solar system is suitable for home use. It can provide ample electricity for larger households or homes with higher energy consumption, covering most or all of their daily energy needs. Additionally, it can help significantly reduce electricity bills and increase energy independence.
