The 8kw solar power system can mainly be used in home with less than 10 people, small companies, hotels, villas and other places where electricity is used. If you don’t need to use the battery as a backup, or rarely use electricity at night, then a grid-tied system is a better choice, and it should be noted that a grid-tied system must have utility power in order to work. It is also possible to work without batteries in off-grid and hybrid systems, or you can calculate the required battery capacity based on the amount of electricity you use at night.
Products Categories
Inquiry Now
8kw hybrid solar energy system with hybrid inverter and energy storage system for home use, over 30 years lifespan.
8kw on grid solar energy system for home use, plug and play design, easy to design, 98.1% efficiency, over 30years lifespan.
12KW on grid solar power system, buy solar energy system from one stop solar warehouse, over 30 years lifespan.

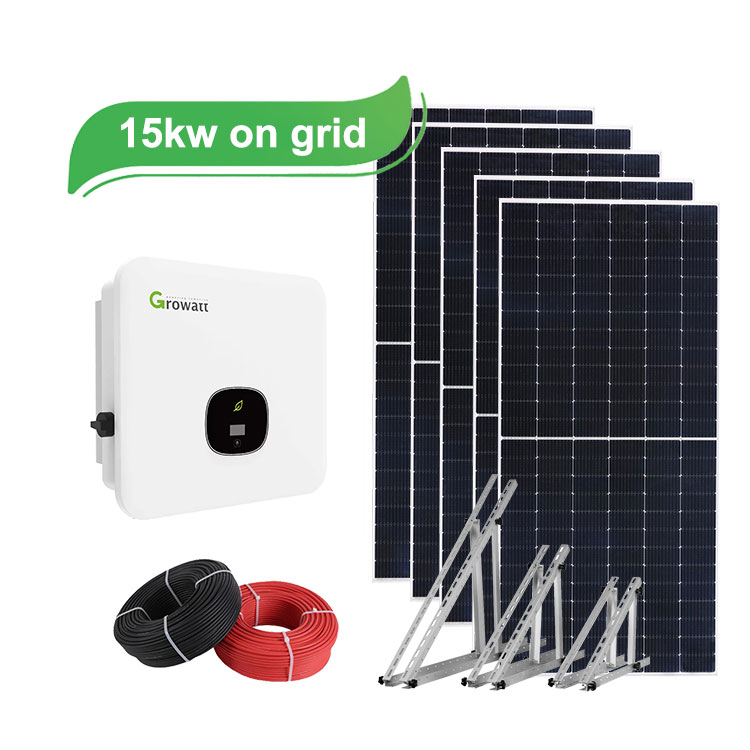

Buy 15 KW on grid solar power system in low price, passive solar energy system, over 30 years lifespan.
How much does a 8kw solar system produce?
A 8kw solar power system generates between 24kWh and 44kWh of electricity per day, The latitude and altitude of the regions where they are located are different, so the amount of solar radiation is different, and therefore the amount of electricity generated is different. The Middle East, Australia, Africa, North America, and Southern Europe all have higher light radiation.
You can refer to the image below to know the peak sunshine hours per day in your area to calculate the amount of power a 8kw system can generate in your area.
For example, if the area is 5kwh per day, then the 8kw can generate 5×8=40kWh per day.
You can also contact us to calculate the PV power generation according to your city.
8kw Solar System Size
The 6kw solar system requires an installation area of 40 square meters (430 square feet), which is determined by the use of 16 solar panels, each with a power rating of 550 watts. To ensure optimal performance and efficient utilization of space, the specific layout and dimensions of the installation area must be carefully designed and calculated following the characteristics of your roof or ground surface.
8kw Solar System Price
Prices for 8kw solar power systems range from $1800 to $4200, depending on whether you need a grid-connected, off-grid or hybrid system, and how much battery capacity you need. You can also contact us to help you customize your PV design.
| Model | Price |
|---|---|
| 8kw on grid solar system | Around 1800USD |
| 8kw off grid solar system | Around 3700USD |
| 8kw hybrid solar system | Around 4200USD |
8kw Solar System Installation
What Can a 8kw Solar System Run
The 8kW solar system is specifically designed to power electrical loads with a total output rate that does not exceed 8kW. It is also suitable for driving motors with a capacity of less than 5 horsepower (HP). This includes a wide range of common household appliances that feature motors, such as air conditioners, washing machines, electric fans, heaters, and hair dryers.
Cable Selection and Wiring Design for an 8KW Solar System
1. DC Cable Selection: Choose UV-resistant and weather-resistant DC cables to connect solar panels, combiner boxes, and inverters. Ensure they comply with standards like IEC62930 or UL4703.
2. Voltage Drop Control: To minimize energy loss, limit the voltage drop of DC cables to 1.5%- 2% of the system output voltage.
3. Cable Cross-Sectional Area: Calculate the required cross-sectional area based on the system current and cable length. For example, a 4mm² copper core cable can be used for a current of 20A within 200 meters in an 8kw solar system.
4. AC Cable Selection: Use PVC-insulated AC cables with a suitable cross-sectional area to handle the solar inverter’s output current.
5. Grounding Cable: Use high-conductivity grounding cables to protect against lightning strikes and overvoltage.
6. Environmental Adaptability: Ensure that cables can withstand temperature variations and, if necessary, select those resistant to extreme temperatures.
7. Wiring Path Optimization: Minimize the distance between solar panels and inverters to reduce voltage drop and improve efficiency.
Energy Storage Solution for 8KW Solar System
1. Battery Capacity: Choose a battery capacity of 20kWh or more to cover nighttime and cloudy day usage.
2. Battery Type: Lithium-ion batteries are preferred due to their high efficiency, long life, and compact size.
3. Smart Management: Use a Battery Management System (BMS) to monitor and optimize battery health and performance.
4. Integration with Inverter: Ensure seamless integration with the inverter for efficient charge/discharge cycles.
5. Safety and Compliance: Select batteries that meet safety standards to ensure reliable and secure operation.
8kw Solar Power System FAQ
The 8KW solar power system consists of 16 pieces 550watt, 18 pieces 450watt, or 26 pieces 300watt solar panels. Currently, the most commonly used solar panel is the 550watt.
The 8kw solar system is suitable for medium to large households or small businesses, especially those with high electricity demand. It can meet the daily electricity needs of most households and even generate excess electricity for storage or feedback to the grid when there is sufficient sunlight.
The cost of an 8kw solar power system ranges from $1800 to $4200, depending on whether it is grid-connected, off-grid, or a hybrid system, as well as the amount of battery capacity required. If you need a customized PV design tailored to your specific needs, feel free to contact us for assistance.
This depends on the user’s electricity needs and usage scenarios. If you want to use solar power at night or during power outages, or if you want to achieve energy self-sufficiency, it is necessary to equip energy storage batteries. If these requirements are not met and only used for daytime power supply, energy storage batteries can be omitted.
1 or 2 units 15kWh batteries will be sufficient, if the power usage is higher at night this will require more batteries to be added. Calculate the capacity and number of backup batteries based on the nighttime usage.
