Solar Power System Manufacturers
As we all know that one and a half hours of sunlight hitting the earth is enough to support the world’s energy usage for a year, so we have an inexhaustible supply of solar power energy. With solar systems, we can convert this energy into the electricity we need for our lives and society, which is conducive to the early realization of the vision of zero global carbon emissions.
JMHPOWER, as a solar power system supplier, we offer the equipment needed for a complete solar power system in all sizes and types for you to choose from. Of course, we can also help you design and customize your solar system according to the actual needs of your project.
Products Categories
Inquiry Now
Choose the Types of Solar Power System
The main types of solar power systems are on grid systems, off grid systems and hybrid solar systems. They can be subdivided into the following five types according to their application areas and sizes: portable solar systems, small DC solar systems, distributed solar systems, and solar plant systems.
On grid systems: The solar provides the main power supply, and when the solar is not sufficient, the utility supplies power to the load as a supplement. If the solar output is greater than the load, the excess power is fed back into the utility system.
Off grid system: The solar provides the main power supply, and when the solar output is greater than the load, the excess power is deposited in batteries to provide power to the load at night or when the sun is not abundant. The off-grid inverter also has a utility input port, which supplements the load when the PV and battery power is insufficient for the load.
Hybrid system: Combines the characteristics of grid-connected and off-grid. solar, battery and utility can all supply power to the load, while the excess power can also be fed back into the utility system.
Portable solar system: consists of portable solar panels and portable power supply. Light weight, small size, easy to install, convenient to carry. Widely used in outdoor, camping, RV and other scenes.
Small DC solar system: the output power of solar panels is directly used for DC loads through charge controllers, often used in solar streetlight, garden lights, monitoring, solar water pumps, PV DC air conditioners, traffic signals and so on.
Distributed solar system: the power generated by photovoltaic panels is applied to AC loads through photovoltaic inverters, which is also the most widely used system, such as household photovoltaic systems, industrial and commercial photovoltaic systems, schools, hospitals, factories, enterprises, parking plants, fisheries, animal husbandry, solar farms, broadcasting and communication stations.
Solar plant system: mainly large-scale power stations, mainly to the city power, community to provide power supply, is one of the main sources of urban electricity.
cheap 12kw hybrid solar power system with battery storage cost, 3 phase output, over 30 years lifespan.
50kw off grid solar power energy system project is suitable for parking lot charging station, industrial and mining enterprise, school, factory use.
20kw hybrid solar system for sale, generate 70kwh to 100kwh per day, for commercial use, feedback and sell surplus electricity power to grid
60kw 70kw 80kw 90kw Solar Power System, high efficiency, customized design, over 30 years lifespan
cheap 3000 watt 3kw off grid solar system price from Chinese supplier, home delivery service, 25 years warranty, all in one package, easy to install.
8kw hybrid solar energy system with hybrid inverter and energy storage system for home use, over 30 years lifespan.
100kw on grid connected solar pv system for industrial and commercial rooftop projects with lowest cost.
buy all in one 4 kw off grid solar power system from Chinese supplier directly, home delivery service, over 30 years lifespan
12KW on grid solar power system, buy solar energy system from one stop solar warehouse, over 30 years lifespan.
Components of Solar Power Generation System
The components of a solar power system mainly include solar panels, solar inverters, storage batteries, solar mounts racking, cables, AC distribution boxes, AC and DC protection switches, monitoring systems, etc.
Solar panels: convert solar energy into electricity and provide the main electrical support for the system. They are one of the most important parts of the system.
Solar inverter: Converts the DC power generated by the solar panels into AC power, which is suitable for the demand of the power equipment and the demand of the power grid. It is the core component of the solar system.
Energy storage battery: The excess electricity generated by the solar panels is deposited into the storage battery, which supplies power to the load at night, greatly providing energy utilization efficiency, and is often equipped in off-grid and hybrid systems.
Solar mounting racking: Installs and fixes the solar panels, adjusts and fixes the tilt and orientation of the solar panels to an optimal state, and improves the power generation efficiency.
Cables: AC and DC cables are the electrical transmission components of the entire system and are one of the essential components of the system.
AC Distribution Box: It distributes the solar power output from the inverter to different power-using equipment, ensures the safety of important load equipment, and has the function of circuit shunt.
AC and DC protection switch: It avoids over-voltage, over-current, fire, short circuit and other safety hazards, and protects the safe operation of the system.
Monitoring system: Cloud monitoring system can monitor the solar system remotely in real time, the same monitoring and management. It is an essential component in large-scale PV power plants. Small photovoltaic power plant can be monitored through wifi on the cell phone or computer.

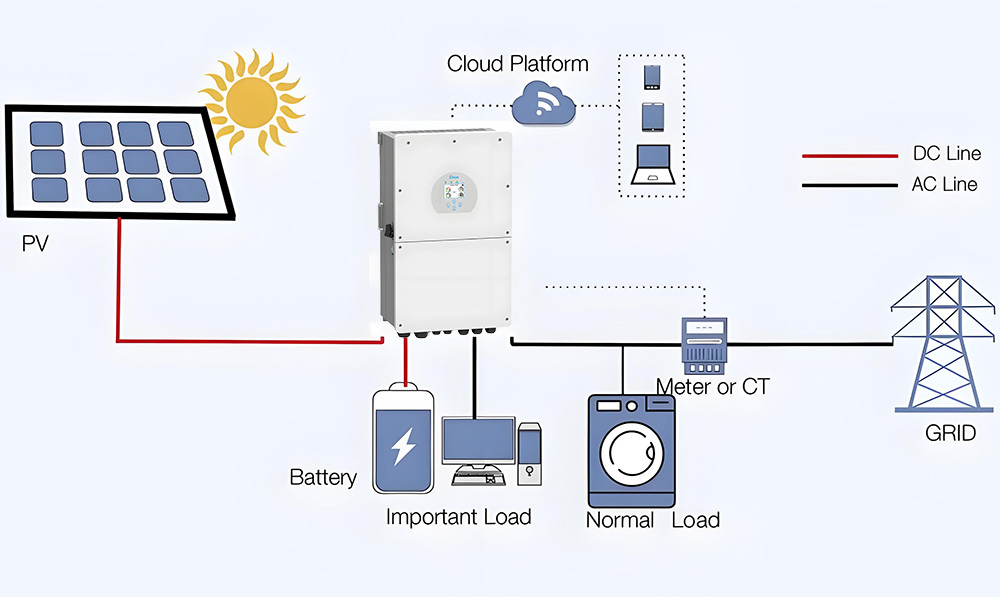

How does solar power work?
A solar power system works by converting sunlight into electricity through solar panels. These panels are made of semiconductor materials, typically silicon, which generate direct current (DC) electricity when exposed to sunlight. The DC electricity is then converted to alternating current (AC) by an inverter, making it compatible with standard electrical grids and appliances. The system can be grid-tied to feed excess power back to the grid or equipped with batteries to store energy for use during the night or on cloudy days.

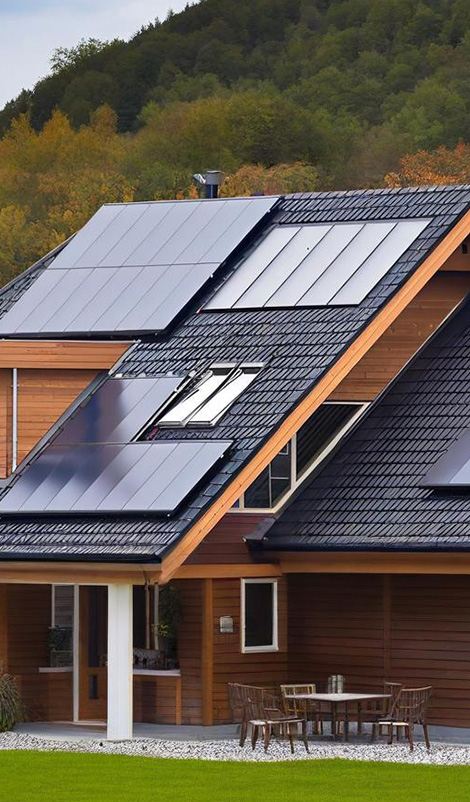

Installation Conditions for Solar Power Systems
1. Adequate sunshine: The installation site should have good sunlight conditions to ensure sufficient sunlight exposure time every day to ensure the power generation efficiency of the system.
2. No obstructions: Trees, buildings, and other obstructions should be avoided around to avoid affecting the light area and intensity of the solar panels.
3. Appropriate orientation and angle: Solar panels usually face south in the northern hemisphere and north in the southern hemisphere. The installation angle is adjusted according to the local latitude to maximize the received solar radiation.
4. Structural bearing capacity: The installation surface (roof or ground) needs to have sufficient strength to withstand the weight of solar modules and support systems, as well as wind and snow loads.
5. Electrical connection safety: The installation location should be easy to connect with the existing electrical system, ensuring the safety, standardization, and compliance with local electrical standards of the electrical circuit.
6. Good ventilation and heat dissipation: There should be good ventilation conditions around the battery panel and energy storage equipment to avoid affecting performance and lifespan due to equipment overheating.
7. Waterproof and moisture-proof measures: The installation location should be treated with waterproof and moisture-proof measures to prevent rainwater infiltration or damage to the equipment caused by humid environments.
8. Easy maintenance and repair: The installation location of the system should be convenient for technical personnel to carry out daily maintenance and troubleshooting, ensuring long-term stable operation.
9. Compliance with local regulations: Installation must comply with local building, fire, power access, and other regulatory requirements and complete relevant approval procedures.
10. Environmental adaptability: The installation site shall avoid extreme environmental impact, such as strong wind, rainstorms, high temperature or low temperature, etc. Protective measures shall be taken when necessary.

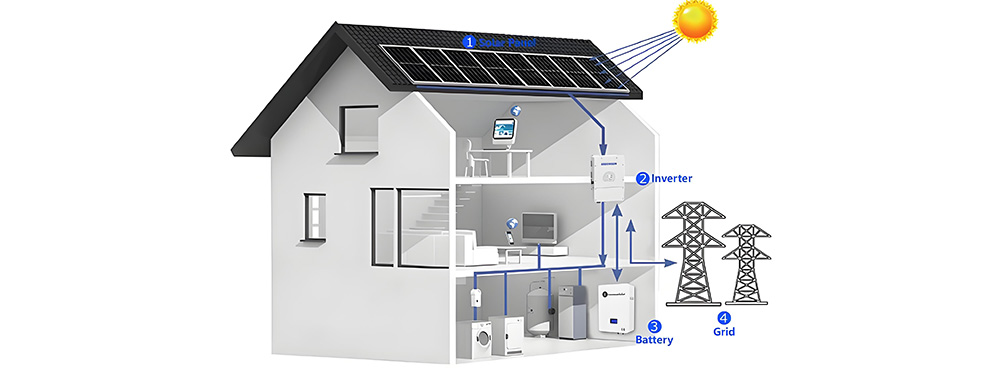

Advantages and Disadvantages of Solar Power Systems
Advantages:
1. Clean and eco-friendly: Solar energy is a clean energy source that does not produce greenhouse gas emissions during use, making it environmentally friendly.
2. Save electricity costs: After installation, it can significantly reduce electricity expenses, and in the long run, the saved costs can offset the installation costs.
3. Energy independence: Reduce dependence on traditional power grids, especially suitable for remote areas or places with unstable power grids.
4. High flexibility: Different scales of systems can be selected according to needs, suitable for various scenarios such as homes, businesses, and industries.
5. Energy storage potential: With energy storage equipment, excess electricity can be stored, achieving 24-hour power supply.
6. Long service life: The service life of solar panels can usually reach several decades, with high long-term investment returns.
7. Strong scalability: The system can be expanded according to future needs, adding more battery boards or upgrading devices.
8. Increasing property value: Installing solar energy systems can enhance the attractiveness and market value of the property.
9. Policy support: Many countries and regions provide subsidies, tax incentives, or loan support to reduce installation costs.
Disadvantages:
1. High initial investment: The upfront cost of installing a solar energy system is high, including equipment and installation expenses.
2. Weather dependent: Power generation efficiency is greatly affected by weather, and power generation will significantly decrease on cloudy or rainy days.
3. High space requirements: Sufficient space is needed to install solar panels, and insufficient roof area may limit the system’s scale.

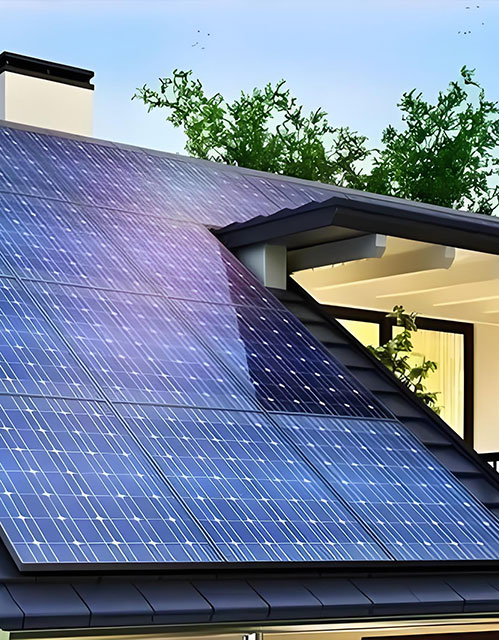

Solar Power System Cost
The cost of a solar power system is from 0.185USD/watt to 0.553USD/watt. It should be noted that because the cost of workers varies from region to region around the world, the cost of installation can vary greatly and is not included here.
The cost of the system is mainly differentiated by whether or not it contains an energy storage battery. In the case of a grid-connected system without storage batteries, the system is simple and requires fewer components, with the main costs being the solar panels, the solar racking, and the solar inverter. If it contains storage battery, it is off-grid and hybrid system, in addition to the above- mentioned components, there is also the cost of storage battery, which will account for a large part of the system cost, according to the actual needs of the project, you can choose the appropriate capacity of the storage battery.
A rough estimate of the system cost is 0.18USD/watt for a grid-connected system, 0.51USD/watt for an off-grid system, and 0.55USD/watt for a hybrid system. it is important to note that the cost of photovoltaic panels, and lithium-ion batteries fluctuates all the time, so the cost of the system is not fixed. To calculate the cost of your solar system, please contact us.
Solar Power System Kit FAQ
To set up a solar power system, you need solar panels, an inverter, mounting hardware, and, optionally, batteries for storage. You’ll also need to choose a sunny location, obtain necessary permits, and ensure proper electrical connections to either the grid or a standalone system.
A PV system does not need batteries to work. It can generate electricity directly from sunlight and feed it into the grid (on grid system). However, batteries are necessary for storing excess energy if you want to use the power during the night or in off-grid systems.
Whether a solar power system is suitable for all houses depends on the specific conditions and surrounding environment of the house. Generally speaking, most houses can be equipped with solar power systems, but factors such as roof orientation, area, strength, and obstruction need to be considered.
The best solar system depends on your needs. Grid-tied systems are great for cost savings and simplicity. Off-grid systems offer independence for remote areas. Hybrid systems provide reliability with grid connection and battery backup. Choose based on your energy needs, location, and budget.
Cleaning is an important part of maintaining solar power systems, and regular cleaning can remove dust and dirt, improving power generation efficiency. It is generally recommended to clean once a year.
