Electric vehicles are becoming a vital part of our lives as a green travel option. Alongside them, various EV chargers have emerged. These chargers serve as “energy refueling stations” for EVs, providing essential support for their range. So, what are the characteristics of different levels of EV chargers? The Difference Between Level 1 2 3 EV Chargers is worth exploring in detail.

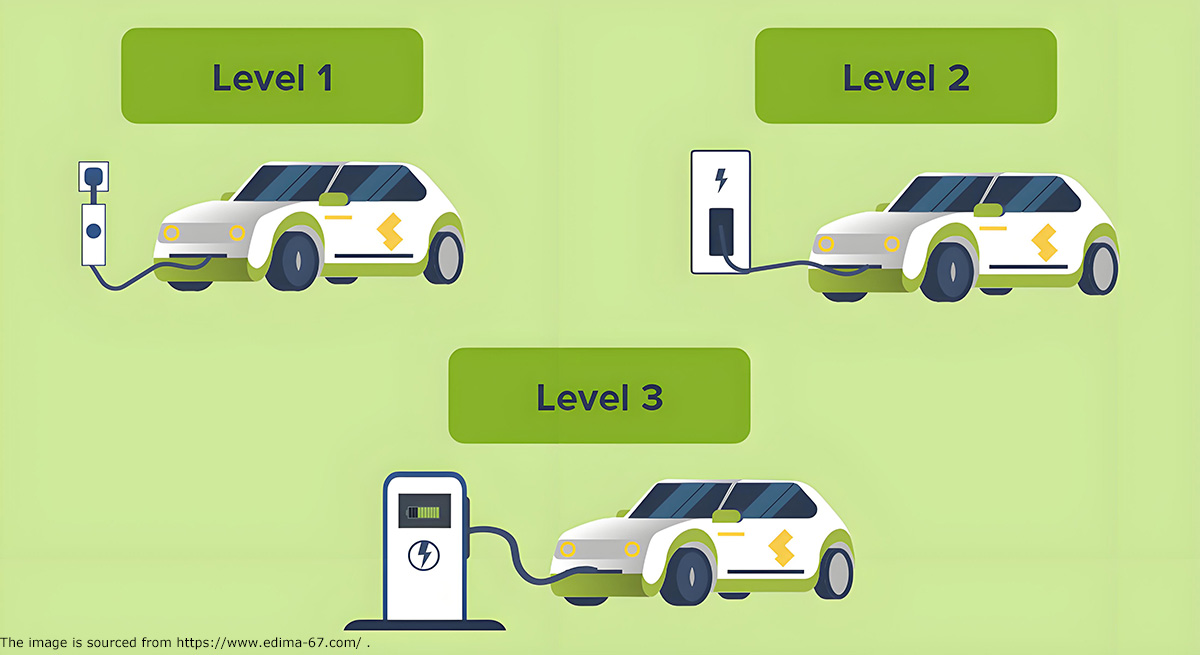

1. Different Levels of EV Chargers
1.1 Level 1 EV Chargers
Level 1 EV chargers, often called “trickle chargers,” use standard 120V AC outlets. Their power output ranges from 1kW to 3kW. These chargers are highly convenient because they can be plugged into almost any standard power outlet. Additionally, they are cost-effective, requiring no additional hardware or software.
Example with Nissan Leaf (40kWh battery), it takes about 20 hours to fully charge the Nissan Leaf from empty to full. During each hour of charging, the vehicle gains only about 2 to 5 miles of range. Therefore, Level 1 charging is fully sufficient for users who drive less than 30 miles per day (for example, a round-trip commute of 48 kilometers). Moreover, this setup requires no modifications to the home electrical system.
However, their charging speed is relatively slow. Specifically, they add only about 2 to 5 miles of range per hour, which may take up to 20 hours for a full charge. As a result, they are less practical for users with longer daily driving distances.
1.2 Level 2 EV Chargers
Level 2 EV chargers operate on 240V power and dedicated circuits, with currents that can reach up to 60 amps. This results in a significantly faster charging speed compared to Level 1 chargers. Specifically, they can add 10 to 20 miles of range per hour, allowing an EV to be fully charged within 3 to 8 hours. As a result, this makes them ideal for overnight charging.
Additionally, Level 2 chargers often come equipped with smart software that can adjust power levels and manage charging fees efficiently. However, they are more expensive than Level 1 chargers. The market offers a variety of Level 2 charger options, most of which use the SAE J1772 connector or Tesla’s proprietary charging cable and adapter.
According to the U.S. Department of Energy, about 80% of EV charging happens at home. Among these cases, the vast majority use Level 2 chargers. For instance, a Tesla Model 3 has a 75kWh battery. Using a 7.2kW Level 2 charger, it takes about 6 hours to charge the battery from 20% to 80%. As a result, Level 2 charging is about 5 to 6 times faster than Level 1. In terms of cost, a home Level 2 charger costs between 300 and 700 for hardware. Installation fees range from 200 to 1,000.
1.3 Level 3 EV Chargers
Level 3 charging, also known as fast charging, uses DC charging. This allows for the delivery of much higher power, making it suitable for service stations and fleet parking lots where vehicles stop for short periods. Specifically, Level 3 charging stations can provide up to 350 kW of power, capable of fully charging an EV in approximately 30 minutes. As a result, this makes them ideal for long-distance travel and rapid energy replenishment.
2. The Difference Between Level 1, 2 & 3 EV Chargers
| EV Charger Types | Level 1 | Level 2 | Level 3 / DCFC |
| Voltage | 120V | 240V | 400-1000V |
| Output Power | 1-3kW | 3-22kW | 50-350kW |
| Type of Current | AC | AC | DC |
| Average Charge Time (Empty to Full) | 11-20h | 3-8h | 30-60min |
| Connector Type | J1772 | J1772 | CCS, CHAdeMO, Tesla (NACS) |
| Estimated Range Added per Hour | 2-5 miles | 10-20 miles | 180-240 miles |
| Typical Charging Cost (per kWh) | ~$0.13 (home) | ~0.13(home), 0.13(home), 0.20-0.30 (public) | ~$0.30-0.45 (public) |
| Battery Degradation Impact | Very low | Low | Medium to high (~10-15% increase with frequent use) |
| Example Vehicle Types | PHEVs, small BEVs (<20kWh) | All mainstream BEVs (20-100kWh) | BEVs supporting fast charging |
| Installation Complexity | None (plug and play) | Requires 240V outlet or dedicated circuit | Requires DC charger + grid upgrade |
| Ideal Usage Scenarios | Home | Residential & commercial | Public fast charging stations, highway rest areas |
3. Summary
After a thorough analysis of the different levels of EV chargers, it is clear that they are not merely replacements for one another. Instead, they complement each other, each serving distinct purposes.
Basic support for everyday EV use is provided by Level 1 chargers, which are highly popular and economical. Charging efficiency and smart management are enhanced by Level 2 chargers, meeting users’ needs for faster charging and convenient management. As for Level 3 chargers, their ultra-high charging power enables long-distance travel and rapid energy replenishment for EVs.
In practice, users should select the appropriate charger based on their driving habits, charging environment, and vehicle characteristics to maximize the efficiency of EV usage.
Common Questions
1. Can Different Levels of EV Chargers Be Used Interchangeably?
Different levels of EV chargers can be used interchangeably if the interfaces are compatible. However, in reality, this is limited by the vehicle interface type and charging protocol. For example, Level 1 and Level 2 AC chargers have relatively unified interfaces and can generally be used interchangeably if the vehicle is equipped with the corresponding interface. In contrast, Level 3 DC fast chargers have diverse interfaces and are less compatible with vehicles.
2. Is the Installation Process of Different Levels of EV Chargers Complicated?
The installation process of different levels of EV chargers varies in complexity. Level 1 chargers are the simplest to install. You just need to plug the vehicle’s charging cable into a standard 120V home outlet, with no additional installation needed.
Level 2 chargers are more complex, requiring professional electricians and potentially involving the installation of a 240V outlet or upgrading home electrical circuits. Level 3 chargers are the most complex, typically used in public charging stations and requiring extensive power infrastructure support.
3. How to Quickly Determine Which Charging Pile Is Suitable for My Charging Needs?
To quickly determine the suitable charging pile level, consider charging time, usage scenarios, and cost. If your daily commute is short and you primarily charge overnight, Level 1 or Level 2 chargers are appropriate, with Level 2 chargers offering faster charging. For long-distance travel where rapid recharging is necessary, Level 3 chargers are the best choice, despite their higher usage costs.
